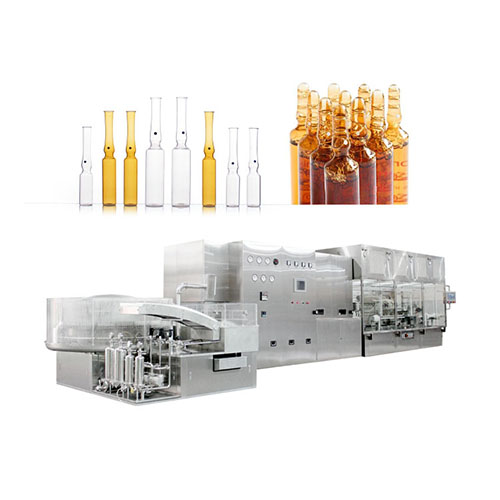

Ampoule Washing Sterilizing Filling And Sealing Production Line

Ampoule Washing Sterilizing Filling And Sealing Production Line is composed by QCL-160 Vertical Ultrasonic Washing Machine, SZA-620 Hot Air Circulation Sterilizing Drying Machine and AGF Ampoule Filling and Sealing Machine. It is divided into cleaning zone, sterilizing drying zone, filling and sealing zone.
  • Product Description
  • Specification Parameter
  • Product Application
  • More Details

Product Description

Ampoule Washing Sterilizing Filling And Sealing Production Line is composed by QCL-160 Vertical Ultrasonic Washing Machine, SZA-620 Hot Air Circulation Sterilizing Drying Machine and AGF Ampoule Filling and Sealing Machine. It is divided into cleaning zone, sterilizing drying zone, filling and sealing zone.

This line is a new type of ampoule production line which adopted the advanced international technology, combined several LTPM CHINA patents. The line can work together as well as independently.

Specification Parameter

Vertical Ultrasonic Washing MachineUltrasonic power 800W
2141*2247*1297mm
2800kgs
Hot Air Circulation Sterilizing Drying MachineTemperature for sterilizing 280℃~320℃
4400*1550*2270mm
3500kgs
Ampoule Filling and Sealing MachineFilling speed 9600-18000 pcs/hour
4026*1600*2300mm
3200Kg
Filling Precision≤±1.5%
Broken Bottles Rate≤0.1%


Product Application

Product Application

Glass Ampoule

Vertical Ultrasonic Washing Machine

More Details

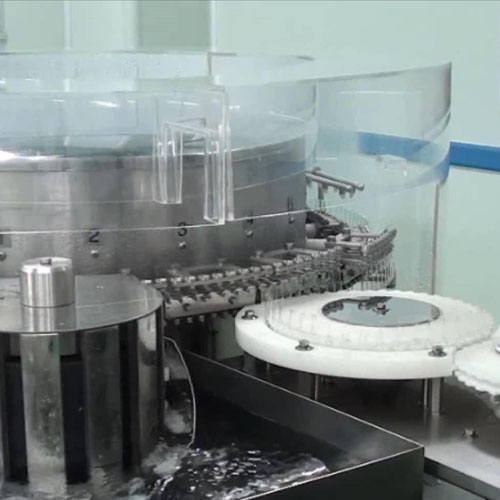

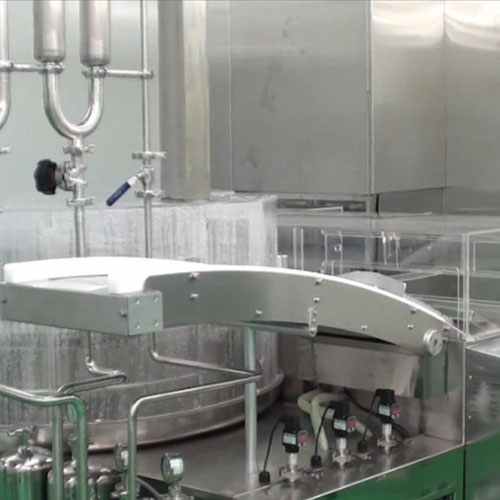

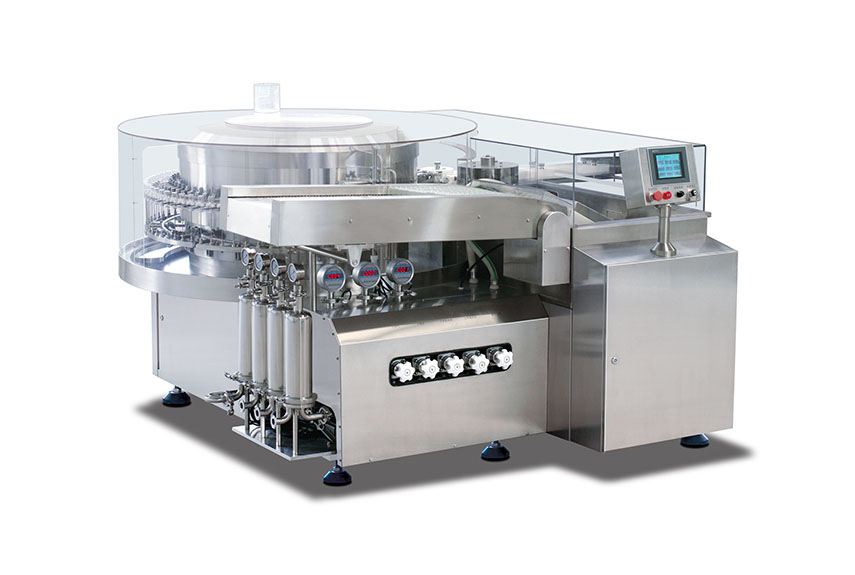

Vertical Ultrasonic Washing Machine
Vertical Ultrasonic Washing Machine consists of infeeding section,ultrasonic section and final washing section.
Containers go through these sections for completion of the whole washing process which includes 1 station for ultrasonic washing, 6 stations for interior and 2 stations for exterior cleaning.
Hot Air Circulation Sterilizing Drying Machine

More Details

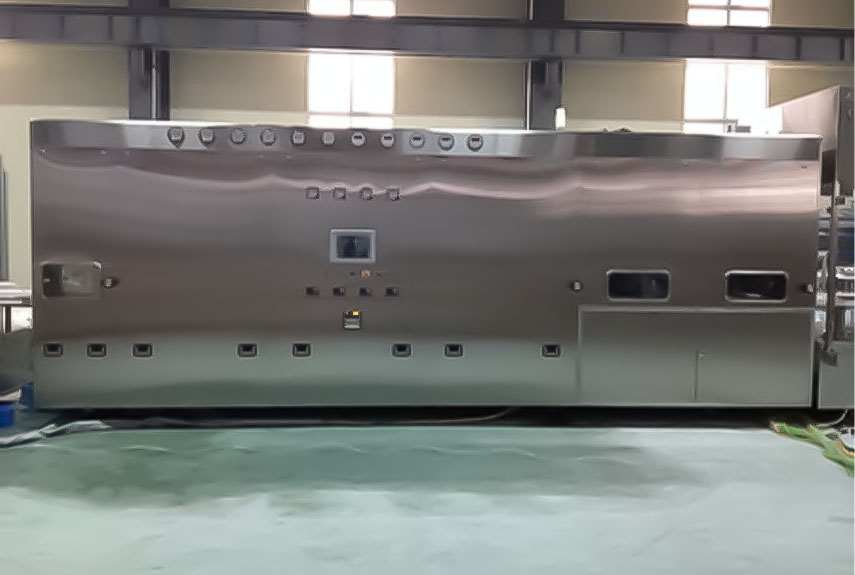

Hot Air Circulation Sterilizing Drying Machine
The machine using electric heating as the heat energy, the energy generated by the electric heating elements, the use of hot air circulating fan oven heating section of Class 100 clean air inside the bottle of convective heat exchange cycle, the required sterilization of the bottle the heat transfer, and continuous supply of fresh air, while eliminating air or saturated humid chamber heat, so as to achieve drying of the items are sterilized bottles.
Ampoule Filling and Sealing Machine

More Details

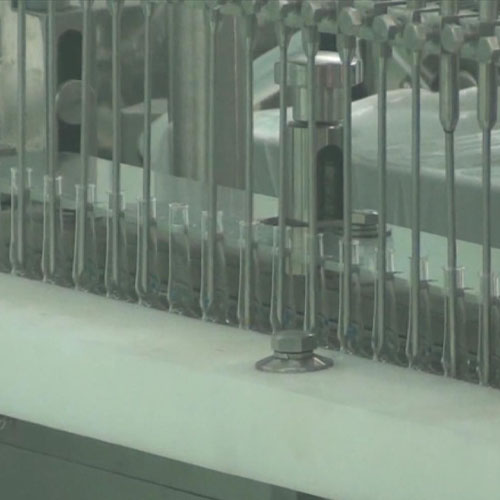

Ampoule Filling and Sealing Machine
This machine is stepping transmission system and platform structure. Every time a set of step-ampoule were sent to the various processes and complete separation of bottle feeding, before nitrogen (option), drench, after nitrogen (option), preheating, drawing sealing and out of the bottles automatically. It is applicable to fill and seal of injection under aseptic conditions.
×
