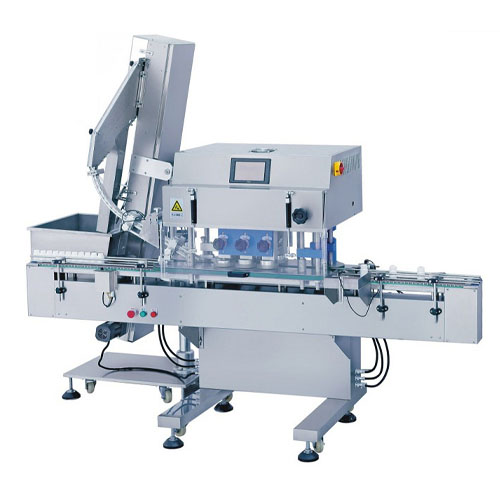

Automatic Capping Machine

The machine adopts three groups of friction rollers to screw caps.

  • Product Description
  • Specification Parameter
  • Product Application
  • More Details

Product Description

The machine adopts three groups of friction rollers to screw caps.

Screwed caps are not easily damaged by the screwing unit. And if caps are not screwed tightly or tilted, they will be found and rejected automatically.

The screw capper is available for various bottles and its changeover is fast and easy.

The machine overthrows conventional means of arranging cap by electromagnetic oscillation but arranges caps pneumatically to avoid noise pollution and reduce electric power consumption.

It also provides international brand PLC controls, variable frequency controls and photoelectric controls.

The machine is incorporated with the device of arranging and lifting cap and a big capacity of cap hopper, so less cap feeding times reduces labor intensity.

The machine conforms to the requirements of GMP completely.


Specification Parameter


Model Name

LTCG-160

Bottle Size

20-300ml

Output

50-150 bottles/min

Diameter of capsφ20-65 mm
Diameter of bottlesφ20-120 mm
Power supply220V 60Hz
Power1.5KW
Overall dimensions2600×800×1750 mm


Product Application

Product Application

The machine adopts three groups of friction rollers to screw caps.

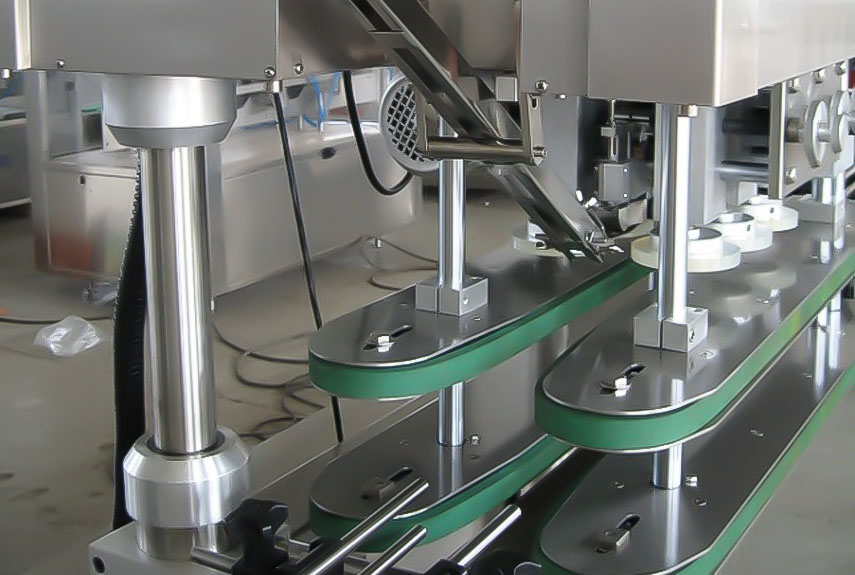

Cap Guiding Way

More Details

Cap Guiding Way

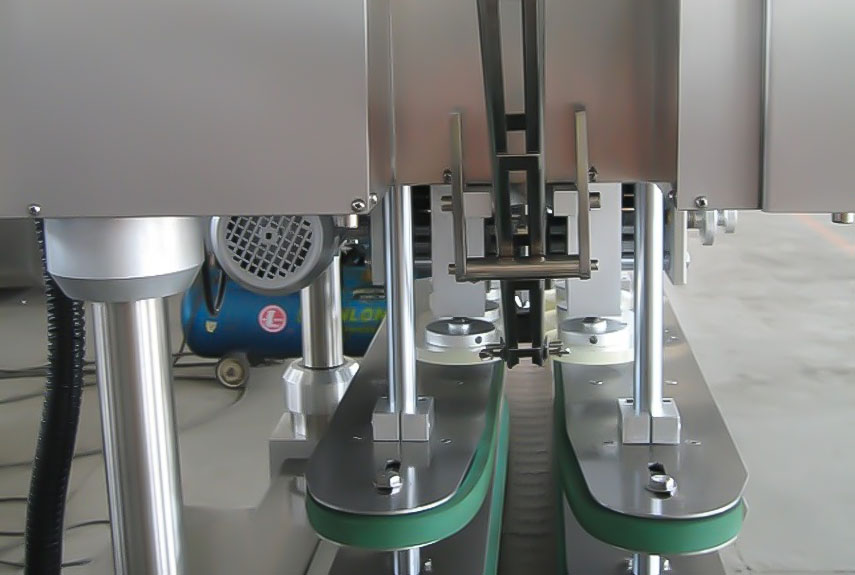

Bottle Fixing Belt

More Details

Bottle Fixing Belt

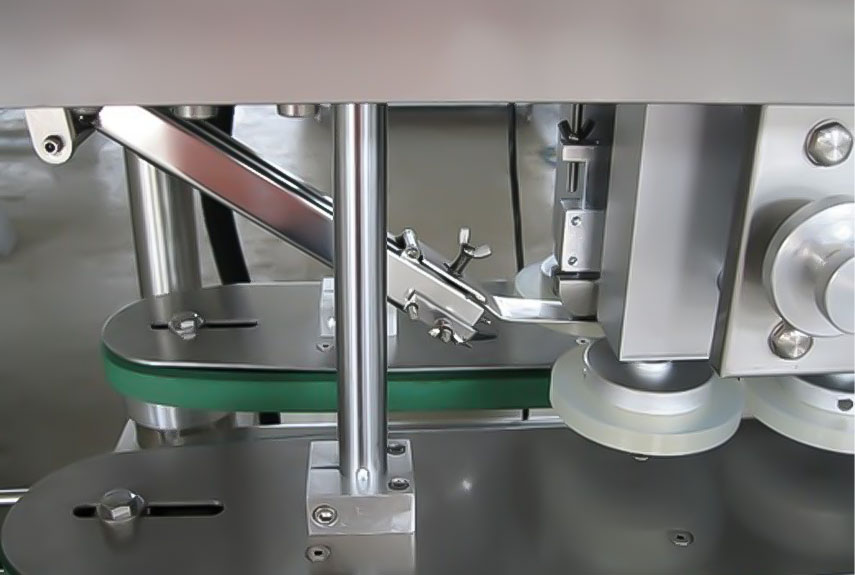

Capping Rotation Roller

More Details

Capping Rotation Roller

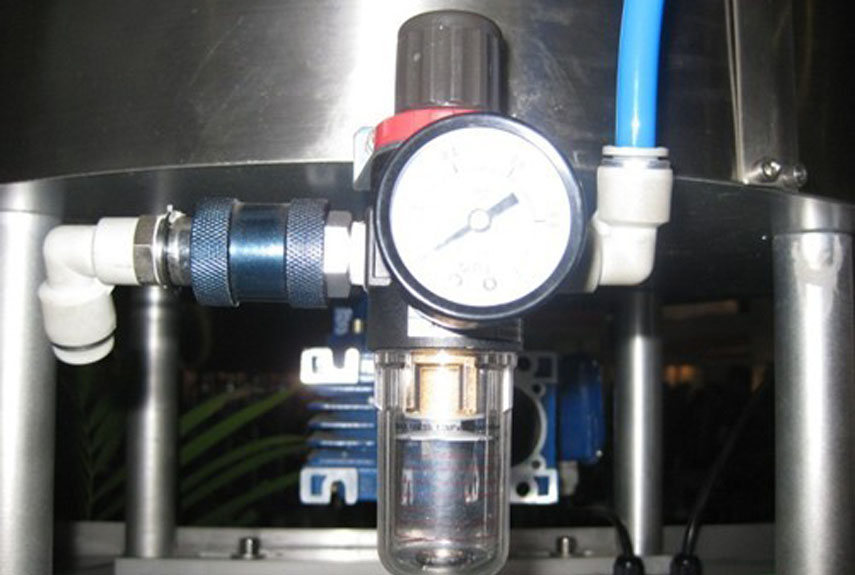

Air Filtering Device

More Details

Air Filtering Device
×
