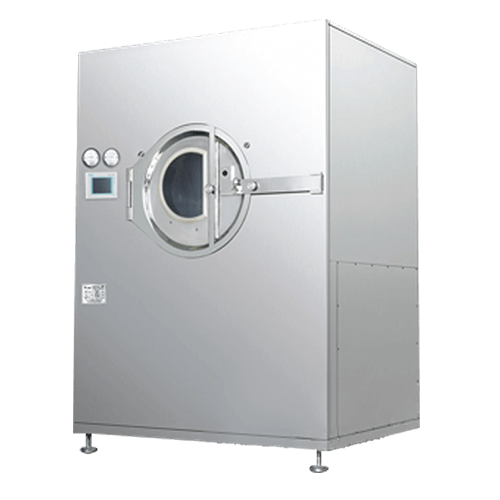

BG-B series Non-Pefopated Drum Film Coating Machine

BG-B series Non-Pefopated Drum Film Coating Machine

The BG-B series Non-Peforated Drum Film Coating Machine is a coating equipment for organic film coating, water-soluble film coating, slow and controlled release coating, drop pill coating, sugar coating, and chocolate and candy coating of tablets, pills, candies, etc.

The coating drum has a non porous structure, which can be used to Coated with pistils larger than 0.6mm, it has a wide adaptability.

Product Description
Specification Parameter
Product Application
Product Feature
More Details

Product Description

The coating drum has a non porous structure, which can be used to Coated with pistils larger than 0.6mm, it has a wide adaptability.

Different materials are equipped with different wind propellers, which can be embedded or removed from the materials according to the process requirements

Specification Parameter

Model	BG-350B	BG-150B	BG-75B	BG-10B
Working capacity (kg/Batch based on bulk density of 1)	350	150	75	10
Speed adjusting range of coating drum(rpm)	2-11	3-15	4-19	6-30
Regulating range of hot air temperature(°C )	Normal temperature ~80°c
Filtration accuracy of hot air( μm)	0.5 μm( 100000 grade )
Dimension(m)	1.74×2.5×2.3	1.45×2.2×2.1	1.25×2×1.9	0.9×1.6×1.65
Weight( kg )	2000	1100	700	560

Product Application

Ideal for coating materials requiring precise handling and adaptable coating conditions, such as sensitive or larger-sized products.

Product Feature

1

Non-perforated drum structure ideal for coating particles larger than 0.6mm.
2

Wide adaptability for different materials, with specialized wind propellers tailored to process requirements.
3

Easy to switch between embedded or removable propellers for material handling.

More Details

Agitating and Holding Tank

Designed to maintain a homogeneous coating solution throughout the process. The tank includes a high-performance agitator to prevent sedimentation and ensure uniform distribution of coating materials. The holding capacity can be customized for various batch sizes.

More Details

Outboard Discharging Device

Facilitates the rapid and efficient discharge of coated materials. Positioned externally for easy access and minimal contamination risk, it significantly reduces downtime between batches.

More Details

Built-in Discharging Device

Integrated within the coating machine, this device ensures a seamless transition of coated products from the coating drum to the collection unit. Its compact design optimizes space without compromising functionality.

More Details

Coating Paddle

Engineered to provide even distribution of the coating material over the product surface. The paddles are adjustable for different coating techniques, ensuring a consistent and high-quality finish.

More Details

Spray Gun

Equipped with precision nozzles for fine and uniform spraying of coating solutions. The spray gun is capable of handling a variety of coating materials, ensuring minimal wastage and consistent application.

BG-B series Non-Pefopated Drum Film Coating Machine

Product Description

Specification Parameter

Product Application

Product Feature

More Details

Agitating and Holding Tank

More Details

Outboard Discharging Device

More Details

Built-in Discharging Device

More Details

Coating Paddle

More Details

Spray Gun
