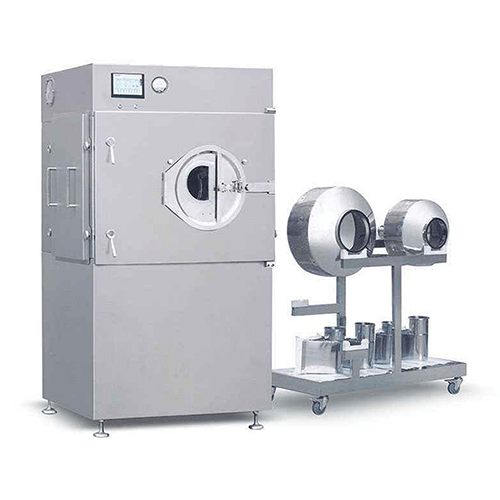

BG-E series Drum Changeable Film Coating Machine

BG-E series Drum Changeable Film Coating Machine

The BG-E series Drum Changeable Film Coating Machine is mainly used in pharmaceutical and food industries.

It is a coating equipment for tablets, pills, candies, etc. for organic film coating, water-soluble film coating, slow-release coating, controlled-release coating, drop pill coating, sugar coating, and chocolate and candy coating.

Product Description
Specification Parameter
Product Application
Product Feature
More Details

Product Description

The BG-E series Drum Changeable Film Coating Machine is mainly used in pharmaceutical and food industries.

It can replace the suitable coating roller according to the amount of coating process batch.The replacement of the coating roller is very convenient and fast.

Specification Parameter

Model	BG-5E	BG-10E	BG-20E	BG-40E	BG-75E
Working capacity (kg/Batch based on bulk density of 1)	5	10	20	40	75
3/2 drums for one machine( kg/batch )	1 3, 5	3, 5, 10	5, 10, 20	20, 40	40,75
Speed adjusting range of coating drum(rpm)	6-30	6-30	6-25	4-21	45403
Regulating range of hot air temperature( °C)	Normal temperature ~80°C
Dimension(m)	0.77×0.72×1.81	0.97×0.9×1.82	1×0.95×1.88	1.12×1.1×1.82	1.25×1.1×1.92
Weight( kg )	400	450	500	500	700

Product Application

Perfect for medium to large-scale production, where different product batches and coating processes are required.

Product Feature

1

Flexible drum-changing mechanism allows quick replacement of coating drums, accommodating different batch sizes.
2

Highly versatile for coating various substances, including organic films, water-soluble films, and controlled-release coatings.
3

Supports a wide range of applications, such as sugar, chocolate, and candy coatings.

More Details

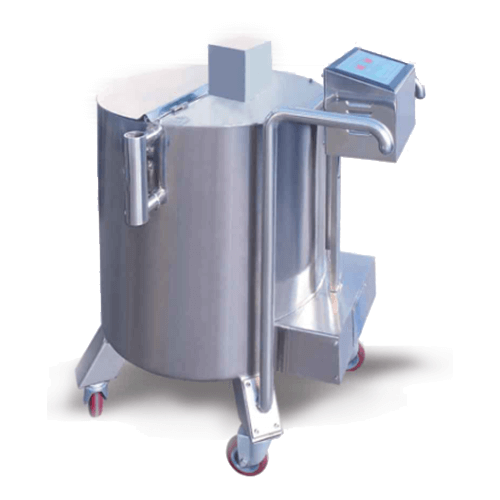

Agitating and Holding Tank

Designed to maintain a homogeneous coating solution throughout the process. The tank includes a high-performance agitator to prevent sedimentation and ensure uniform distribution of coating materials. The holding capacity can be customized for various batch sizes.

More Details

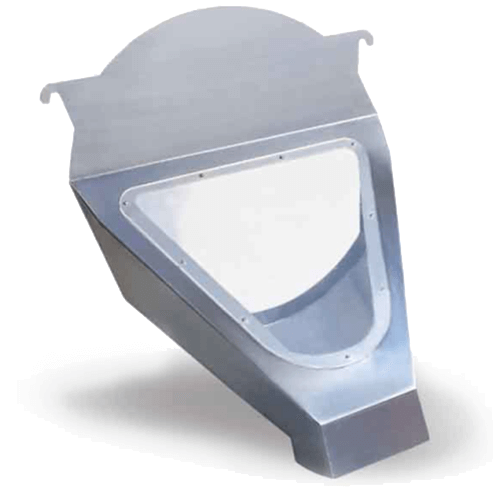

Outboard Discharging Device

Facilitates the rapid and efficient discharge of coated materials. Positioned externally for easy access and minimal contamination risk, it significantly reduces downtime between batches.

More Details

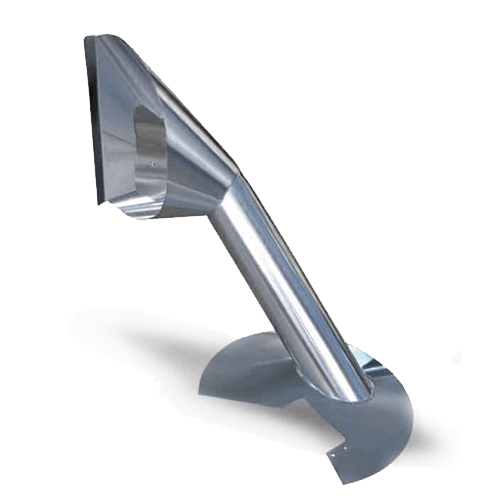

Built-in Discharging Device

Integrated within the coating machine, this device ensures a seamless transition of coated products from the coating drum to the collection unit. Its compact design optimizes space without compromising functionality.

More Details

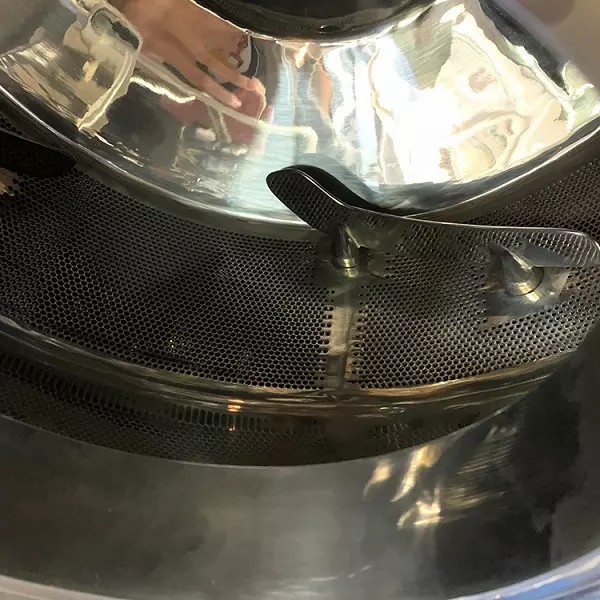

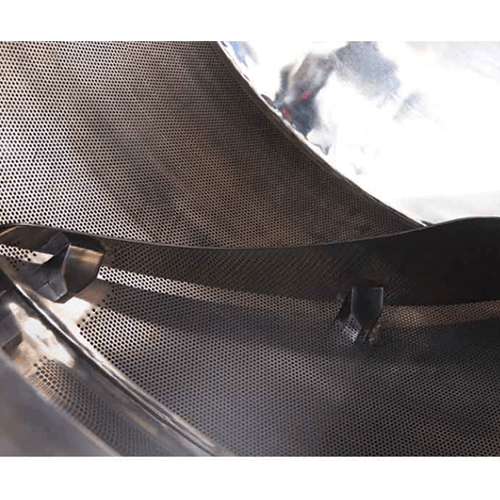

Coating Paddle

Engineered to provide even distribution of the coating material over the product surface. The paddles are adjustable for different coating techniques, ensuring a consistent and high-quality finish.

More Details

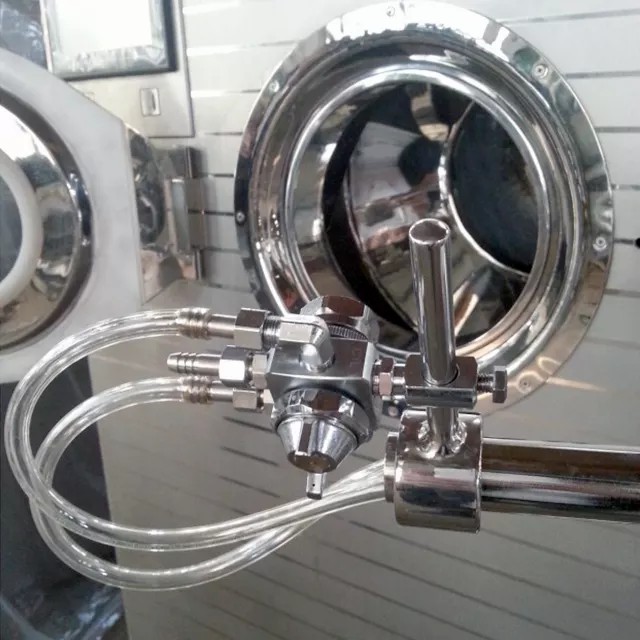

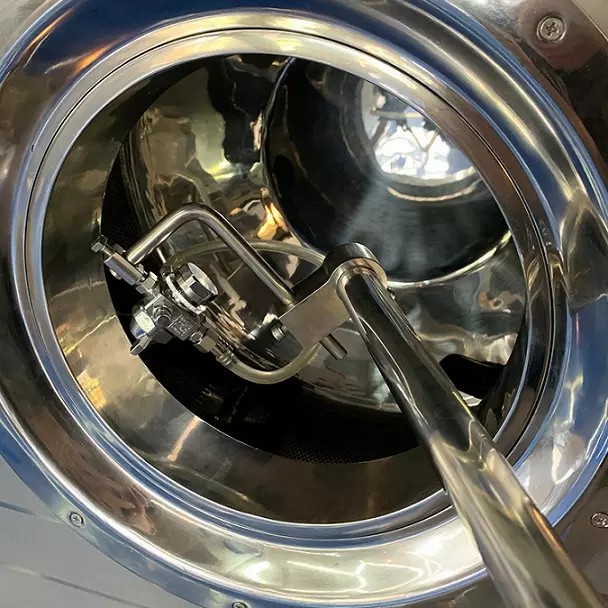

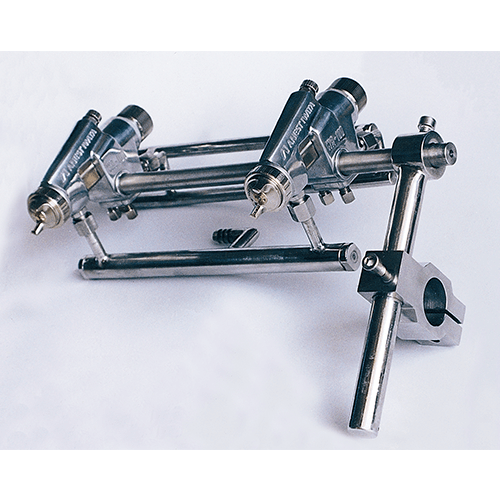

Spray Gun

Equipped with precision nozzles for fine and uniform spraying of coating solutions. The spray gun is capable of handling a variety of coating materials, ensuring minimal wastage and consistent application.
