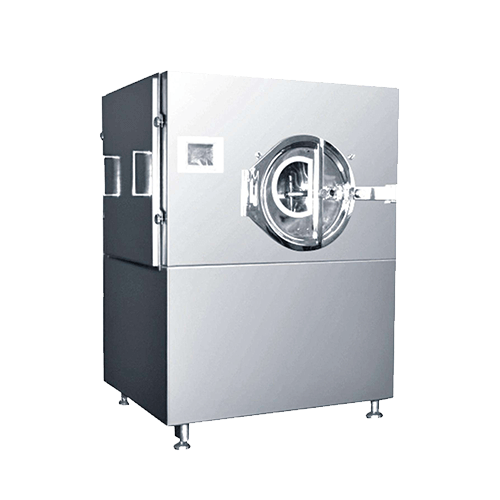

BG-series High-efficiency Coating Machines

BG-series High-efficiency Coating Machines

The BG series high-efficiency coating machines are mainly used in the pharmaceutical and food industries.It is mainly used for organic film coating, water-soluble film coating, slow and controlled release coating, drop pill coating, sugar coating, and chocolate and candy coating of tablets, pills, candies, etc.

Product Description
Specification Parameter
Product Application
Product Feature
More Details

Product Description

The BG series high-efficiency coating machines are mainly used in the pharmaceutical and food industries.

It is mainly used for organic film coating, water-soluble film coating, slow and controlled release coating, drop pill coating, sugar coating, and chocolate and candy coating of tablets, pills, candies, etc.

It is an efficient, energy-saving, safe, clean, and GMP compliant electromechanical integrated coating equipment.

Specification Parameter

Model	BG-600	BG-500	BG-450	BG-100	BG-75	BG-10
Working capacity (kg/Batch based on bulk density of 1)	600	500	45	100	75	10
Speed adjusting range of coating drum(rpm)	2-11	2-11	2-11	4-19	4-19	6-30
Regulating range of hot air temperature(°C)	Normal temperature ~80°C
Filtration accuracy of hot air(μm)	0.5 μm(100000 grade)
Dimension(m)	2×2.14×2.32	2×1.94×2.32	2×1.8×2.27	1.2×1.15×1.765	1.2×0.965×1.765	0.97×0.75×1.55
Weight( kg )	2600	2300	1800	650	550	380

Product Application

Suitable for pharmaceutical and food industries looking for a high-output solution to coat tablets, pills, and candies efficiently and consistently.

Product Feature

1

Integrates electromechanical systems for enhanced efficiency and reliability.
2

Designed to meet GMP compliance with energy-saving and clean operation.
3

Versatile for slow-release, controlled-release, and various coating processes.

More Details

Agitating and Holding Tank

Designed to maintain a homogeneous coating solution throughout the process. The tank includes a high-performance agitator to prevent sedimentation and ensure uniform distribution of coating materials. The holding capacity can be customized for various batch sizes.

More Details

Outboard Discharging Device

Facilitates the rapid and efficient discharge of coated materials. Positioned externally for easy access and minimal contamination risk, it significantly reduces downtime between batches.

More Details

Built-in Discharging Device

Integrated within the coating machine, this device ensures a seamless transition of coated products from the coating drum to the collection unit. Its compact design optimizes space without compromising functionality.

More Details

Coating Paddle

Engineered to provide even distribution of the coating material over the product surface. The paddles are adjustable for different coating techniques, ensuring a consistent and high-quality finish.

More Details

Spray Gun

Equipped with precision nozzles for fine and uniform spraying of coating solutions. The spray gun is capable of handling a variety of coating materials, ensuring minimal wastage and consistent application.
