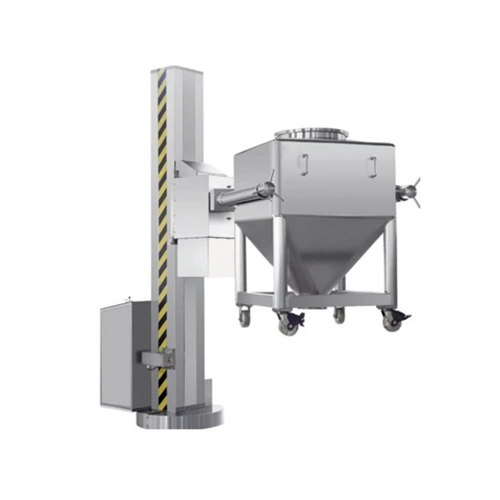

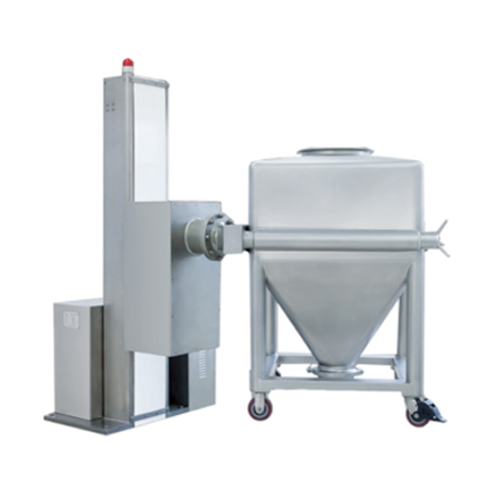

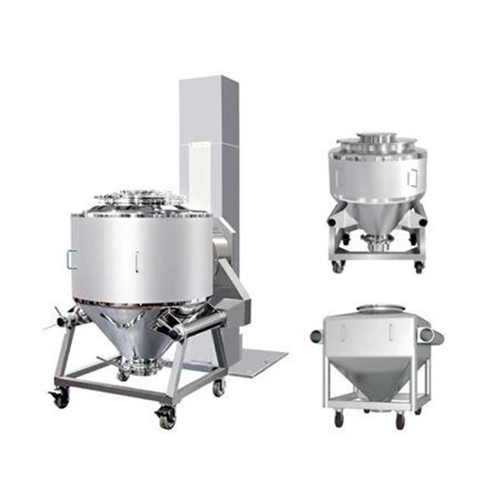

BlenTop1 Automatic Lifting Mixing machine can automatically complete all actions including lifting,clamping,mixing ,lowering,etc.An automatic lifting hopper mixer and several mixing hoppers of different specifications can meet the mixing requirements of large batches and diversified vatieties of producst.It is an ideal machine for mixing in pharmaceutical plants.It is also widely used in such inductries as medicine,chemical industry,food,etc.

Product Description
Specification Parameter
Product Application
Product Feature
More Details

Product Description

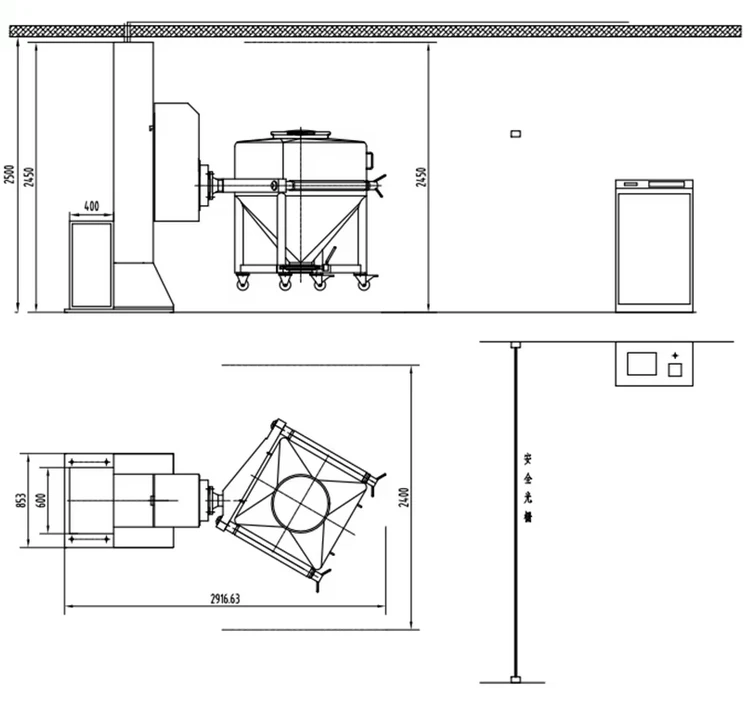

BlenTop1 Automatic Lifting Mixing machine is composed of machine base,gyrator,driving system,lifting and lowering system,braking system and control system.

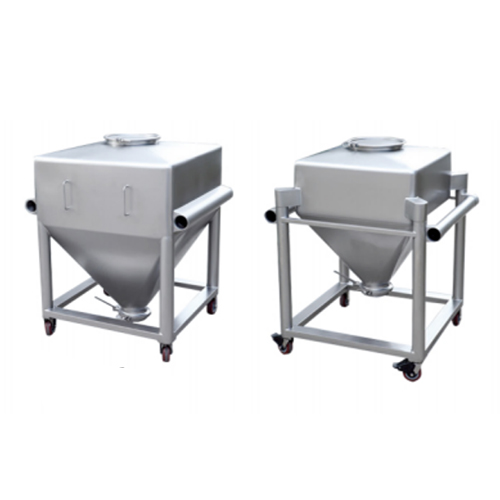

When it works,push the mixing hopper into the gyrator.
Enter the automatic operation program,and input the set parameter group program code.
Press the "confirm" button on the touch screen to automaticallly lift the mixing hopper to the designated position and automatically clamp it.
After the PLC control system receives the clamping signal,the driving system works and carries out mixing according to the set time and rotation speed.
After the set parameters are reached,the gyrator will automatically stop vertically.At the same time,the braking system works and the mixing is finished.
Then enter the manual operation program,press the "lower" button,the mixing hopper in the gyrator will fall to the designated position and stop automatically,and process data will be printed.
Then the mixing hopper is pushed out and transferred to the next procedure.

Specification Parameter

Model	Max Bin Volume(L)	Max Working Volume(L)	Max.Charge Weight(kg)	Mixing Speed (rpm)	Total Power Of Motor(kW)	Total Weight(kg)	Overall Dimension(L×W×H)mm
BlenTop1-100	100	80	50	45371	2.25	600	1700×1500×2000
BlenTop1-200	200	160	100	45370	3	800	2300×1900×2000
BlenTop1-300	300	240	150	45370	3	1000	2300×1900×2000
BlenTop1-400	400	320	200	45370	4.4	1200	2500×2200×2400
BlenTop1-600	600	480	300	45367	5.2	1400	2800×2400×2500
BlenTop1-800	800	640	400	45361	7	1800	3000×2500×2800
BlenTop1-1000	1000	800	500	45361	7	2000	3200×2800×3000
BlenTop1-1200	1200	960	600	45361	8	2100	3300×2800×3000
BlenTop1-1500	1500	1200	750	45361	8	2200	3300×2800×3000
BlenTop1-2000	2000	1600	1000	45359	9.5	3800	3300×3200×3600

Product Application

Product Feature

1

BlenTop1 Automatic Lifting Mixing machine is a new machine researched and developed successfully by our company according to China's actual conditions after absorbing and digesting internationally advanced technology. It has such features as reasonable structure,stable performance,convenient operation,no dead corners,and no exposed bolts.
2

The gyrator(mixing hopper) forms an included angle of 30°with the rotation axis.The materials in the mixing hopper rotate along with gyrator and make tangential movement along the hopper walls,producing strong turning and high-speed tangential movement and achieving the best mixing effect.
3

PLC automatic control is adopted.It is provided with the infrared safety device and the discharging butterfly valve with the misoperation preventer to ensure safe production.
4

The materials can go through different working procedures in the same vessel without the need of frequent material transferring,material charging,etc.
5

The machine effectively controls dust pollution and cross contamination,reduces loss of materials,controls material layering,optimized production processes,and fully meets the requirements for medicine production in GMP.

More Details

Automatic Lifting Mixing machine is a new machine researched and developed successfully by our company according to China's actual conditions after absorbing and digesting internationally advanced technology.It has such features as reasonable structure,stable performance,convenient operation,no dead corners,and no exposed bolts.
