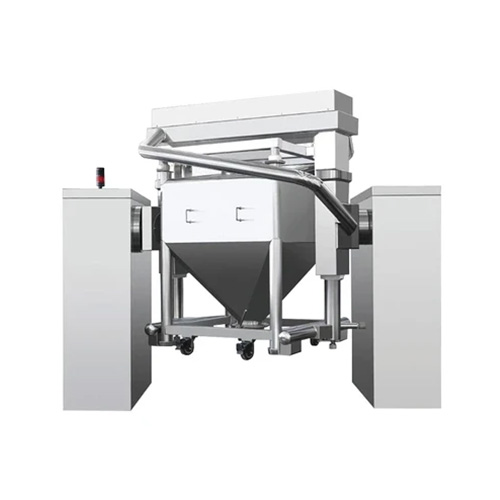

BlenTop2 Automatic Lifting Mixing machine

BlenTop2 Automatic Lifting Mixing machine

BlenTop2-Series Bin Blender(Hereinafter Called“This Machine") Is Ideal For Powder And Granules Mixing Applications In Pharmaceutical Industry With High Mixing Efficiency And Without Cross Contamination And Dust. Thus, The Machine Can Satisfy Strict Batch Control And Comply Entirely With GMP Requirements For Medicine Production.This Machine Can Catch Several Kinds And Different Sizes Of Bins, Which Lifting. Clamping,Mixing.Descending And Clamp Loosing Full Automatically.One Main Machine Can Be Configured With Various Bin Specifications, Thus it's The Ideal Blender For General Mixing In Pharmaceutical Plant, Meanwhile,Widely Used In Chemical, Light And Food Industries.Etc.

Product Description
Specification Parameter
Product Application
Product Feature
More Details

Product Description

BlenTop2 Automatic High Efficient Lifting Mixer Stainless steel Mixing Machine is composed of machine base,gyrator,driving system,lifting and lowering system,braking system and control system.
When it works,push the mixing hopper into the gyrator.
Enter the automatic operation program,and input the set parameter group program code.
Press the "confirm" button on the touch screen to automaticallly lift the mixing hopper to the designated position and automatically clamp it.
After the PLC control system receives the clamping signal,the driving system works and carries out mixing according to the set time and rotation speed.
After the set parameters are reached,the gyrator will automatically stop vertically.At the same time,the braking system works and the mixing is finished.
Then enter the manual operation program,press the "lower" button,the mixing hopper in the gyrator will fall to the designated position and stop automatically,and process data will be printed.
Then the mixing hopper is pushed out and transferred to the next procedure.

Specification Parameter

Model	Max.Volume Of Hopper(L)	Max.Charge Volume (L)	Max.Charge Weight(kg)	Main Shaft Speed(rpm)	Total Power Of Motor(kW)	Total Weight(kg)	Front Width×Rotate Depth×Rotate Height(MM)
BlenTop2-400	400	320	200	3-20	4.75	1800	2600×2300×2600
BlenTop2-800	800	640	400	3-20	7	2600	3000×2600×3100
BlenTop2-1000	1000	800	500	3-20	7.7	3020	3400×3000×3400
BlenTop2-1200	1200	960	600	3-20	7.7	3300	3400×3100×3500
BlenTop2-1500	1500	1200	750	3-15	10.5	3750	3400×3300×3700
BlenTop2-2000	2000	1600	1000	3-15	11.5	4250	3500×3600×4000

Product Application

The machine is used for mixing the powder state and grain state materials with the high uniformity in the pharmacy, chemical, food, light-industry, electronic, mechanical, metallurgical, nation defense industries and other science and technology institutes.

Product Feature

1

It is used for the high uniformity mixing of powder, granular materials in the industries such as pharmacy, chemical, food, light industry, electron, machine, mining and metallurgy, national defense and research units.
2

The mixing tube is moved with multi-direction. Materials are out of centrifugal force and no gravity segregation and accumulation. Each component can be of intervallic weight ratio and the mixing ratio could be above 99.9%. So it will be the more ideal mixer.
3

The loading capacity of tube is large which could be largest 80% (ordinary mixer only be 40%). It features high efficiency, short mixing time.
4

All parts in the tube is circular arc with precision polishing.
