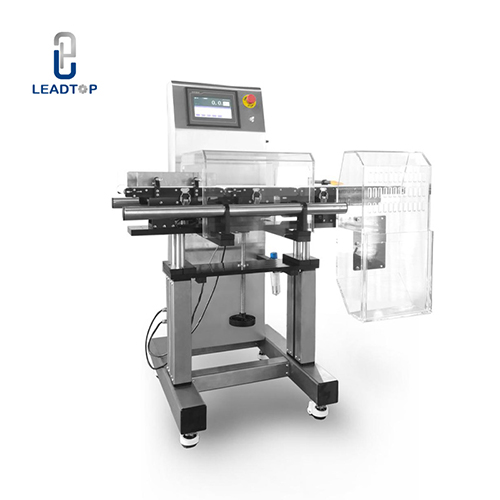

Check Weigher

Widely used for online testing in industries such as pharmaceuticals, food, cosmetics, toys, hardware, and chemicals.

Product Description
Specification Parameter
Product Application
Product Feature
More Details

Product Description

Used for automatic weight detection on various automated assembly lines and logistics conveying systems, as well as for detecting multiple or missing parts after product packaging.

Specification Parameter

Sorting range	2-300g
Sorting accuracy	±0.3g
Minimum scale	0.1g
Sorting speed	200(bag/min)
Product max size	100mm150mm(2-150)mm
Removal method	air blowing removal
Belt height above ground	800 ± 100mm
weight	60KG

Product Application

Widely used for online testing in industries such as pharmaceuticals, food, cosmetics, toys, hardware, and chemicals.

Product Feature

1

Large size color LCD touch screen interface, easy to operate, and intuitive display.
2

Support customization of multiple languages, default to Chinese and English.
3

The system supports up to 10 formulas, which can be switched, the formula name and quantity unit can be changed, and the corresponding speed and accuracy of the equipment can be set for different formulas.
4

Equipped with empty bag photoelectric automatic detection, adjustable conveyor belt speed, and automatic learning function.
5

Parameter settings are password protected and can only be operated by management personnel.
6

Automatic zero point tracking system ensures reliable detection data.
