ContigTop Closed Type Wall Mounted Structure Automatic Solid Dosage Granulation Line

ContigTop Closed Type Wall Mounted Structure Automatic Solid Dosage Granulation Line

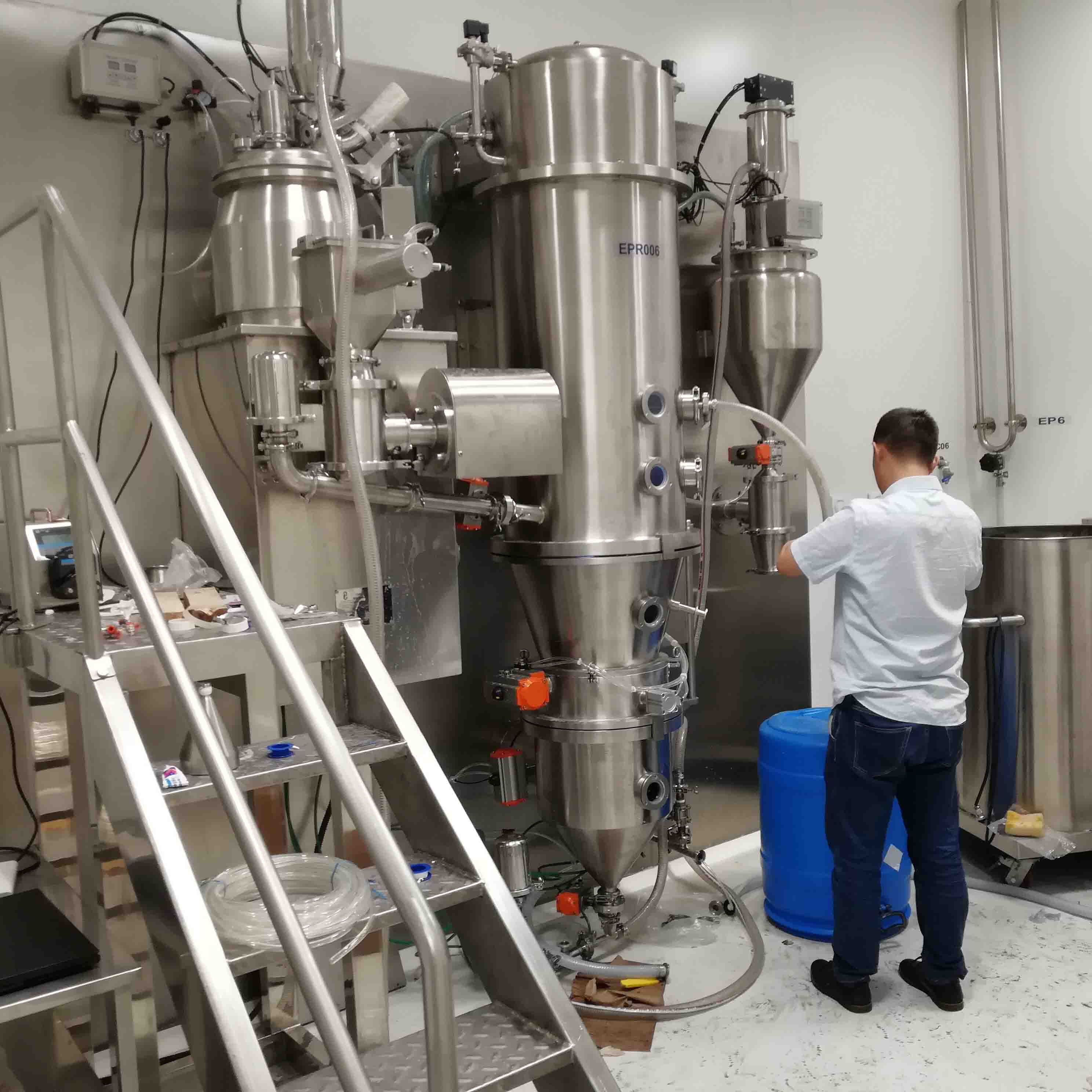

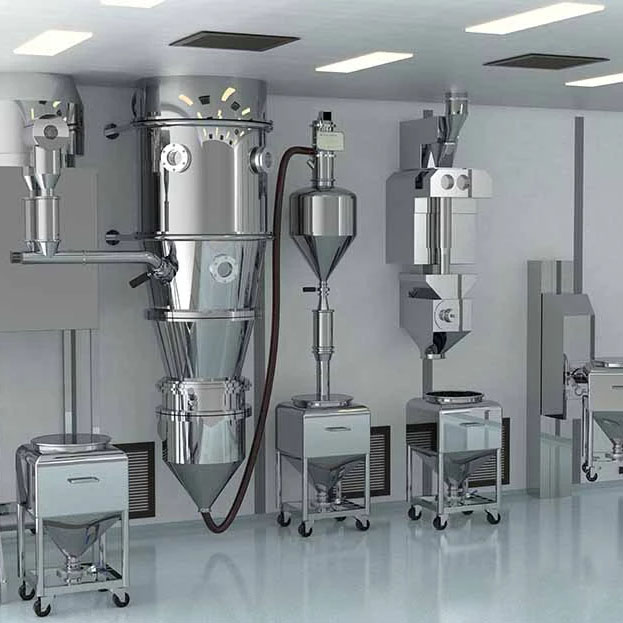

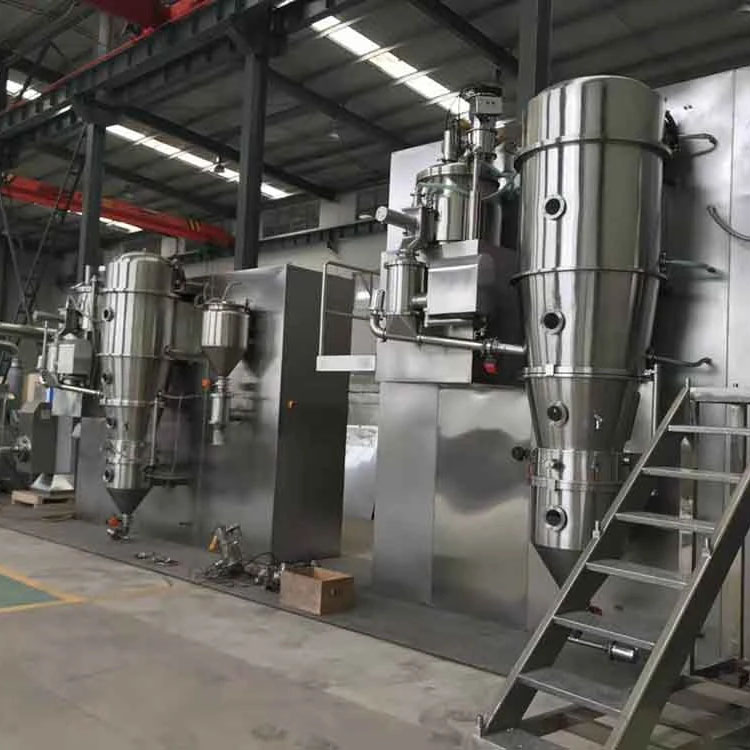

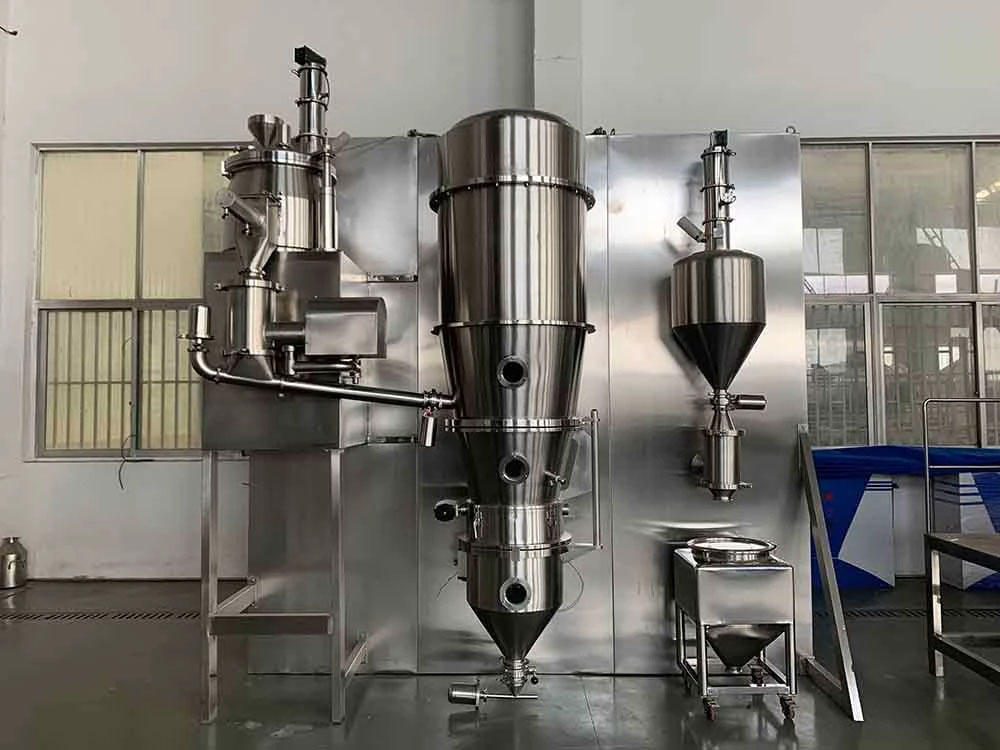

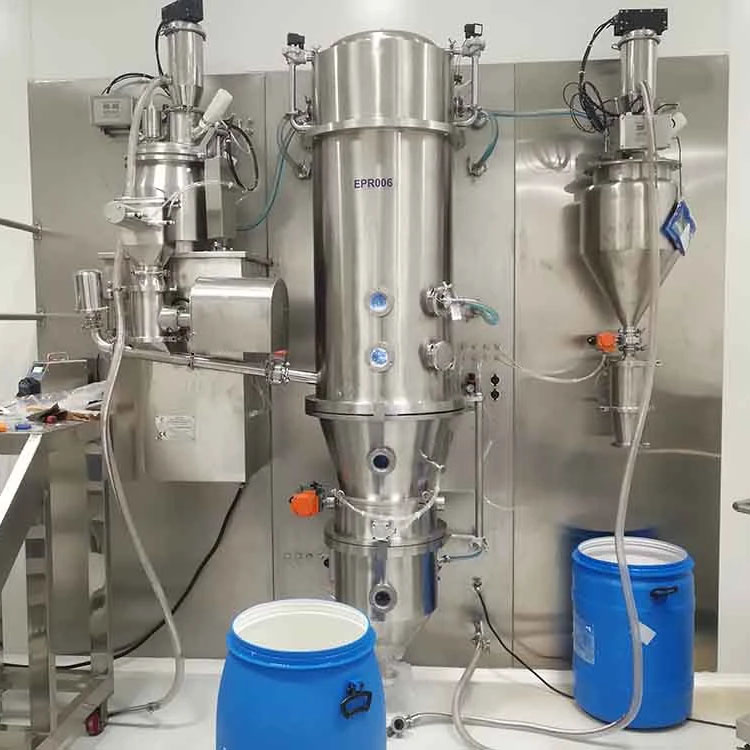

The ContigTop granulating line equipment integrates automatic feeding system, closed connection, adhesive automatic supply, wet type granulating, wet type granule sizing/oscillating granule sizing, closed discharging, fluidized bed drying, in-place vacuum discharging, online granule sizing/lifting and turning discharging, online granule sizing, and the granules enter the closed mixing hopper for the next procedure.

Product Description
Specification Parameter
Product Application
Product Feature
More Details

Product Description

Specification Parameter

Total Volume	600L
Raw Material Input Volume	150-440L
Raw Material Input Capacity	75-220kgs/batch(material density 0.5g)
Operating time	Mixing:8min Granulation:15-20min/batch
Size of the finished granule	Φ0.14-Φ1.5mm(12mesh-100mesh)
Mixing Speed	20-200rpm
Mixing power	30kw
Granulation Speed	50-3000rpm
Granulation power	11kw
Air compressor	0.5m³ 0.7Mpa (prepared by buyer)
Inlet of cooling water and compressed air	Φ10mm
Height of the output	1150mm
Dimension	2980×1200×2500mm
Weight	2200kg

Product Application

1.Drugs granulation and coating
2.Granulation: Tablet particles, granule particles, capsule particles
3.Coating: particles, pill covers, color-prepared, slow-release, films, enteric coating
4.Food granulation and coating Granulated sugar, coffee, cacao powder, cream, juice powder, amino acids, sauce, puffed food
5.Pesticide, paint pigment, dry granulation Powder, granules, block materials

Product Feature

1

To adopt antistatic filtering mediums, to ensure safe operation.
2

Caking agent atomizer adopts multi-fluid spray gun to maintain uniform spray particles and to increase the rate of qualified products greatly.
3

No dead-corner of equipment; it is easy and rapid of feeding or discharging materials and clean of washing to satisfy the GMP standard.
