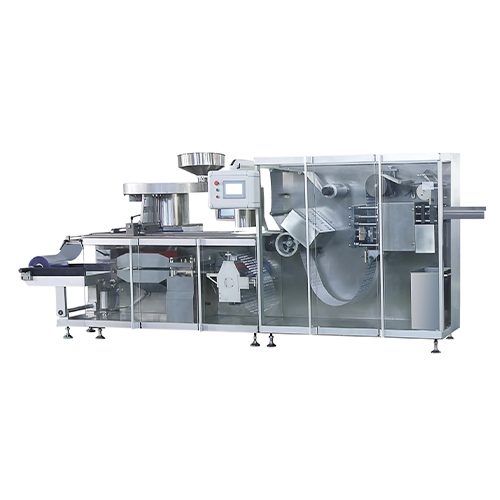

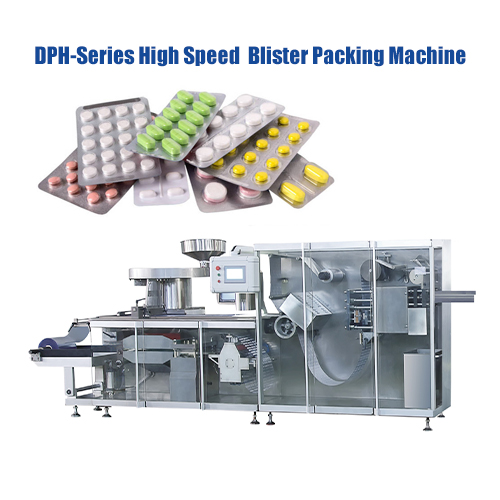

DPH-Series High Speed Blister Packing Machine

DPH-Series High Speed Blister Packing Machine

The DPH series intelligent high-speed roller plate blister packaging machine adopts frequency conversion speed regulation and integrated automatic control technology of machinery, electricity, light, and gas, and is innovatively designed in strict accordance with GMP standards.

Product Description
Specification Parameter
Product Application
Product Feature
More Details

Product Description

This machine can cut up to 200 times /min, which is about four times higher than a regular blister packaging machine.

It has the characteristics of high punching frequency, low energy consumption, accurate and stable action, convenient mold replacement, high yield, and has the characteristics of staggered punching and cutting, greatly improving production efficiency.

Specification Parameter

Model	DPH-260H	DPH-320H
Charging Speed	60-200 times/min	60-200 times/min
Production capacity	10800-36000 versions/hour	10800-36000 versions/hour
Optional range of feed stroke	20-100 mm	20-100 mm
Maximum forming area	260*280 mm	320*280 mm
Maximum forming depth	10 mm	12 mm
Standard plate	80573 mm	80573 mm
Total power supply	18.1 kw	18.9 kw
Power supply three-phase five wire	380/50 v/Hz	380/50 v/Hz
Packaging material	PVC:0.25260mm Aluminum foil: 0.02260mm	PVC:0.25320mm Aluminum foil:0.02320mm
Dimensions	486010701750 mm	486011301750 mm
Weight	3000 kg	3200 kg

Product Application

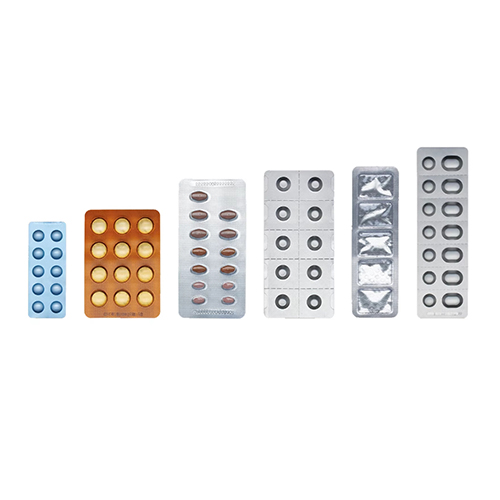

Blister Plate

#Medications #Health Supplements #Food

Blister Packing Sample For Capsule Tablet Ampoule Bottle Jam 0il Honey Sauce Paste Chocolate Jam

Product Feature

1

High speed, high stability and high accuracy when machine running.
2

Width of PVC and PTP both are 260mm, which designing is more humanized.
3

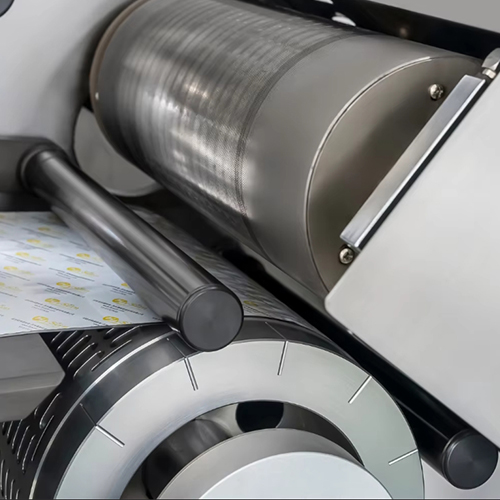

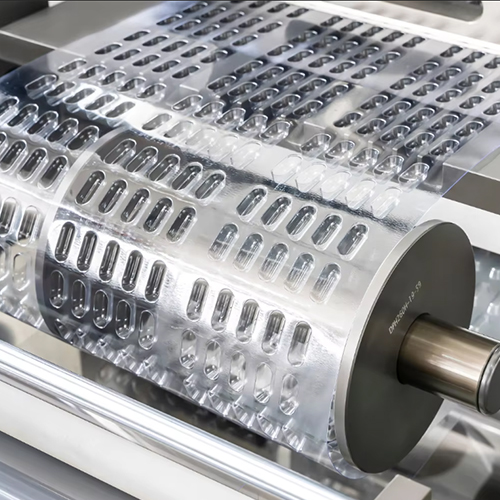

Flat plate is front pressure to form, roller plate type to seal, thus making the grid pattern more beautiful.
4

The cutting frequency is up to 40-200 blister plates /minute (the speed is adjustable according to the format length).
5

It can be equipped with universal feeding system or special pipeline feeding system according to the shape of medicines.
6

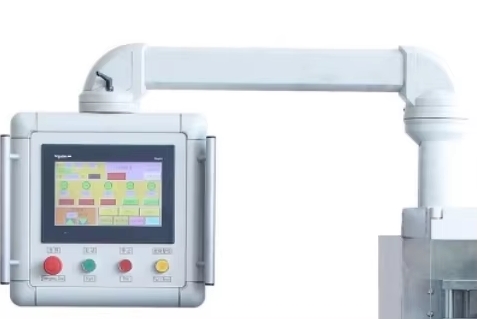

PLC human-machine interface control system to operate, stepless frequency inverter to main transmission. Each station adopts an independent worm gear reducer and link universal coupling device.
7

Printing batch numbers and expiry date, and plate impressing adopts plate drawing type handy replacement structure.
8

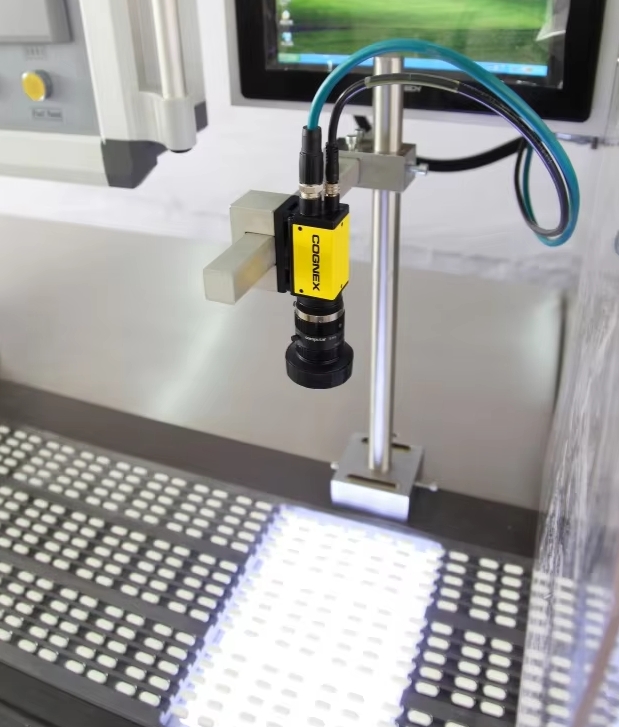

Lengthen filling platform which can improve yield and easy to be equipped with camera detection, automatic eliminate convey system, and conveyor link to automatic carton packing machine.
9

Cross cutting (borderless cutting) will not waste packing materials. This blister machine can save packing materials about 10%.
10

Adopting servo traction system, make stroke length be adjustable arbitrary, accurate and consistent. The cutting position is easy to adjust which make plate perfect.

More Details

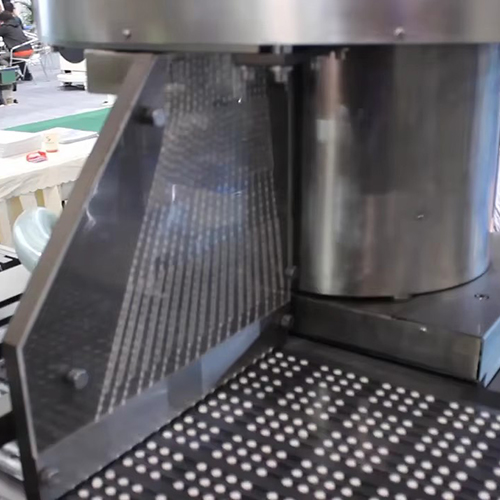

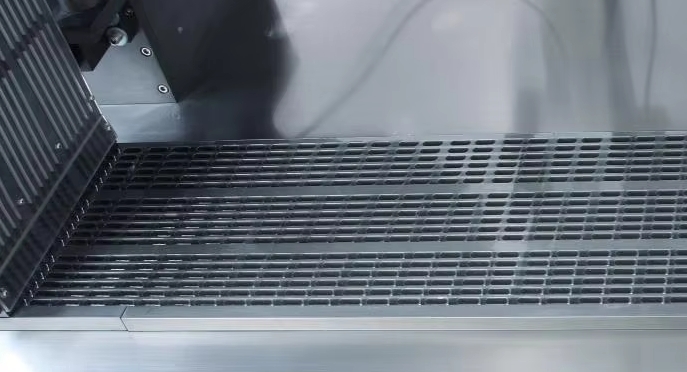

Ergonomic design, spacious feeding platform

The guide board of the feeding table adopts a flat design, flat and easy to operate and clean.According to actual needs, disc brush feeder, vibrating feeder, or capsule orderly turning feeder can be selected.

More Details

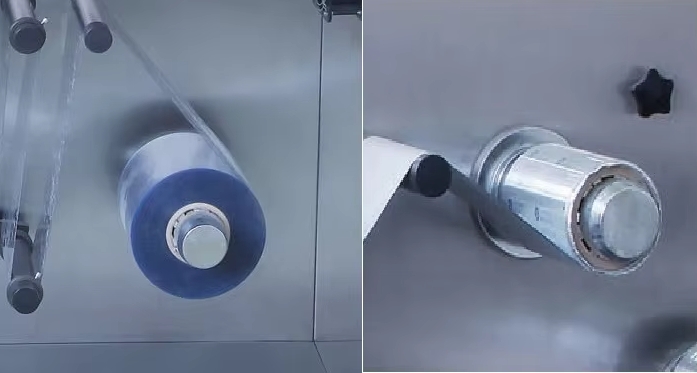

Easy and convenient replacement of PVC and aluminum foil

The inflatable expansion shaft is adopted, and the operation is simple and easy when replacing PVC and aluminum foil. At the same time, the tension is great to avoid problems such as paper scraps caused by side pressure fixed shaft slides due to insufficient compression force.

More Details

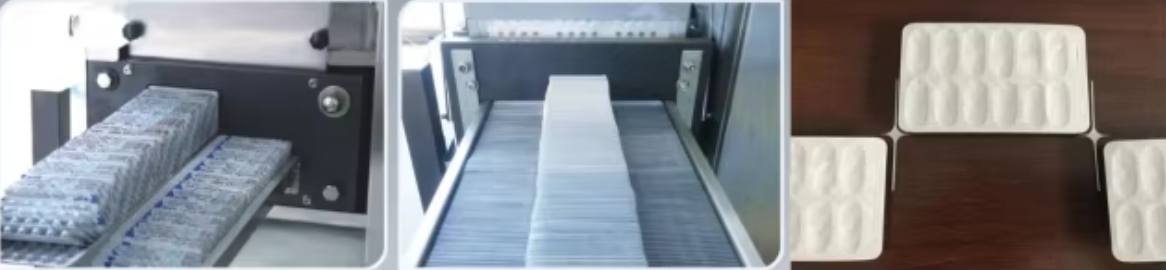

Dislocation punching saves over 50,000 USD in packaging materials annually

The punching die is made of cemented carbide steel, processed by EDM and then nitrided. The hardness can reach HRC58-62, and it is wear-resistant and corrosion-resistant.Dislocation punching is used, with non-scrap edge horizontally and 1mm scrap edge vertically. The punched plate has no horn edges. The annual saving of packaging materials is more than 50,000 USD.
