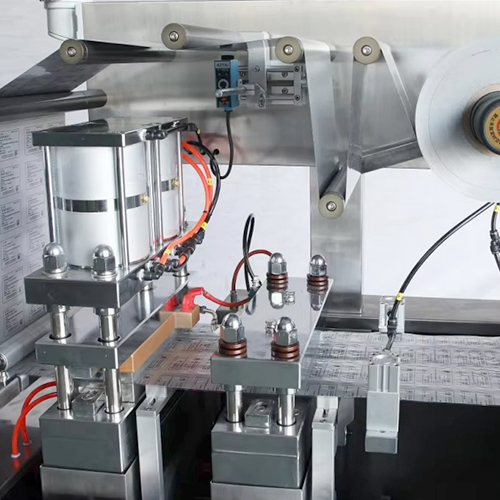

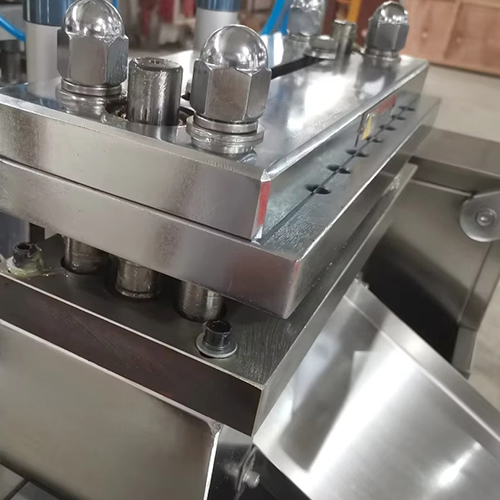

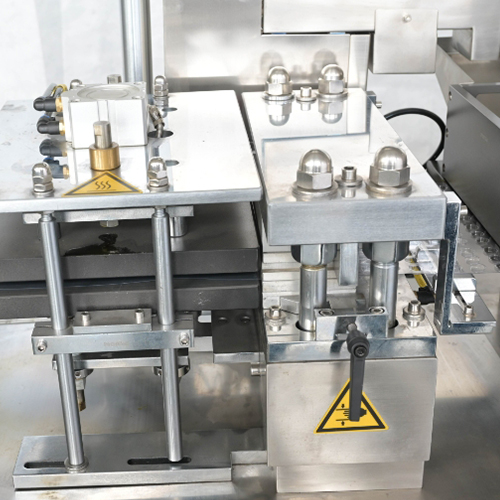

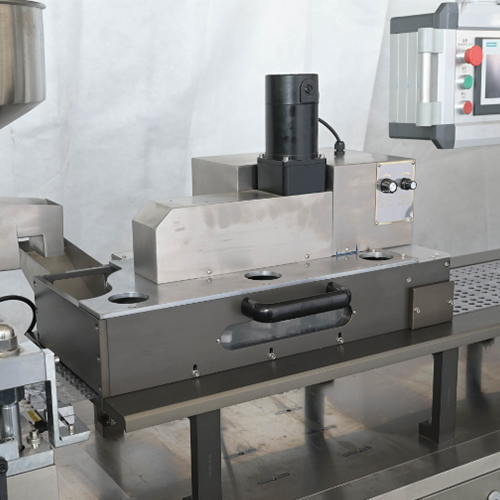

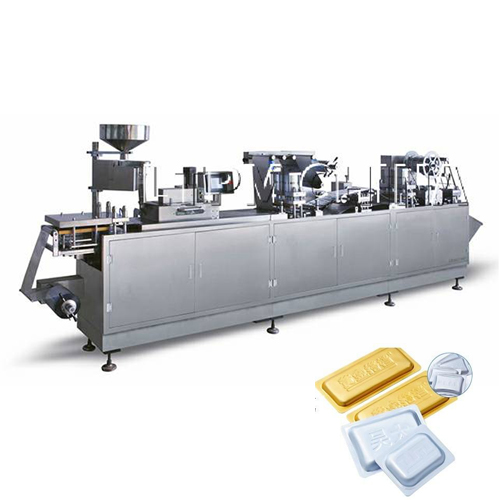

DPP-F Series Blister Packing Machine

It is suitable for packaging of all kinds of liquid and solid in medium & small pharmaceutical factory, health medicine factory, hospital preparation lab, food industry,electronic industry, hardware industry, etc.

Product Description
Specification Parameter
Product Application
Product Feature
More Details

Product Description

This product is a new packing machine designed by our company; it has reached domestic leading level. It is suitable for big honey ,candy, liquid, paste, syringe as well as irregular shape Al-plastic, paper-plastic composite and Al-Al sealing packing in pharmacy, healthcare, food, cosmetics, equipment industryetc. This machine adopts micro-computer PLC, frequency converter, touch panel operation, high automation; it is an ideal blister packing equipment. The product passed the provincial science and technology appraisal.

Specification Parameter

Model	DPP-160F	DPP-250F	DPP-320F
Punch Speed	10-35time/min
Travel Range	10-150mm	10-160mm	10-170mm
Compressed Air	0.4MPA-0.6MPA
Power	380V 50Hz 4Kw
Wrapper Specification	PTP:(0.02-0.035)*160mm	Aluminum Foil:(0.02-0.035)*250mm	Aluminum Foil:(0.02-0.035)*320mm
	Composite Aluminum film: (0.11-0.15)*160mm	Tropical Aluminum: (0.09-0.15)*250mm	Tropical Aluminum: (0.09-0.15)*320mm
	Composite Aluminum film: (0.11-0.15)*160mm	Tropical Aluminum: (0.09-0.15)*250mm	Tropical Aluminum: (0.09-0.15)*320mm
	PVC: (0.15-0.5)*160mm	PVC: (0.15-0.5)*250mm	PVC: (0.15-0.5)*320mm
Overall dimensions (mm)	3800×680×1400	4300×635×1400	48007181500
Weight (kg)	1500Kg	2000Kg	2400kg

Product Application

Blister Plate

#Medications #Health Supplements #Food

Blister Packing Sample For Capsule Tablet Ampoule Bottle Jam 0il Honey Sauce Paste Chocolate Jam

Product Feature

1

Travel scope can be adjusted.
2

Mould is located by locating groove so that it’s easy to change mould. Adopt the moulds of pressing-and-frothing and cool-forming.
3

The material is fed automatically. The mould and feeding equipment can be designed as user’s requirements.
4

Speed is shifted by step-less transducer. Adopt the interface of human-machine and PLC programmable controller.
5

Adopt photoelectric empty-detecting equipment and waster-eliminating equipment.
6

Servo motor drive wheel to grip and tow wrapper, synchronize accurately. And it will be not waste of time and material for adjusting when restart the machine.
7

The machine equipped Camera Cell for sensor, make the length in an accurate number.
8

The heating moulds will automatically separate when the machine stops, which contributes to protect the material between them and extend the machine’s life.

More Details

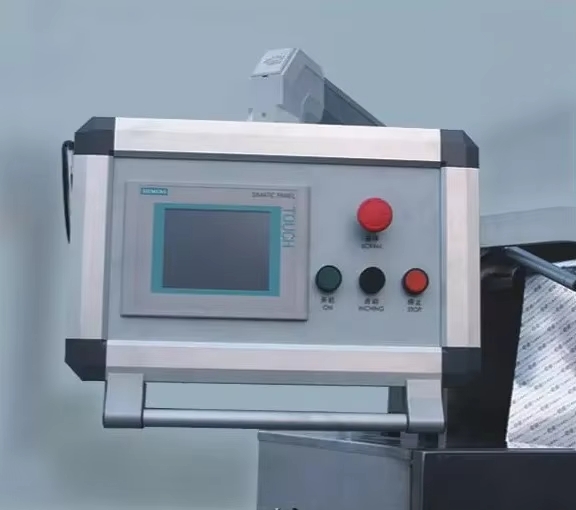

PLC Touch Screen

This machine adopts intelligent driver and PLC Human Computer Interface.(PLC SEMENS)

More Details

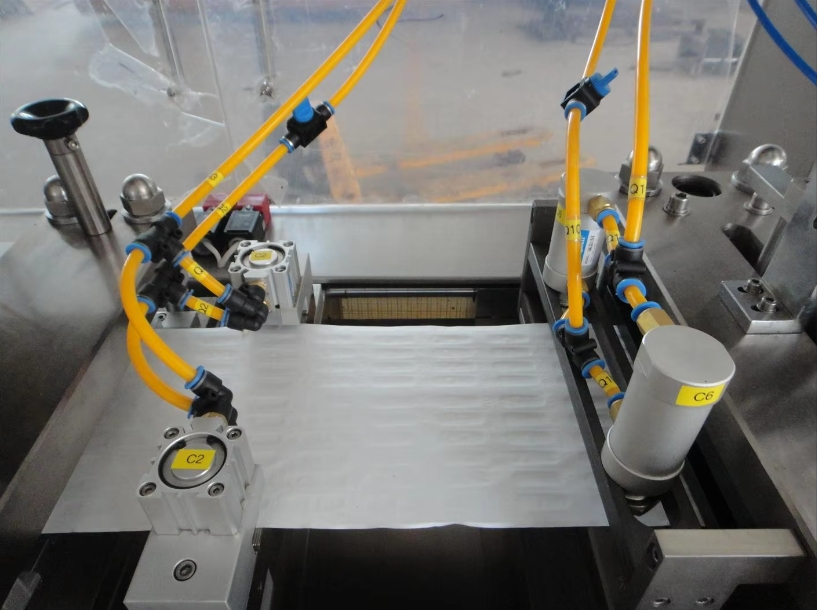

Adjustable Strock

On the required changes to blister specifications, not to add or replace parts, use of servo motor drive control, its traction strok by the 60-152MM distance adjustable, smooth and accurate implementation of the blister specifications replacement.

More Details

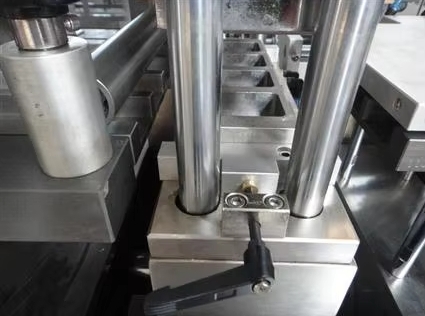

Mould insert position device

Change mould more accurate and facility.

More Details

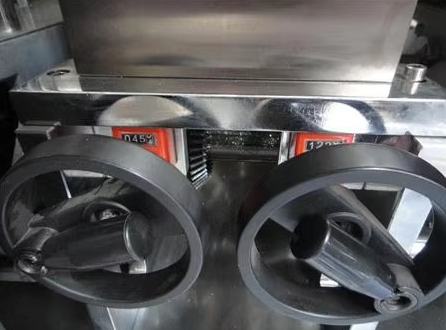

Adjustable station

Forming ,batch ,pressing,cutting ,sealing can be adjust by hand wheel and show the figure ,and the sealing mould as the base point.

More Details

Pre Alarm function

Pre alarm for Alu(PVC) foil end and PVC film end,it will show on PLC and remind operator to change material.And with Alu(PVC) fast change device.(with 2 PVC/ALU loading device).
