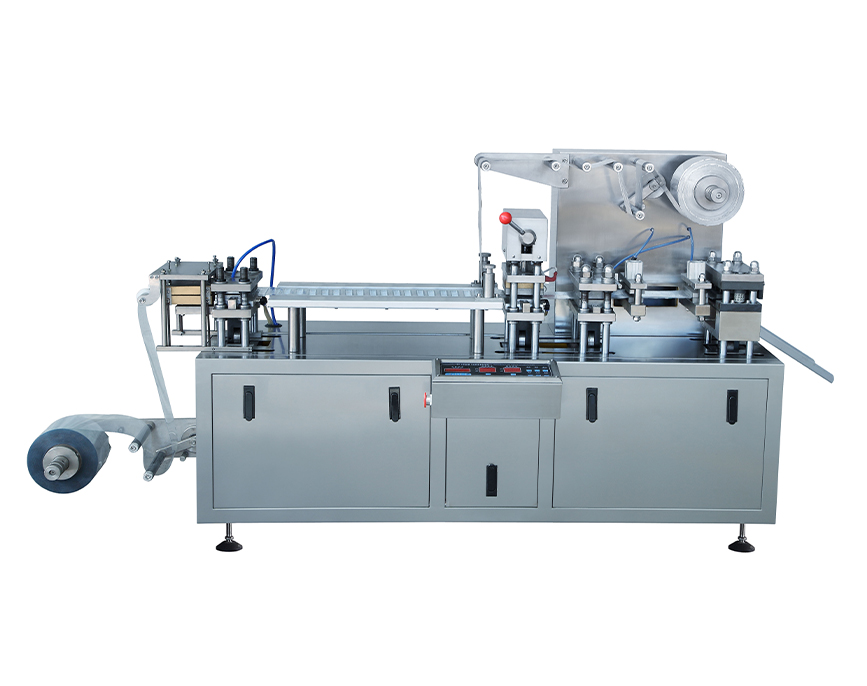

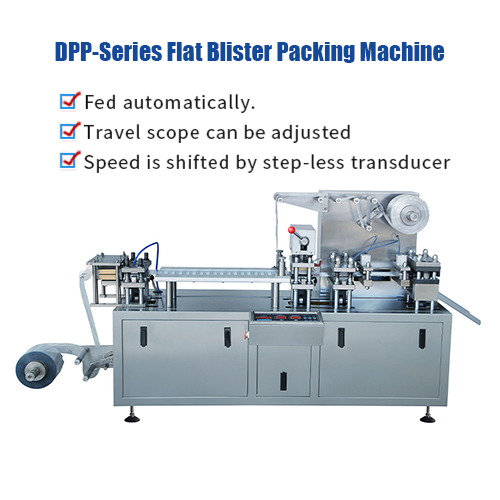

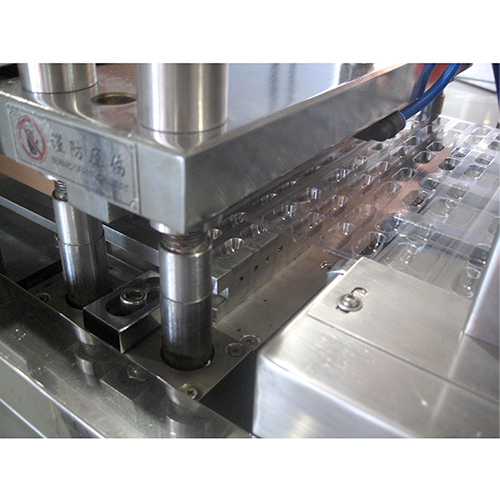

DPP-Series Flat Blister Packing Machine

The blister packing machine packing solid, Jam, Oil, Sauce, Candy, Liquid, Ampoules, injection into aluminum plastic composite panel(ACP) or aluminum plate. The machine is used to produce small quality and many kinds of products.

Product Description
Specification Parameter
Product Application
Product Feature
More Details

Product Description

The machine is new product which is improved based on customer’s requirements. It’s suitable for packaging of all kinds of liquid and solid in medium & small pharmaceutical factory, health medicine factory, hospital preparation lab, food industry, electronic industry, hardware industry, etc. It can protect the material from steam or dust, improve product packing degree, and increase the additional value. The machine is used to produce small quality and many kinds of products.

Specification Parameter

Model	DPP-88	DPP-140	DPP-250	DPP-320
Blanking Frequency:	15-40Punches/min	5-50	15-45	15-45
Sheet's quantity of one blanking:	1sheets	1-4(depends to your blister size)	1-6(depends to your blister sie)	5
Capacity:	900-2100sheets/hour	5-200	5-400	10500
Adjustable scope of feed travel	10-110mm	10-120mm	10-120mm	10-160mm
Max.Forming:	120×110×15mm	160×120×25mm	270×120×25mm	340×120×25mm
Capacity of air compressor(m3/min):	≥0.36	≥0.36	≥0.36	>0.36
Power Supply:	380V 50Hz5.5Kw	220V AC,30 Hz,Three Phase Depend on your requirement.	220V AC,30 Hz,Three Phase Depend on your requrement.	220VAC,30 Hz,Three Phase Depend on your requiremnt.
Wrapper Specification:	PVC:120×(0.15-0.5)mm PTP:120(0.020.035)mm	PVC:Width 10-170mm PTP Alu foi:Width 10-170mm	PVC:Width 10-270mm PTP Alu foil:Width 10-270mm	PVC for medicine 340×(0.15-0.5)mm Ahmnum flm 340×(0.02-0.035)mm
Weight:	650Kg	950Kg	1260Kg	2100Kg

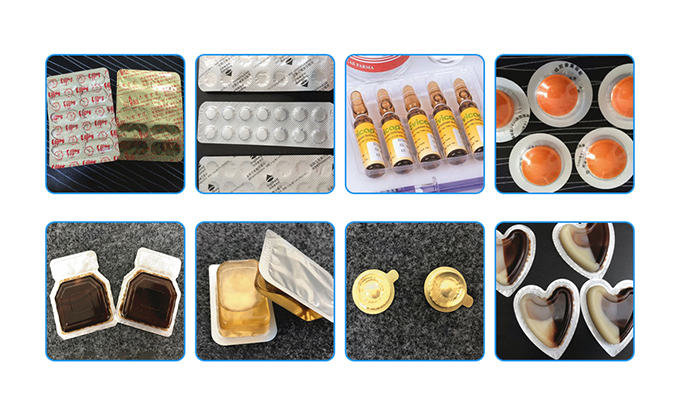

Product Application

Blister Plate

#Medications #Health Supplements #Food

Blister Packing Sample For Capsule Tablet Ampoule Bottle Jam 0il Honey Sauce Paste Chocolate Jam

Product Feature

1

The design structure of the machine meets the requirements of GMP and cGMP standards and ergonomic design principles, adopts advanced intelligent drive and control technology, and all parts in contact with materials are made of SUS316 stainless steel with strong corrosion resistance
2

The equipment material adopts the combined structure design of carbon steel and aluminum alloy, and the aluminum alloy is hard anodized to improve the corrosion resistance, wear resistance, heat resistance and insulation of aluminum parts. The film hardness can reach more than hv400 and the thickness can reach dozens or even hundreds μ m. With easy thickness control and high dimensional accuracy, it is widely used in aviation, aerospace, ship and other fields. The use of this material in packaging equipment can greatly improve the service life and stability of packaging machinery
3

The fuselage adopts split assembly structure, which can be divided into three sections to facilitate users to enter the decorated purification workshop smoothly
4

Switching between aluminum plastic and aluminum can be realized only by changing the mold
5

It has the camera waste removal function (optional) to ensure the integrity of the product
6

There is an independent station for printing batch number and pressing tear line, which can make the batch number more clear and beautiful
7

Ensure the safety of operation, and each station has a visual safety cover
8

Flat plate structure, which can pack oval, square, triangle and other special-shaped items

More Details

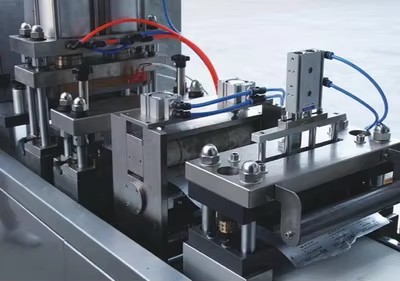

Booster Cylinder

1. The installation of booster cylinder can reduce the wear of transmission parts and increase the service life of the machine.
2.During shutdown, the heat sealing cylinder shall be lifted to avoid damage to during shutdown.

More Details

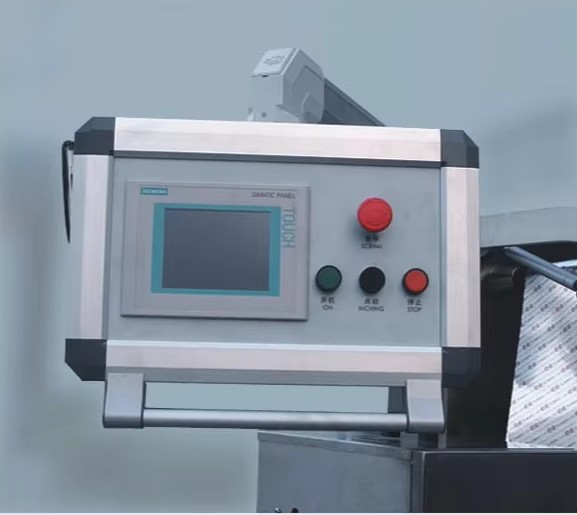

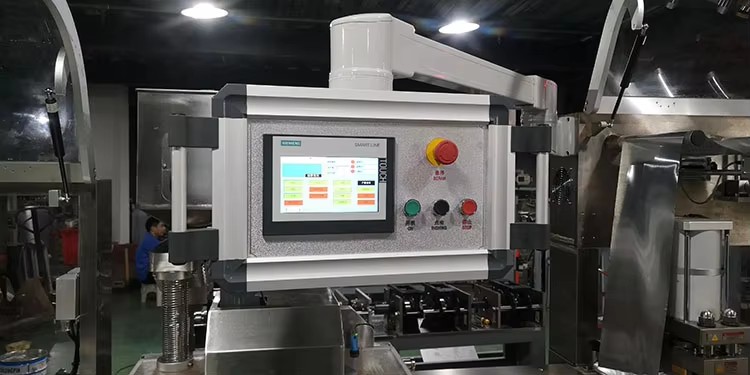

Siemens Touch Screen

1. Siemens touch screen is adopted, which has stable performance, lower failure rate and more stable production.
2. Safety emergency stop switch is applicable to emergency braking in case of accident during production or commissioning to protect human and machine safety.

More Details

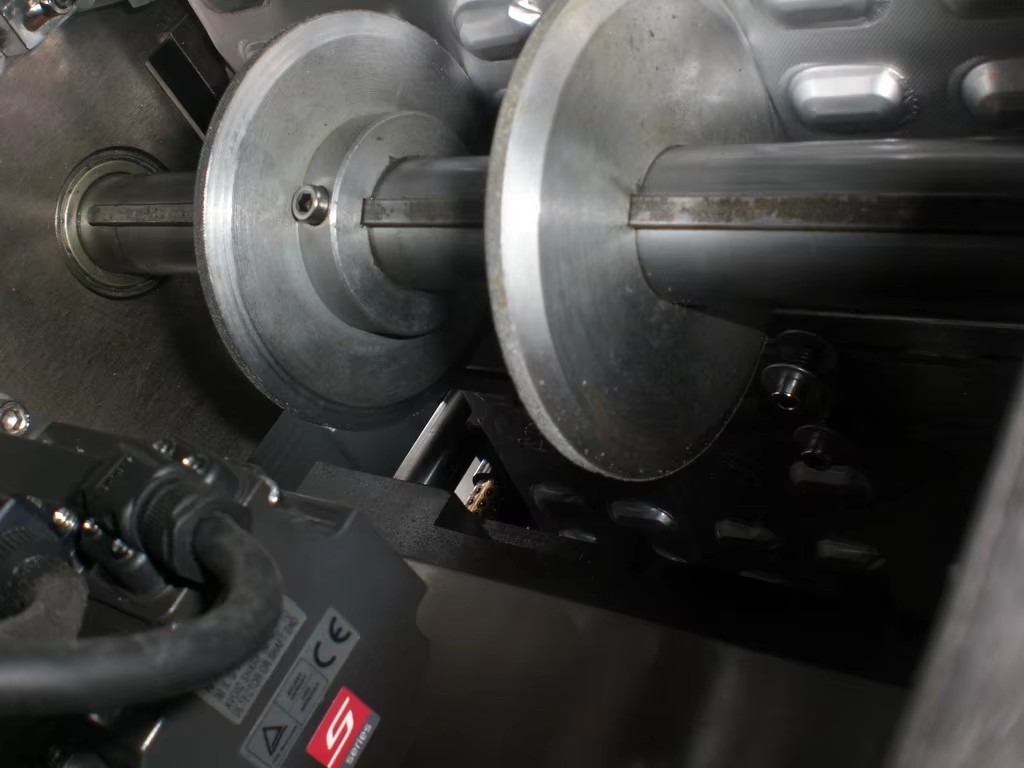

Servo Motor

Servo motor traction is adopted. When adjusting the stroke, just input the number on the touch screen to make it more accurate and save time. It can be connected with PLC to realize cursor version alignment.

More Details

PLC Control

1. The machine has two-level passwords, one for the operator and the other for the personnel of the engineering department.
2. It can automatically test various sensor functions.
3. Cumulative calculation of working hours (without manual reset).
4. Sense and display the temperature of each heating zone.
5. There is a touch screen panel to control the operation of the machine.
6. The upper computer of the machine can be connected to the office computer and can monitor the running state of the machine online.

More Details

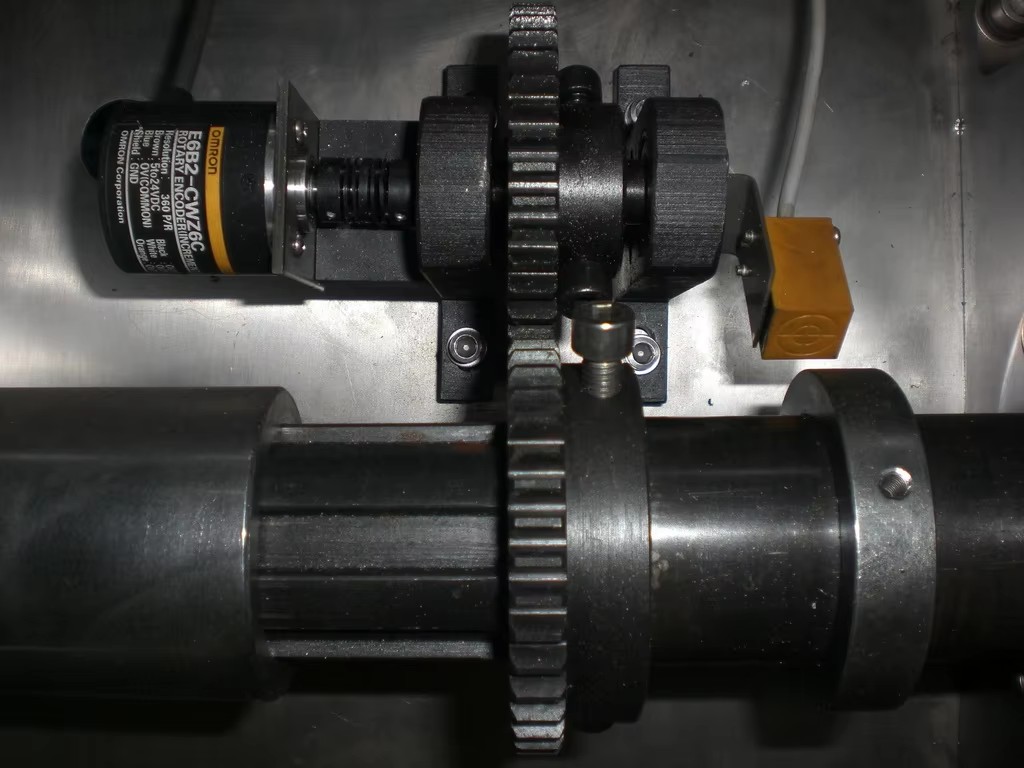

Transmission and control

The encoder is used to replace the proximity switch, and the angle control principle is used to make the action of each station more accurate and the debugging more convenient and fast.
