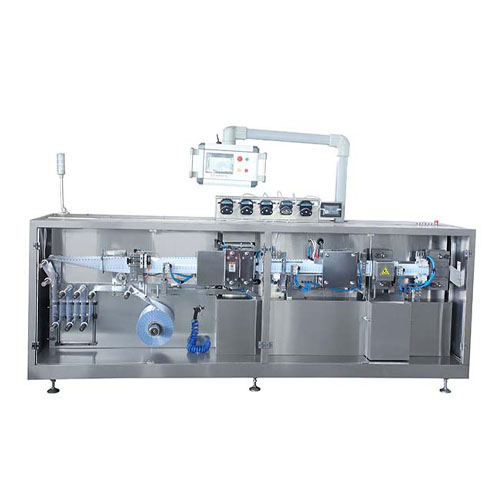

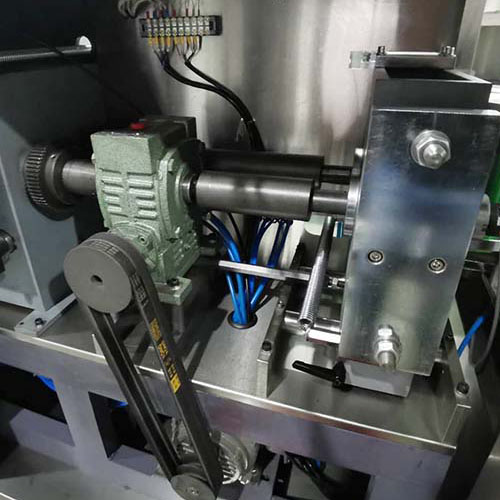

DPT-series Plastic Ampoule Filling And Sealing Machine

DPT-series Plastic Ampoule Filling And Sealing Machine

DPT-series Plastic Ampoules Liquid Filling Machine is our latest research and development of full servo control plastic ampoule bottle liquid filling machine, the equipment can be used for all liquid materials. High precision filling with high-precision double-sided plate matching function.

The machine has CE certification and meets GMP standard.

Product Description
Specification Parameter
Product Application
Product Feature
More Details

Product Description

The machine is suitable for any kinds of packing material, such as PVC laminated by PE, PVC laminated by LDPE.

The machine has CE certification and meets GMP standard.

Specification Parameter

Model	DPT-118	DPT-240
Max Forming Depth	24mm	12mm*2
Cutting Frequency	0-25 blankings/min, 125 ampoules/min (10ml/ampoule)	0-25 times/min, 125 ampoule/min (10ml/ampoule)
Packaging Material	PVC/PE(0.2-0.4)*120mm	PVC/PE (0.2-0.4)*240mm
Capacity volume	1-100ml/ampoule	1-100ml/ampoule
Total Power	6.0kw	8.5kw
Voltage	220V-380V/50HZ	220V-380V/50HZ
Weight	850kgs	1200kgs
Dimension	23008501500mm	3200×850×2000 mm

Product Application

Pharmaceutical industry: oral liquid, healthcare products, physiological saline, lotion, cough syrup, Chinese medicine oral liquid, etc.

Chemical industry: perfumes, car perfumes, human milk, shower gels, shampoos, essential oil, detergents, hand soap liquid, ink, paste products, etc.

Food industry: linseed oil, castor oil, enzymes, honey, Dendrobium and so on.

Product Feature

1

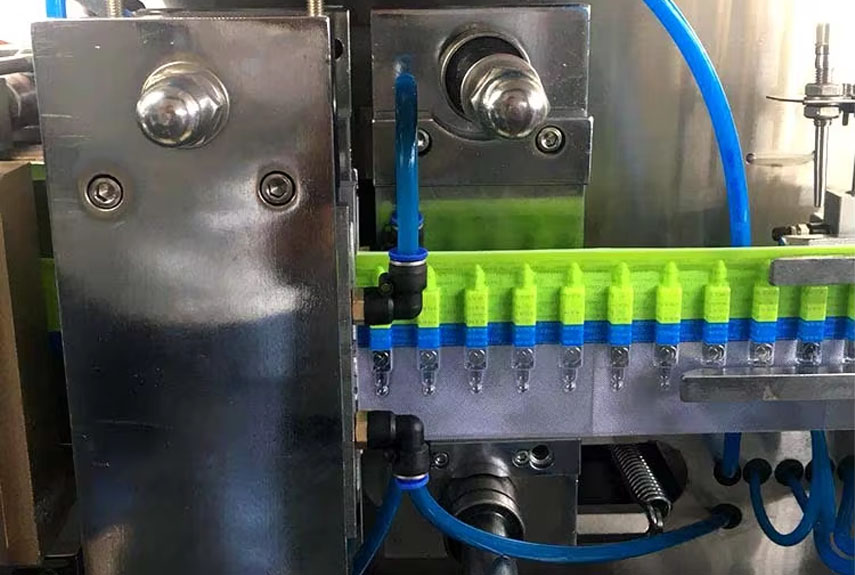

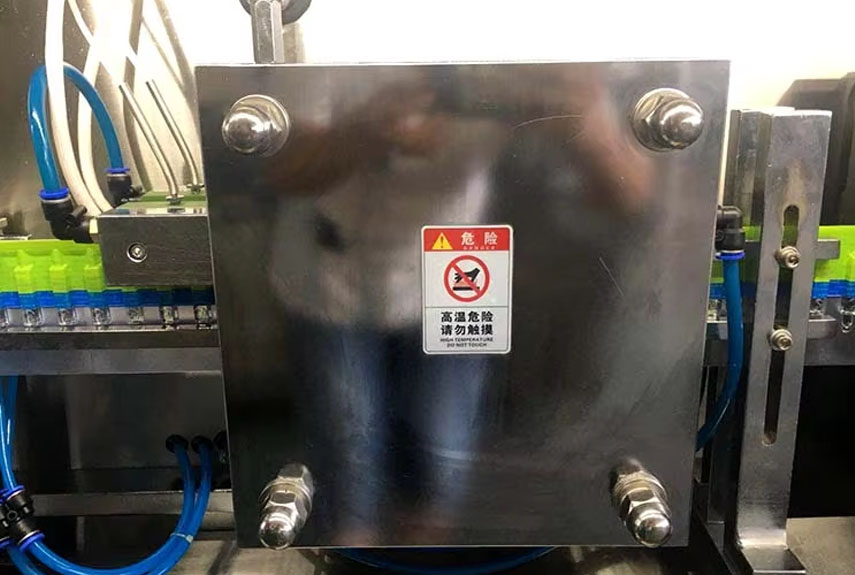

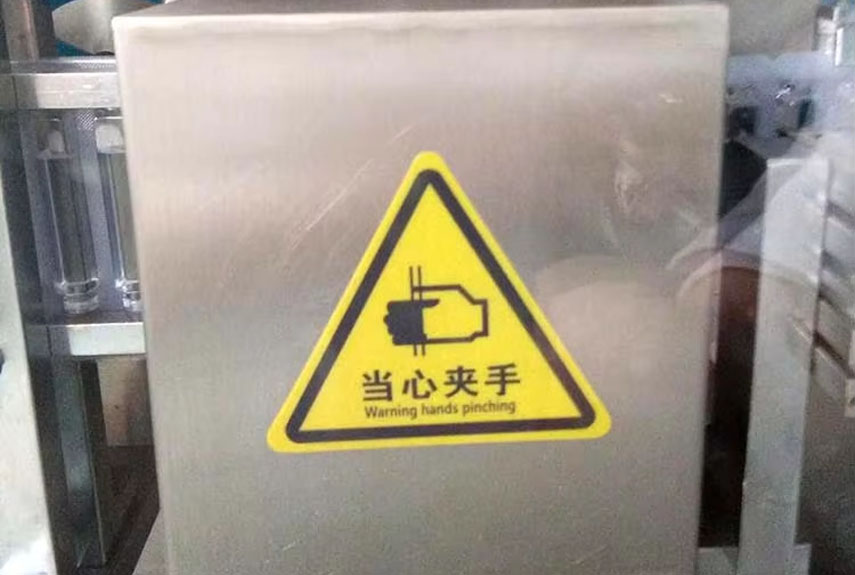

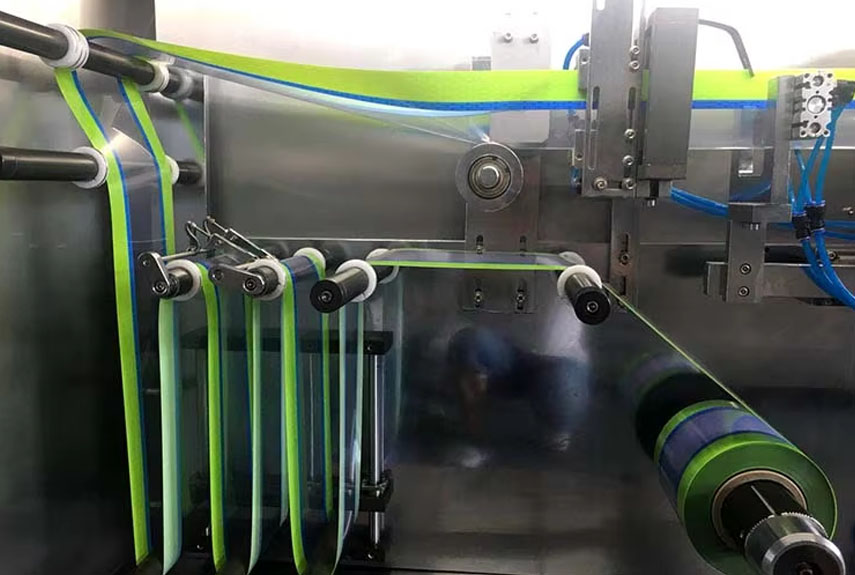

PLC touch screen control, stepless frequency conversion adjustment. Unwinding , bottle forming, filling, sealing, batch number embossing, tail cutting, blanking and slitting, 7 stations automatically complete by PLC.
2

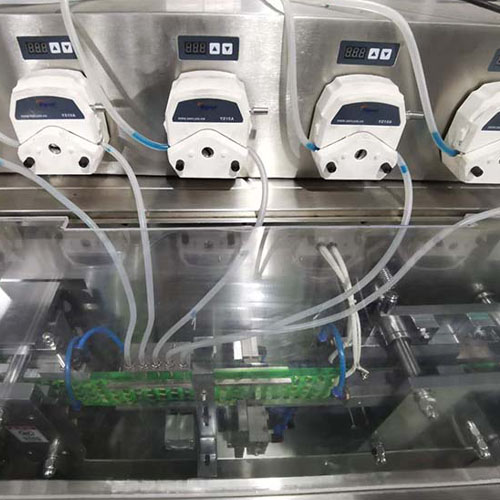

The peristaltic pump filling system has precise measurement and no leak, no foam, no overflow. It is suitable for filling various viscosity products.
3

The main pneumatic partsand electrical parts adopts imported fittings with better stability. The contact parts made of SS316L, and imported silicone tubes. The machine cover and structure are SS304. GMP compliant.
4

Machine can achieve photo-electrical tracking function.
