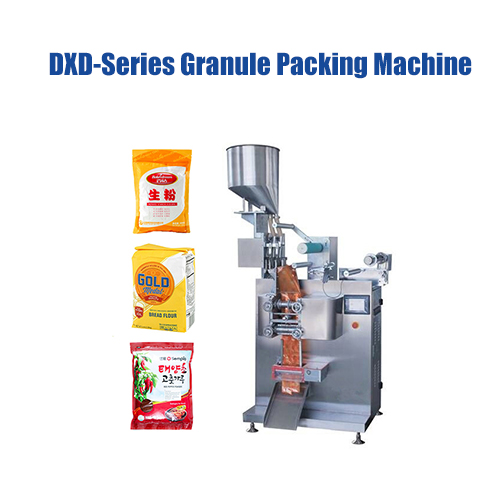

DXD-Series Granule Packing Machine

Suitable for packing loose, non sticky granule material in the pharmacy(medicine), food, daily chemical and other industries, automatic packing into sachet with Measurement requirement, such as Chinese medicine infusion, coffee etc. Crystalline materials as monosodium glutamate, white sugar, salt, etc. Small hot materials as Chinese patent drug, drug and much more.

Product Description
Specification Parameter
Product Application
Product Feature
More Details

Product Description

This series granular goods automatic packing machine is mainly for weighing and packing granual type goods, it can automatic weighing, and filling, bag forming and sealing, all process can finish at one process, with automatic control system and reliabel measuring system, it is ideal equipment for packing industry.

Specification Parameter

Model	DXD-350K	DXD-500K	DXD-900K
Pouch length	50-250mm(L) （adjustable）	50~160mm	50~120mm( Pouch length can change)
Pouch width	50-85mm(W)	50~105mm	50~105mm
Packing speed	30-50times/min depend on pouch size and material	20~50times/nim（depend on pouch size and material）	80times/nim（depend on pouch size & material）
Measuring range	1-50ml	1~80ml	1~80ml
Applicable film	PET/AL/PE PET/PE NY/AL/PE NY/PE
Max width of film roll	350mm	500mm	900mm
Max film roll diameter	300mm	420mm	Φ300mm
Film roll core diameter	75mm	75mm	Φ75mm
Power voltage	220V/ 50HZ(do as customer’s request)	380V50Hz 3P 4W	380V 50Hz （do as customer's request)
Power	5.5kw	12 Kw	12 Kw
Gross Weight	650kg	1200kg	1200kg
Package size	(L)1400mm×(W)1000mm×(H)1700mm	1680x1280x2050mm	1500x1540x2200mm(L x W x H)

Product Application

Food Industry:Spices Flours & Powders Dairy Powders Instant Drink Mixes

Chemical Industry:Detergents Fertilizers & Pesticides Industrial Powders

Cosmetic Industry: Powdered Cosmetics Bathing Salts & Scrubs

Nutraceutical Industry:Herbal Powders Nutritional Blends

Agriculture:Animal Feed Seed Treatments

Product Feature

1

This machine is widely used to pack any loose, non adhesive, granule produce of the Food, pharmacethicl,and chemical industries, such as soup mix, extruded food peanut, melon coffee, instant drinkmix, Monosodium glutamate, oal meal, Detergent powder, & etc
2

Chinese and English display control system, stainless steel box body, after the parameters (length of bag) are set at the display setting unit,the control system then automatically optimizes and matches various movements, thus achieves the best packing speed
3

Equipped with reliable and stable double power source photoelectric detecting system, it guarantees the complete logo of packing bags
4

Controlled by intelligent temperature controller, and all the processes of measuring, making,filling,sealing,code printing, cutting, and counting etc can be done automatically Applying double-sided heating in 3-sides sealing, or 4-sides heat sealing mode .( vibrating plate type granule counting)

More Details

1

A high degree of automatic machine can finish packing at one time from longitudinal sealing,longitudinal cutting, transverse sealing, filling, embossing, notch cutting, cutting Dotted line, transverse cutting to outputting finished sachets

More Details

2

Adaptability of the package film. the sealing temperature of machine is with automatic control, and with high control accuracy (±1C °). Suitable for most complex film packing film in home and abroad, as PET/AL/PE、PET/PE、NY/AL/PE、NY/PE and so on

More Details

3

A PLC is used for automatic control, Each actuating mechanism adopt servo motor to driver, it is precise in automatic in step positioning, reliable performance, convenient to operate, and fully automatic

More Details

4

Fast and convenient to adjust, it can step-less adjust pouch length without changing the mould. And can adjust the functions as longitudinal sealing, transverse sealing, filling, embossing, Dotted line cutting and transverse cutting through man-machine interface

More Details

5

Extra function set up, for example, sachet cutting can can choose dotted line knife, flat cutting knife or abnormal shape knife. Printing can can choose embossing(hard batch) or ink wheel printer. And the matching of alarm requirements and so on
