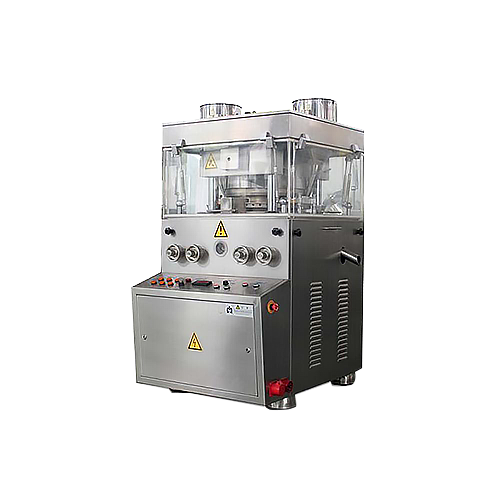

EffeTop-27D Effervescent Tablet Pressing Machine

EffeTop-27D Effervescent Tablet Pressing Machine

The EffeTop-27D is a high-performance rotary tablet press designed for the efficient production of effervescent tablets. With its robust construction and advanced features, it ensures precise compression of granular materials into uniform tablets, meeting the stringent requirements of the pharmaceutical, nutraceutical, and confectionery industries.

Product Description
Specification Parameter
Product Application
Product Feature
More Details

Product Description

EffeTop-27D Effervescent Tablet Pressing Machine is a double-pressing automatically revolving piece-pressing machine which could make grain be pressed to be round piece, be carved characters, special shapes and double color piece prescription. It is mainly used in manufacturing piece prescription for pharmaceutical industry enterprises like chemical industry, foods, electronics.

Specification Parameter

Product No.	EffeTop-27D
Quantity of Punch & Die (set)	27
Max.Pressure (kn)	100
Max.Dia.of Tablet (mm)	25
Max.Thickness of Tablet (mm)	6
Max.Depth of Filling (mm)	15
Rotate Speed (r/min)	30
Production Capacity(pc/h)	40000(double press)
Motor Power (kw)	5.5
Overall Size (mm)	1240×980×1650
Weight (kg)	1950

Product Application

The EffeTop-27D is suitable for compressing various types of effervescent tablets, including:

Pharmaceutical Tablets: Such as vitamin C and other dietary supplements.
Nutraceutical Tablets: Including herbal extracts and multivitamin formulations.
Confectionery Products: Like effervescent candies and flavored tablets.

Product Feature

1

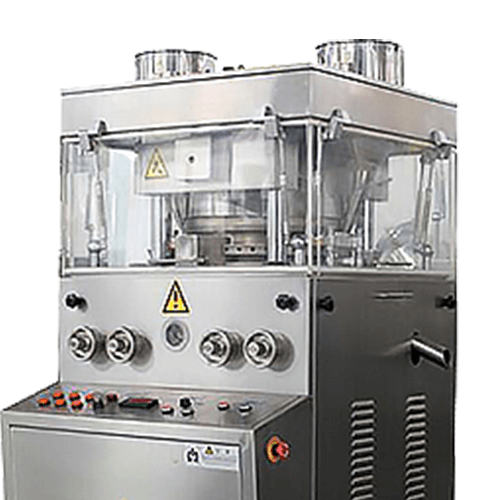

Peripheral casing is closed form which is made of all stainless steel , internal mesa adopt stainless steel material, it can keep the surface glossy and prevent cross contamination and meet GMP requirement.
2

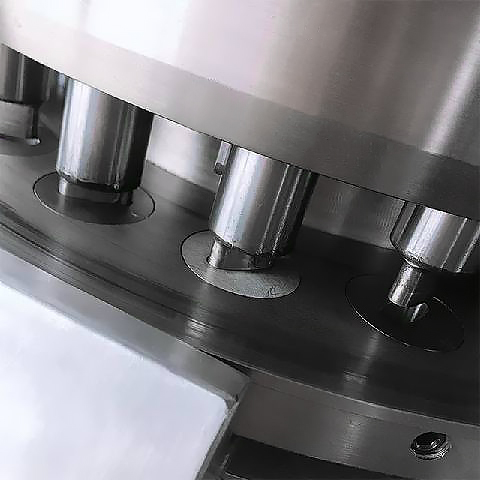

With oil seal ring on punches, prevent oil from pollution tablet and powder leakage.
3

With dust seal ring on punches, avoid powder leakage from turret table.
4

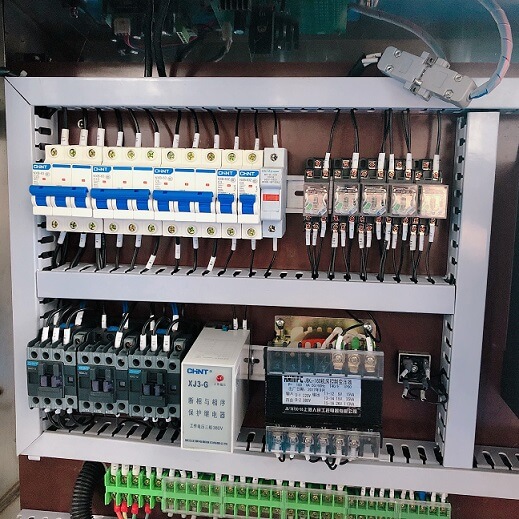

It is equipped with variable frequency speed control device for electrical control, convenient operation, steady running, it is safe and accurate.
5

It is equipped with overload protection device, when pressure overload, it can stop automatically.
6

Improved thicker upper pressing wheel to increase pressure 100kn to 120kn for stable production.
7

Being the leader in trying to use semi-automatic lubrication device and the top of rotary table is equipped organic glass dust prevention device.
8

Mould length from 115 to 113.6mm, improve abrasion resistance and guidance quality.
9

It is equipped with powder absorbing device , can absorb indoor dust .
10

Wearing parts like orbit, feeder, hopper, drive worm, powder taking equipment and it has general structure with ZP33 type product, it is helpful for standardization, generalization and seriation.

More Details

Material Compression:

The EffeTop-27D is designed to compress powders into tablets using both primary and secondary pressing stages, ensuring high density and resistance to premature disintegration, crucial for effervescent formulations.
