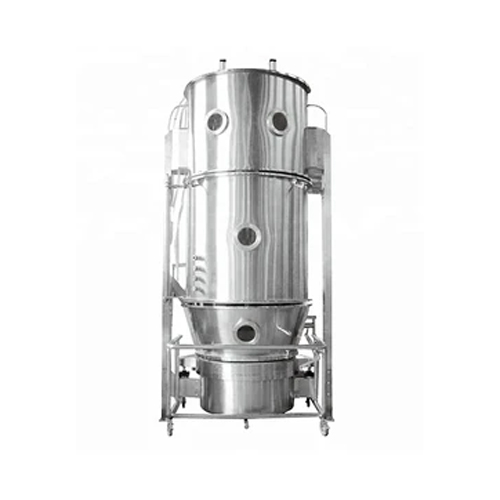

FLP Series Fluid Bed Granulator/Pelletor/ Coater

FLP Series Fluid Bed Granulator/Pelletor/ Coater

FLP Series Fluid-Bed is suitable for granulating, &coating for powder/granules/ in container by spray binder/coating material.

Product Description
Specification Parameter
Product Application
Product Feature
More Details

Product Description

This machine is suitable for granulating, &coating for powder/granules/ in container by spray binder/coating material.

The principle of action is based on: Put the powder material into the fluid bed. The cold air is drawn into the fluid bed through the pre, middle and final filters (HEPA) and passes through the heating chamber behind the main machine, heated to the desired temperature by the heater. The material is fluidized in the fluid bed regularly as turbojet. The binder for granulating/coating material is delivered to the nozzle by the liquid pump, which is sprayed to the fluidized material after being sheared into droplets by air.

The evaporating moisture is drawn out by the fan.

Specification Parameter

Model	FLP-3	FLP-5	FLP-10
Productive capacity	3Kg/batch	1~5Kg/batch	15Kg/batch
Power of fan	4Kw	4Kw	7.5Kw
Electric heater	6Kw	9Kw	15Kw
Total power	10Kw	13Kw	22.5Kw
Pressure of compressed air	0.45Mpa	0.45Mpa	0.45Mpa
Consumption of compressed air	0.6M3/min	0.6M3/min	0.6M3/min

Product Application

1.Drugs granulation and coating
2.Granulation: Tablet particles, granule particles, capsule particles
3.Coating: particles, pill covers, color-prepared, slow-release, films, enteric coating
4.Food granulation and coating Granulated sugar, coffee, cacao powder, cream, juice powder, amino acids, sauce, puffed food
5.Pesticide, paint pigment, dry granulation Powder, granules, block materials

Product Feature

1

FLP model Fluid-bed integrates with mixing powder, making wet material, granulating, drying and coating in one machine, your product quantity is improved, development period is shorted and development funds is reduced.
2

FLP Series electric control cabinet is equipped with the imported advanced engineering products as its key electric components (in accordance with the requirements of the contract). It is reliable and stable in operation. With a good operation interface in control system and the perfect control protection, it is easy and convenient for operators to operate.
