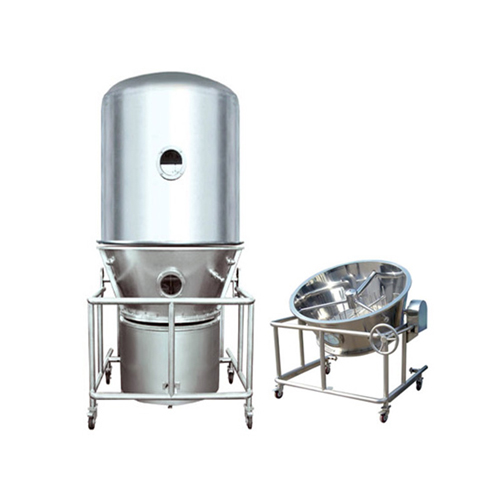

GFG Series High Efficiency Boiling Dryer Fluid Bed Drying Machine

GFG Series High Efficiency Boiling Dryer Fluid Bed Drying Machine

GFG Series High Efficiency Boiling Dryer Fluid Bed Drying Machine is used for drying for wet granules and powder materials of screw extruded granules, swaying granules, high-speed mixing granulation in the fields such as Pharmacy, food, feed, chemical industry and so on.

Product Description
Specification Parameter
Product Application
Product Feature
More Details

Product Description

After air is purified and heated, then it will be introduced from the bottom of induced-draft fan and passed through the screen plate of raw material. In working chamber, the state of fluidization is formed through stirring and negative effect. The moisture is evaporated and removed rapidly and the raw material is dried quickly.

Specification Parameter

Model			GFG-60	GFG-100	GFG-120	GFG-150	GFG-200
hopper volume		L	200	300	400	500	650
capacity		Kg/batch	30-60	50-100	60-120	70-150	100—200
Inlet temp		r	50-100	50-100	50-100	50-100	50-100
Fan	Air volume	m3/h	3530	4500	5100	6350	6350
	Aire pressure	Pa	4800	4412	5860	5300	5300
	power	KW	7.5	11	15	18.5	22
stirring speed		rpm	11	11	11	11	11
stirring power		kw	0.55	0.55	1.1	1.1	1.1
steam consumption		kg/h	140	170	210	240	280
Steam pressure		MPa	0.4	0.4	0.4	0.4	0.4
compressed air pressure		MPa vwww	0.5	0.5	0.5	0.5	0.5
compressed air consumption		m3/h	0.6	0.6	0.6	0.9	0.9
Overall dimension		LWH (mm)	28001350 2700	29001450 2900	31001650 2900	31001650 3000	32001750 3100
weight		kg	1000	1200	1450	1500	1700

Product Application

Drying for wet granules and powder materials of screw extruded granules, swaying granules, high-speed mixing granulation in the fields such as Pharmacy, food, feed, chemical industry and so on.
Large granules, small block, viscous block granular materials.
The materials such as Konjak, polyacry lamide and so on , which will have the volume changed during drying.

Product Feature

1

Fluidized bed is round so that to avoid the dead corner.
2

Inside the bed has installed a mixer, so that to avoid damp materials agglomerating and the channeling during drying.
3

The cloth-bag filter at the top is made of the special antistatic fibers to ensure the safety of the operation.
4

Overturning discharge of the machine is convenient, quick and complete.
5

Operated at sealed negative pressure and designed by GMP.
6

This equipment can be designed and manufactured to be feeding and discharging automatically as requirements.

More Details

Caking Agent Atomizer Adopts Multi-Fluid Spray Gun To Maintain Uniform Spray Particles An To Increase The Rate Of Qualified Products Greatly. No Dead-Corner Of Equipment; It Is Easy And Rapid Of Feeding Or Discharging Materials And Clean Of Washing To Satisfy The GMP Standard.
