GZL Series Dry Granulator

GZL Series Dry Granulator can be used for making tablet, electuary and filling capsule in pharmaceutical, foodstuff, chemical and other industry. Especially for materials that can‘t be granulated by wet granulating.it also can be used together with spray dryer, mixer and so on.

Product Description
Specification Parameter
Product Application
Product Feature
More Details

Product Description

This machine use the residual water in raw material(water content 0.5~5%) to degas，press, granulate powder material into granules

This machine has reasonable structure, stable performance，easy for cleaning, and finished granules has good fluidity

Granules produced by this machine can be used for making tablet, electuary and filling capsule in pharmaceutical, foodstuff, chemical and other industry. Especially for materials that can‘t be granulated by wet granulating.it also can be used together with spray dryer, mixer and so on.

Specification Parameter

Model	GZL-120	GZL-200	GZL-230
Capacity(kg/h)	1-40	80-300	120-400
Roller Diameter(mm)	120x35	200x75	230x80
Mesh Size (mm)	0.2-2
Max Pressure(kn/cm)	16	22	25
Total Power(kw)	4.5	12	22
Overall Dimension(mm)	1100×1000×1700	1250×1650×1980	1300×2000×2100
Weight(kg)	1100	2000	2600

Product Application

Roller Compactor Is Used For Compacting The Powder Into Dry Granules By Pre-Compact, Twin Screw Feeding And Main Compact. Lt' Specially Applicable For The Granulation Of Heat And Moisture Sensitive Material.

Product Feature

1

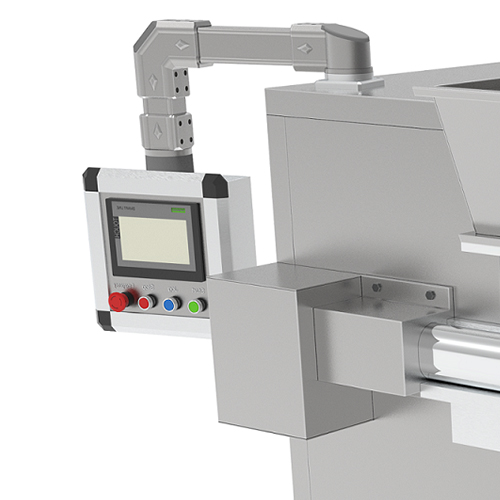

It adopts PLC and touch screen control, frequency converter and other systems. The speed can be adjusted freely within the specified range, and the operation is convenient and stable.
2

The advanced fault detection device will automatically protect and alarm when the working hydraulic system is abnormal or the host is overloaded.
3

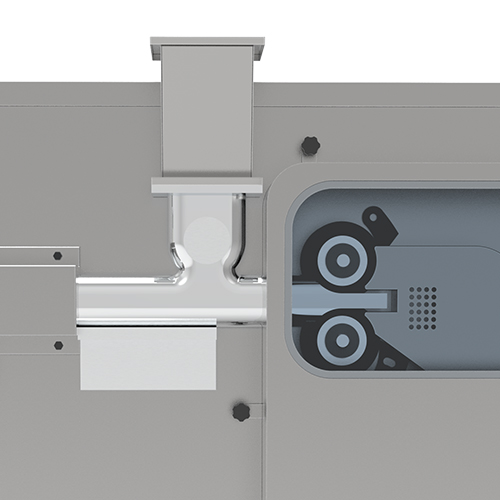

The feeding structure of special stainless steel conical screw or nylon vertebra screw ensures efficient feeding.
4

The surface of the special stainless steel pressure roller is specially treated by gas nitriding technology. The surface of the roller has strong wear resistance and fatigue resistance, and has good corrosion resistance.
5

The roll water circulation cooling can be cooled by ordinary water cooling and forced cooling of the ice machine of the refrigerator to avoid the sticking phenomenon of the material.
6

The introduction of imported brand advanced hydraulic system, simple and reliable operation, high degree of automation.
7

The machine can be equipped with an oscillating/vibration sieve, water chiller and vacuum feeder.
