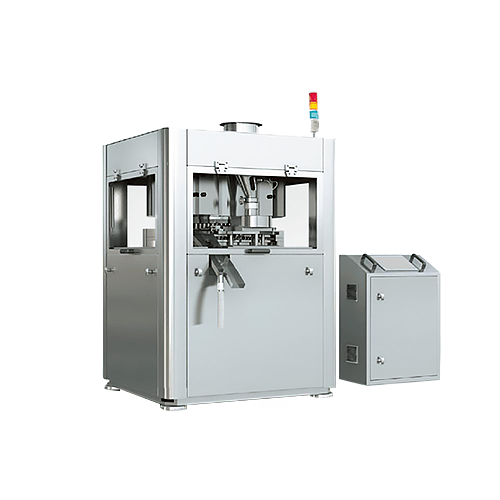

GZP Series High Speed Rotary Tablet Press Machine

GZP Series High Speed Rotary Tablet Press Machine

The GZP Series High-Speed Rotary Tablet Press Machine is a state-of-the-art, high-output tablet press designed for the pharmaceutical, chemical, and food industries. Known for its exceptional precision and reliability, it efficiently produces a wide range of tablet types, including round, oval, and irregularly shaped tablets. Featuring a robust design and GMP-compliant construction, this machine supports large-scale production while maintaining consistent tablet quality.

Product Description
Specification Parameter
Product Application
Product Feature
More Details

Product Description

High Speed Rotary Tablet Press Machine series have advantages of high accuracy, speed and high-degree programmed combination of years of experiences on producing high-speed tablet press fulfilled the standardization, modularization serialization of production. The advanced and reasonable design is the foundation of extraordinary quality to meet GMP standard, it can press two layers, annular, round, engraved and irregular tablets in pharmaceutical, food, and chemical industries.

Specification Parameter

Product No.	GZP265-16	GZP370-26	GZP620-45	GZP720-51
Quantity of Punch & Die (set)	16	26	45	51
Tooling Type	D	D	D	D
Main Pre-pressure (kn)	20	16	16	100
Max.Pressure (kn)	100	100	100	100
Max.Dia.of Tablet (mm)	25	25	25	25
Max.Length of Shaped Tablet (mm)	25		25	25
Max.Thickness of Tablet (mm)	10	10		7.5
Max.Depth of Filling (mm)	20	20	20	18
Middle Die Diameter (mm)	38.1	38.1	38.1	38.1
Punch diameter (mm)	25.35	25.35	25.35	25.35
Rotation Speed (r/min)	110	13-110	16-70	8-80
Production Capacity (pcs/h)	105600	20000-171600	86400-350000	47000-470000
Voltage (v/hz)	380/50	380/50
Motor Power (kw)	5.5	7.5	11	11
Outside Size (mm)	700×1000×1750	820×1100×1750	1510×1380×2000	1300×1300×2000
Weight (kg)	1200	1600	3800	4800

Product Application

Pharmaceutical Industry: Production of tablets, capsules, and other solid dosage forms.
Nutraceutical Industry: Manufacturing of dietary supplements in tablet form.
Food Industry: Compression of food-based ingredients into tablets or pill forms.
Chemical Industry: Pressing of chemical compounds into standardized tablet shapes for easy packaging and distribution.

Product Feature

1

Double-sided discharge chutes, high productivity. No handwheel with machine, automatic drive by synchronous motor, it can complete realize automatic production.
2

Separate control cabinet to operate machine, separated production area from operation area to ensure the safety for operator and sanitation for production. Adopts encoder to count, measure and display control is accurate.
3

Main pressure system, pre-pressure system, filling system, feeding system adopt modular design. Simple structure. These modular parts can be freely adjusted or removed. Non-interference between maintenance are easy. The main pressure and pre-pressure are the same structure which can be interchanged each other. Both main pressure and pre-pressure are all 100kn which make it easier for forming tablets.
4

Tri-wheeled double layer feeding system.

The upper impeller can increase powder flow and balance powder density.

The lower impellers are used for feeding and dosing to ensure the uniformity of feeding.

Use servo motor to adjust dosing cam track which an control filling depth to ensure accurate dosing.
5

Force-feeding device controls the flow of powder and ensures the accuracy of feeding. Feed is easy to be disassembled and platform is easy to be regulated. No dead area in press chamber and easy to be observed and cleaned.

More Details

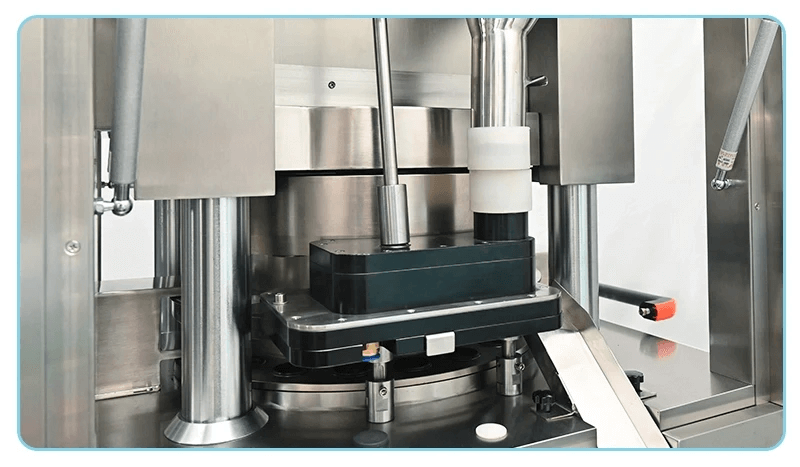

It is equipped with Organic-glass perspective window for tablet producing observation. Each perspective window could be fully opened and easy for cleaning and maintenance.

More Details

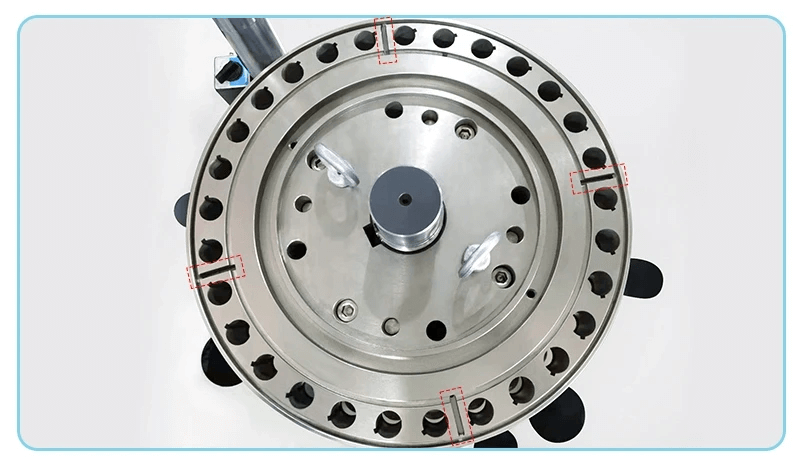

The material of the machine is made of stainless steel with totally closed, the surface of turntable deal with polished and prevent cross pollution which meet the GMP standard.
