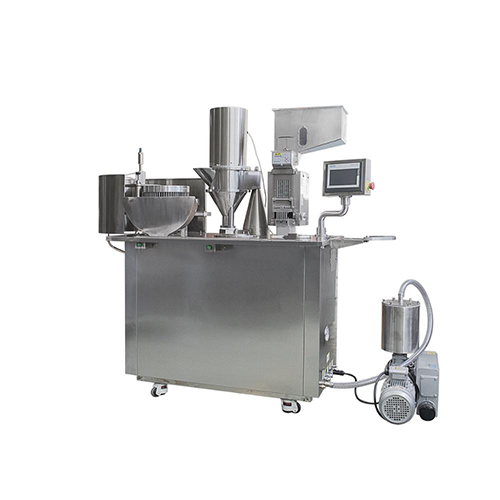

JTJ-H Semi Automatic Capsule Filling Machine

JTJ-H Semi Automatic Capsule Filling Machine

JTJ-H Semi-Automatic Capsule Filling Machine The product is special capsule filling machine which is suitable for medium and small pharmaceutical factory, hospital preparation lab, etc. The machine adopted programmable control system, touch panel operation, stepless transduction speed-shift, and electronic automatic counter. And it automatically completes the action of position, separation, filling, locking, etc. The dosage is accurate, and the operation is convenient. The overall machine is made of stainless steel, and it is suitable for the capsule which is filled with powder and grain.

Product Description
Specification Parameter
Product Application
Product Feature
More Details

Product Description

Specification Parameter

Model:	JTJ-H
Capsule Size:	#00-#5
Vacuum Pump:	XD-040(40m³/hour)
Capacity Of air compressor:	0.1m³/min
Noise:	Less than 60dB (A)
Overall Dimensions:	12007001600mm
Packing Dimensions:	18008001800mm
Net Weight:	600Kg
Gross Weight:	650Kg
Capacity:	12,000capsules/hour
Capacity:	With 2 pcs of capsule plate ,the capacity can reach 20,000- 25,000capsules/hour
Power Supply:	220V 50Hz 2.2Kw

Product Application

Capsule Size 00 to 5#

Product Feature

1

It adopts Cycloid Motor for making machine in lowest sound running. There three Cycloid Motor in this machine.
2

DTJ-H adopts Touch Button for operating. It will be hard for making powder into Controlling System.
3

Easy for Changing Mould from Size 00 to 5#.
4

The machine is whole Body stainless steel. Capsule Feeder is Copper, Capsule Disk is Aluminum Disk, Capsule Locking position Copper. (For Detailed please see following Mould List)
5

We call the Semi Automatic Capsule Filling Machine operating THREE STEPS, Operator is easy to know how to Separate Capsules, Filling Capsules, Locking Capsules means Output.

More Details

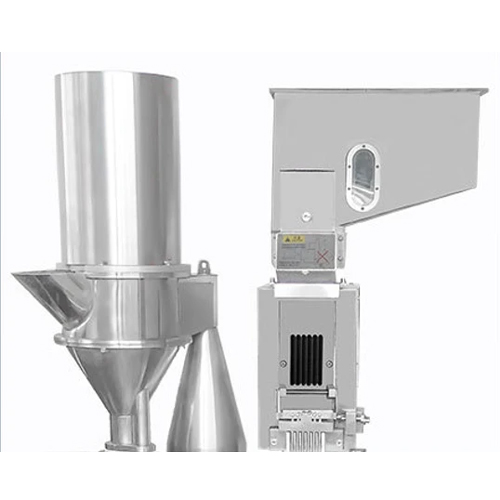

Feed Hopper

The Device On The Left Side Is For The Storage Of Empty Capsules And Uses a Screw Mixing Device.

More Details

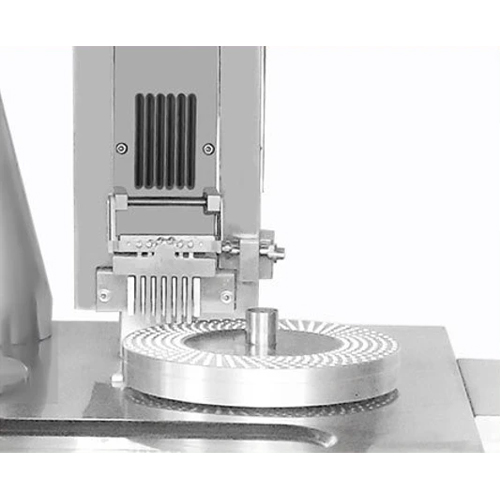

Pods

This Device Is Equipped With An Empty Capsule Output And a Capsule Plate, Which Can Automatically Separate The Empty Capsules And Load Them Into The Capsule Mold.

More Details

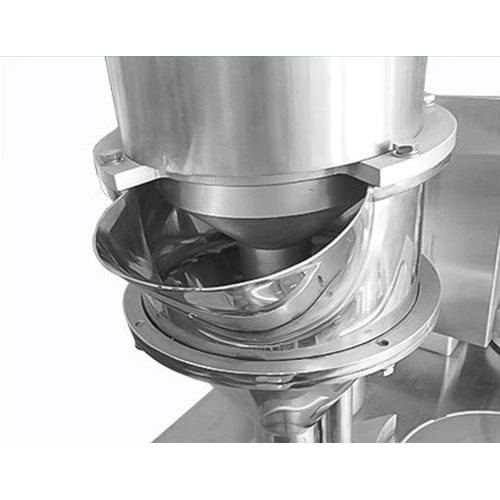

Powder Inlet

Equipped With Stirring Motor, Convenient For Powder Filling.

More Details

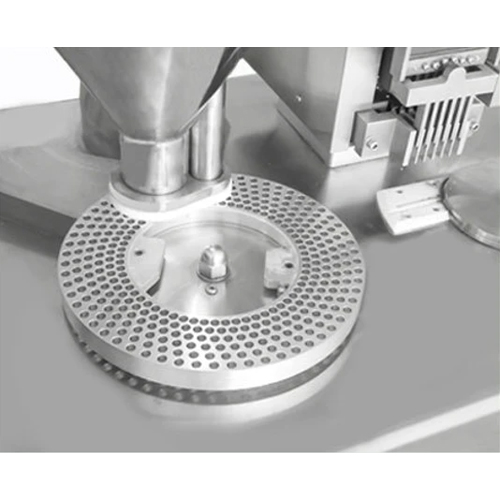

Powder Filling Device

This Device Can Fill The Powder Into The Capsule Body Automatically.
