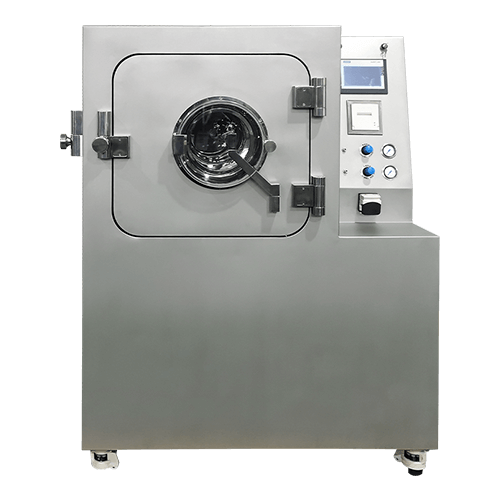

LabCoa-series Lab Scale R&D Coating Machine

LabCoa-series Lab Scale R&D Coating Machine

The LabCoa-series Lab Scale R&D Coating Machine is an experimental special equipment widely used for sugar coating, aqueous phase and organic film coating of Chinese and Western tablets, pills and candies.

Product Description
Specification Parameter
Product Application
Product Feature
More Details

Product Description

The equipment is manufactured in strict accordance with the "GMP" requirements of the Pharmaceutical Industry Association.

It is a new type of high-quality, high-efficiency, reliable, clean, energy-saving, small footprint, easy to operate, and new-type high-efficiency coating equipment that meets SOP requirements.

Specification Parameter

Model	LabCoat-5H	LabCoat-lOH	Labcoat-20H	Labcoat-40H
Working capacity (kg/Batch based on bulk density of 1)	5	10	20	40
Speed adjusting range of coating drum(rpm)	45473	45473	45468	45403
Regulating range of hot air temperature(℃)	Normal temperature ~80℃
Filtration accuracy of hot air(.m)	0.5 \|im( 100000 grade)
Dimension(m)	1.25×0.9×1.63	1.37×1.1×1.79	1.4×1.1×1.825	1.1×1.76×1.95
Weight( kg)	500	600	800	850

Product Application

Ideal for R&D departments in pharmaceutical and confectionery industries for testing new formulations, developing coating techniques, and conducting quality evaluations.

Product Feature

1

Designed specifically for experimental and small-scale production.
2

Provides a versatile solution for sugar coating, aqueous phase coating, and organic film coating of tablets, pills, and candies.
3

Compact and energy-saving design with user-friendly operation.
4

Built to meet stringent GMP and SOP standards, ensuring high-quality production.

More Details

Agitating and Holding Tank

Designed to maintain a homogeneous coating solution throughout the process. The tank includes a high-performance agitator to prevent sedimentation and ensure uniform distribution of coating materials. The holding capacity can be customized for various batch sizes.

More Details

Outboard Discharging Device

Facilitates the rapid and efficient discharge of coated materials. Positioned externally for easy access and minimal contamination risk, it significantly reduces downtime between batches.

More Details

Built-in Discharging Device

Integrated within the coating machine, this device ensures a seamless transition of coated products from the coating drum to the collection unit. Its compact design optimizes space without compromising functionality.

More Details

Coating Paddle

Engineered to provide even distribution of the coating material over the product surface. The paddles are adjustable for different coating techniques, ensuring a consistent and high-quality finish.

More Details

Spray Gun

Equipped with precision nozzles for fine and uniform spraying of coating solutions. The spray gun is capable of handling a variety of coating materials, ensuring minimal wastage and consistent application.
