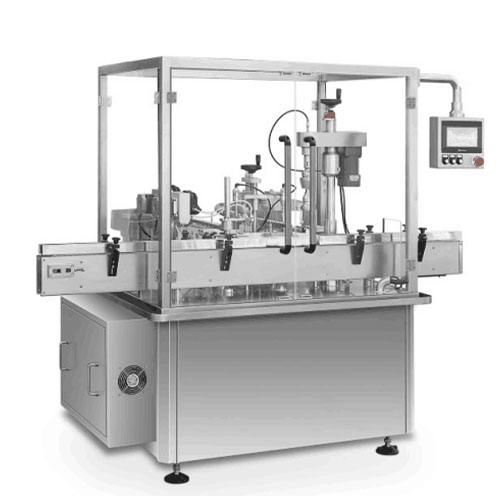

LiqFill-Series Eyedrop Liquid Filling Machine

LiqFill-Series Eyedrop Liquid Filling Machine

Eyedrop filling, plugging &capping machine for the application of round eyedrop bottle or similar ones, auto accomplish product filling, plug place, cap place, cap screw-on.

Product Description
Specification Parameter
Product Application
Product Feature

Product Description

This machine uses a high-precision ceramic pump to perform metering and filling, with high filling accuracy and multiple functions such as automatic liquid filling, adding inner plugs, capping, and screwing. The entire machine table is equipped with imported plastic bearings that do not require refueling, avoiding contamination from medication and achieving complete automation. Can be accompanied by a Class 100 laminar flow hood for isolation.

This device fully complies with the new GMP requirements

Specification Parameter

Model Name	DXYG1-1-1	DXYG2-1-1	DXYG4-2-2
Kind of bottle	Round eyedrop bottle or similar
Bottle size	Min. Ø 20mm Max. Ø30mm
Speed	30bpm on 10ml~5ml	50bpm on 10ml~5ml	100bpm on 10ml~5ml
Filling volume*	5ml~30ml
Filling accuracy	±2%
Power*	220V 50/60Hz 1.5kw
Compress air require	50~70L/min, 4~6bar
Machine size mm	Length 2500, width 1420, height 1500
Machine weight:	900kgs

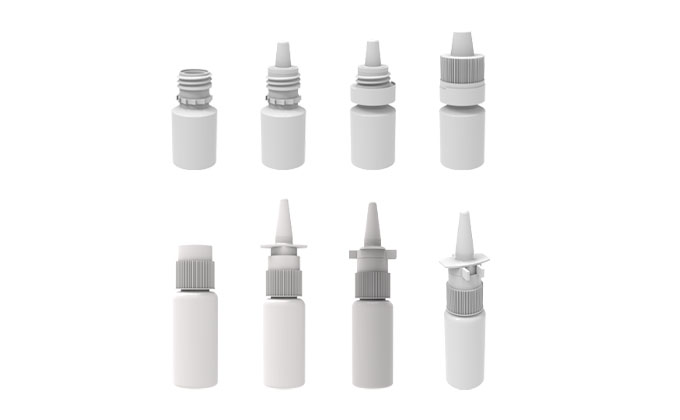

Product Application

Suitable for circular eye drops or similar bottles

Product Feature

1

Microcomputer setting, precise loading, easy operation
2

Ceramic pump filling system with no dripping and high precision
3

Automatic shutdown function, which can automatically shut down any track in case of continuous no filling or no internal blockage
