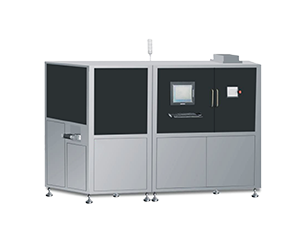

LTBT-C70 Fully Automatic Round Tablet Inspection Machine

LTBT-C70 Fully Automatic Round Tablet Inspection Machine

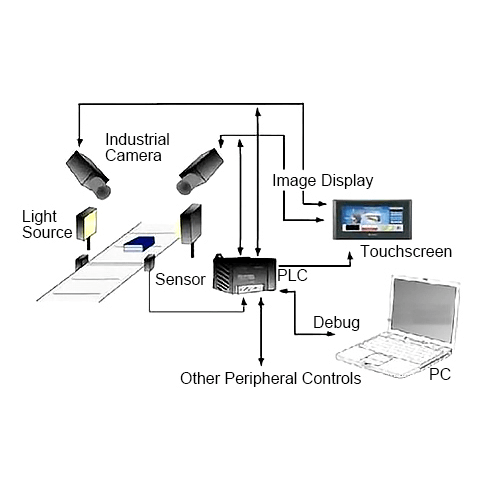

This product is based on the appearance inspection of different round tablets on the aluminum-plastic blister production line. The machine vision inspection is mainly divided into three parts: image acquisition, image analysis and processing, display results and control. The system mainly consists of industrial computers, industrial cameras, LED light sources and photoelectric sensors, PLC programmable controllers and PCI boards.

Product Description
Specification Parameter
Product Application
More Details

Product Description

The round tablets can be separated from unqualified defective products through the elimination software, ensuring the quality of the round tablets before leaving the factory.

The tablet inspection machine is a high-precision automated device used to detect appearance defects of round tablets. It is widely used in quality control in the pharmaceutical industry. The device can detect 100% of defects such as tablet defects, missing corners, cracks, black spots, scratches, dents, foreign matter, mixed tablets, cracks, and pockmarks, meeting GMP requirements. Through fully automated testing, the tablet inspection machine can effectively replace manual operations, improve testing efficiency and consistency, reduce the risk of unqualified products entering the market, and provide pharmaceutical companies with efficient and reliable quality assurance tools.

Specification Parameter

Product Number:	LTBT-C70
Detection Speed:	200,000 capsules/min
Power:	380V-50/60Hz-5.0kw
Size:	L2000 X W1100 X H2000m
Air Consumption:	5 – 7Kg/cm²
Weight:	600kg

Product Application

The equipment can achieve 100% detection of various defects such as tablet defects, chipped corners, cracks, black spots, scratches, dents, foreign matter, mixed tablets, cracks, and pockmarks, meeting GMP requirements.

More Details

Work process

The round tablets are transported to the hopper of the round tablet detector through the elevator, and are arranged and transported to the track by the sorting mechanism. When the round tablet reaches the optical fiber sensor, a trigger signal is sent to the light source/camera. When the light source lights up, the camera takes a picture of the round tablet. At this time, the image acquisition card sends the captured image to the image detection software in the PC, and the image detection software performs NG/OK analysis on the image. The analyzed image is sent to the PCI board, and the PCI board is sent to the elimination actuator to eliminate the NG round tablets. OK round tablet will automatically enter the next function position.
