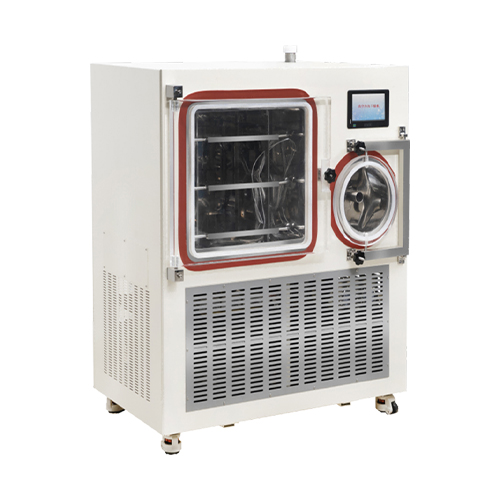

LTDG-Series Pilot Freeze Dryer

It is applied not only in pharmaceutical pilot workshop and small batch production but also in food or medicinal freeze-dry-ing process.

Product Description
Specification Parameter
Product Application
Product Feature
More Details

Product Description

Pilot freeze dryer is a small in-situ freeze-drying equipment. It is applied not only in pharmaceutical pilot workshop and small batch production but also in food or medicinal freeze-dry-ing process. Situ freeze-drying technology is one of advanced international constructer design which avoid the contamination during materials transfer and realize the dry sublimation automatically.

Pilot freeze dryer is with rack heating programmable function and memory freeze-drying curve which convenient users to get the freeze-drying production technology. lt is divided into standard type and gland type.

Specification Parameter

Model	LTDG-20S	LTDG-30T	LTDG-50S	LTDG-50T
Type	Standard	Top-press	Standard	Top-press
Shelf temp (ºC)	-50 to 70
Final condenser temp (ºC)	-80
Vacuum Degree (Pa)	<10<>
Freeze drying area (m2)	0.24	0.3	0.5
Condenser capacity (Kg/24h)	6.5		10
Shelf specification (LWH mm)	30040020		30045020
Qty of shelf	2+1	3+1	4+1
Distance between shelves(mm)	145		90
Liquid material loading capacity (L)	4.5	7	10
Temperature uniformity (ºC)	±1
Cooling mode	Air cooling
Electric heater defrost	Y
Cap seal method	N	Hydraulic pressure	N	Hydraulic pressure
Penicillin bottle Φ22	468	702	1040
Penicillin bottle Φ16	864	1296	1944
Penicillin bottle Φ12	1584	2376	3456
Power supply (V/Hz)	220V/50Hz,60Hz	220V/50Hz,60Hz	220V/50Hz,60Hz,
			380V/50Hz,60Hz
Exterior dimension (WxDxH mm)	12007501250/1600		12008501500/1850

Product Application

1.Pharmaceutical industry: It is used for dehydration and preservation of Chinese and Western medicines such as serum, plasma, vaccines, enzymes, antibiotics, hormones, etc.

2. Food industry: vacuum freeze-drying technology is mainly used in the food industry to dry coffee, vegetables, fruits, strawberries, meat, etc., which can keep the color, flavor, taste, shape and nutritional components of food unchanged, and facilitate long-term storage and transportation.

3. Nutrition and health care: The vacuum freeze-drying technology can also be used to dry royal jelly, pearl powder, ginseng, turtle powder, black ant powder, snake powder, etc. It can preserve its nutritional ingredients and active ingredients for a long time.

Product Feature

1

It drys at low temperature in order to make protein degeneration, micro-organisms loss biological activity.
2

The material in the volatile components and nutrients heated degeneration of and aromatic ingredients loss a little because of the low-temperature drying.
3

It is almost impossible for microorganisms and the role to grow so that the material can maintain the original character in the low-temperature drying process.
4

The volume and shape essentially doesn’t change and has a strong water uptake after drying.
5

Because it has little oxygen under the vacuum drying, the vulnerable materials have been protected.
6

It can remove 95-99.5 percent of water, and the retention period lasts longer.

More Details

Reliable Performance

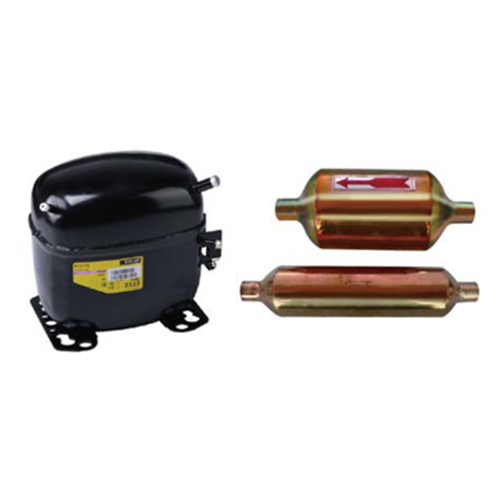

1. World famous compressor (SECOP) ,high performance. lubricating oil with Sole design ensure the compressor work stable in high and low environment which enhance the compressor life.
2. World famous dry-filter to avoid moisture and Impurity went into refrigerant system.

More Details

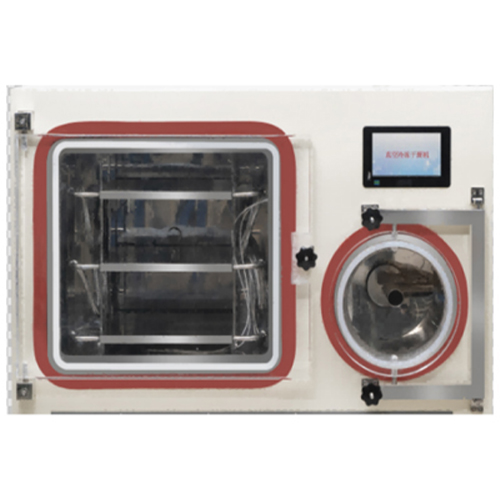

Drying Chamber Design

1. In-situ freeze-drying design, avoid the contamination during material transfer.
2. High transparent organic glass in Drying chamber helps users to observe materials changes.
3. Cold trap and drying chamber are separately designed which is with high moisture capture and fast dry time.

More Details

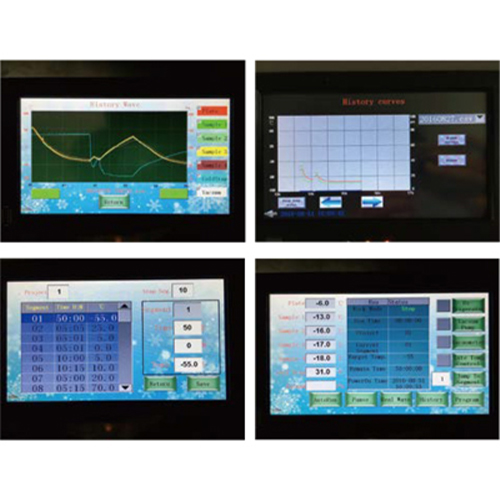

Adjustable Rack Temperature

1. It is two types manual and automatic type.
2. The Automatic process can setting 36 programs, each programs can set 40 temperature range,it can meet different
requirements on freeze-drying process.
