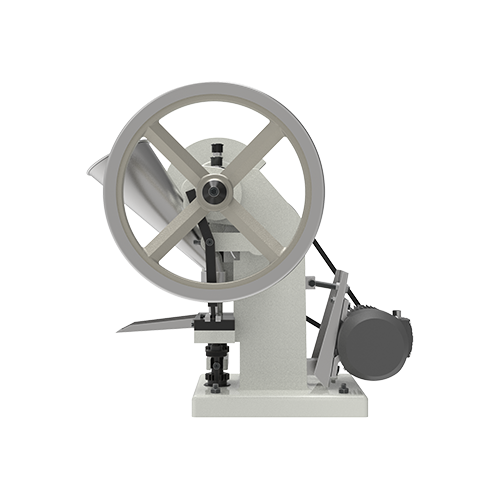

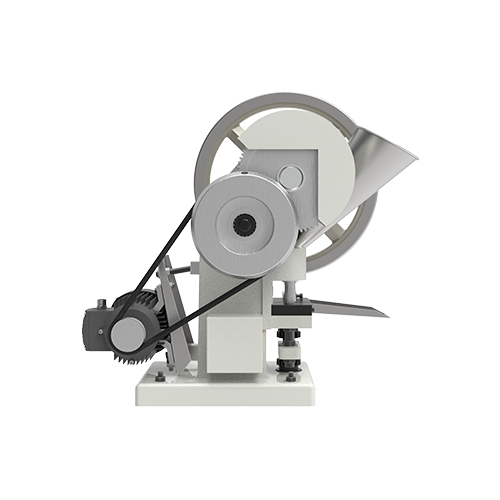

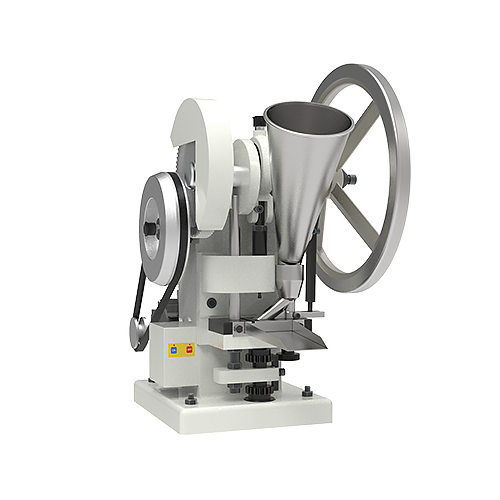

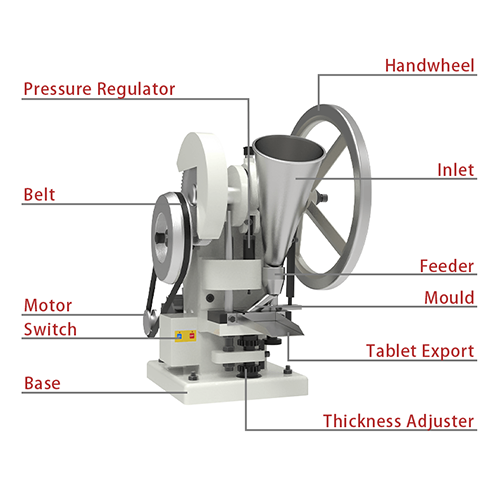

LTDP Series Desktop Tablet Press Machine

LTDP Series Desktop Tablet Press Machine

LTDP-1.5, 5, 6 single punch desktop tablet press machine can press various abnormity and normal tablet, and press the tablets in two sides with printing.

Product Description
Specification Parameter
Product Application
Product Feature
More Details

Product Description

Single punch tablet press machine is suitable for the industries of Chemical, Foodstuff, Electronic and etc. It is used of pressing medicinal tablets, catalysts, sugar tablets, Calcium tablets, Coffee tablets, Powder Metallurgical, Electronic elements and various tablets of pesticide and fertilizer. etc. in such small-batch production, laboratory and hospital fields. Meanwhile, that machine also can press various abnormity and normal tablet, and press the tablets in two sides with printing as well.

Specification Parameter

Model	LTDP-1.5	LTDP-5	LTDP-6
Max.Pressure	15KN	50KN	60KN
Max.Dia.	Round:Φ12mm	Round:Φ20 mm	Round:Φ25 mm
Max.Filling Depth	11mm	18mm	18mm
Max.Thickness	6mm	7.5mm	8mm
Capacity	5000pcs/hour	4500pcs/hour	3500pcs/hour
Motor Power	550W.1400r/min 220V50Hz singlephase	750W.1400r/min 220V50Hz singlephase	750W.1400r/min 220V50Hz singlephase

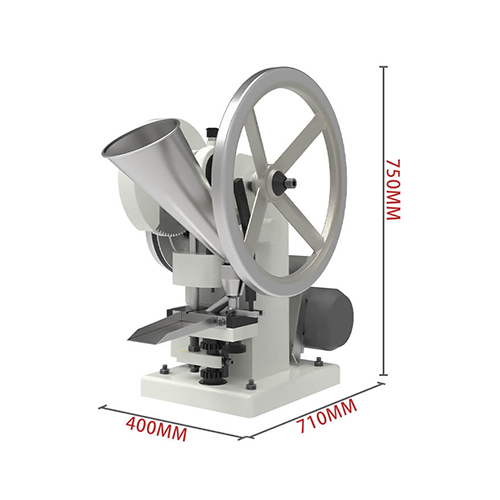

Overall Dimension	750×380×659mm	710×400×750mm	710×400×750mm
Weight	114kg	134kg	164kg

Product Application

Suitable for pressing medicinal tablets, catalysts, sugar tablets, calcium tablets, coffee tablets, powder metallurgical components, electronic elements, and various pesticides and fertilizers. Specific uses include:

- Vitamin Press: Ideal for producing vitamin tablets in various shapes and sizes.

- Milk Tablet Press: Perfect for creating compact and easily consumable milk tablets.

- Herbal Supplement Press: Efficiently produces herbal tablets with consistent quality.

Product Feature

1

Adjustable Filling Depth and Tablet Thickness: Easily modify material filling depth and tablet thickness for precise production control.
2

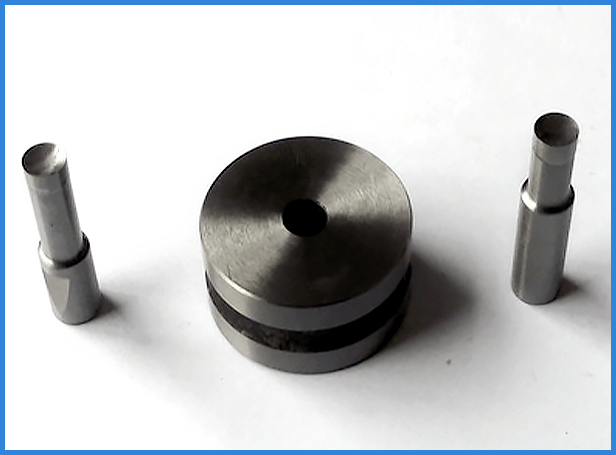

Different sizes and shapes of tablets can be pressed by changing different molds. It is used to press various granular materials into round tablets or other special-shaped tablets.
3

Versatile Mold Options: Capable of producing a wide array of tablet shapes and sizes through mold changes, including abnormal and regular tablets with double-sided printing.
4

Compact and Portable Design: Small, lightweight machines that are easily transportable, ideal for small-batch production, laboratories, and hospitals.
5

Small size, light weight, flexible movement and simple operation.
