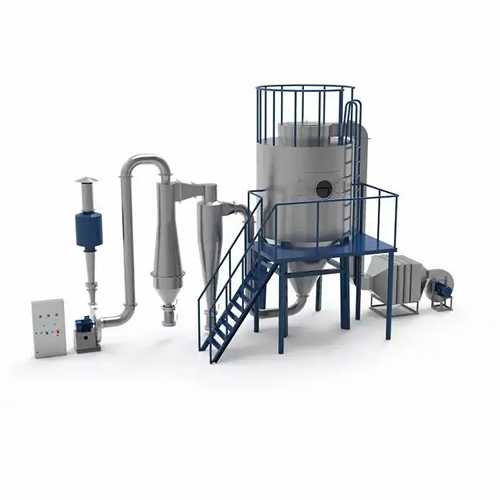

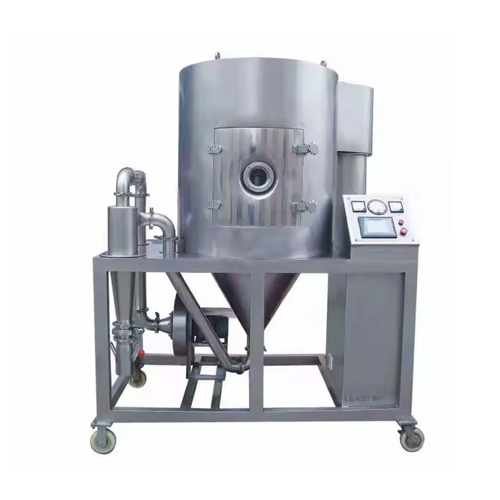

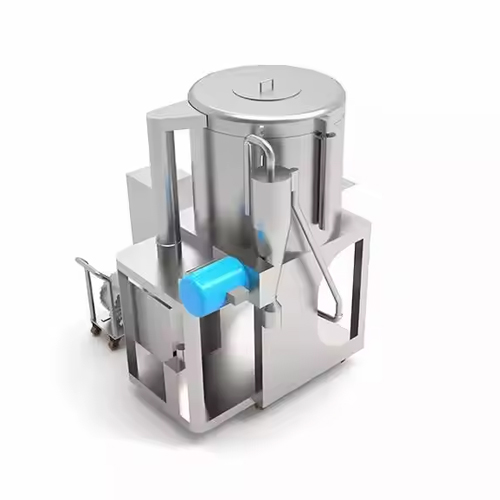

LTPG Spray Drying Machine

Spray drying is the widest used technology in the liquid shaping technology and in the drying industry. Centrifugal Atomizing (Spray) Drying Equipment is most suitable for producing powder, particles or solid block products from materials of solution, emulsion, soliquoid and pumpable paste states. Therefore, spray drying is useful to create the desired particle size, residual water contents, the stocking density, and the particle shape needed to meet precise standards.

Product Description
Specification Parameter
Product Application
Product Feature

Product Description

Specification Parameter

Model	5	25	50	100	150	200-2000
Inlet temperature	140-350°C（automatic control）
Outlet temperature	80-90°C
Max. evaporation(kg/h)	5	25	50	100	150	200-2000
Centrifugal spraying nozzle transmission mode	compressed air transmission	mechanical transmission
Rotation speed (r.p.m)	25000	22000	21500	18000	18000	15000
Spray disc diameter	50mm	100mm	120mm	140mm	150mm	180-340mm
thermal source	electricity	electricity	electricity + steam, fuel, oil, fuelgas			solved by user
Max. electric heating power (kw)	8	31.5	60	81	99
Overall dimension	1.80.932.2	32.74.26	3.73.25.1	4.64.26	5.54.57	optional
Powder recollection (%)	95	95	95	95	95	95

Product Application

The air is through the filter and heater, the air distributor which enters the dedicator top, the hot air takes the form of spiral and enters the dedicator evenly. The material liquid , from the material liquid trough from the at odds with the community or the leadership atomizer for the dedicator top of pump sending through the filter, make the material liquid gush out into an extremely small calorific drop, material liquid and hot air flow and keep in touch, moisture evaporate rapidly, within extremely short time dry to become finished product, finished product discharge by dry tower bottom and whirlwind separator, the waste gas is discharged by the air blower.

Product Feature

1

High speed drying. 95%-98% of moisture will be evaporated in high temperature airflow in a flash, only needs seconds time.
2

Adopts Single position spray drying to make the liquid drop and hot air running in same position. This is machine is also fit for the materials which are sensitive with Heating.
3

Because the drying is processed in a flash, so the finished product is Ball Shape with good mobility and good solubility.
4

The machine is Simple production with easy operation control system used for drying 50-80% moisture contained materials, even some special material with 90% moisture contained can be dried in a flash to powder.
5

All contact parts are made in SS304.
