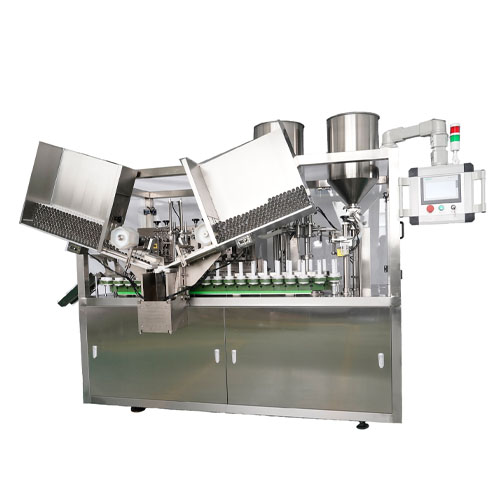

LTRG-120 Double Head Automatic Tube Filling and Sealing Machine

LTRG-120 Double Head Automatic Tube Filling and Sealing Machine

The automatic tube flling machine LTRG-120 is mainly used to fling ointment materials into cylindrical, cappedtubes of Aluminum or Composite and seal the tubes ends.

Product Description
Specification Parameter
Product Application
Product Feature

Product Description

The automatic tube flling machine LTRG-120 is mainly used to fling ointment materials into cylindrical, cappedtubes of Aluminum or Composite and seal the tubes ends.

In compliance with the standard of GMP dosing pump is a new type stainless steel buterfy valve for ointment filing a screw ine adiustment device is privided. so the ointment weighing is accurate.

Thanks to the Adption of the sophisticated accurately and reliably, change frequency to control the machine speed, Used Fukai Shen index drives and international advanced tube sealing systems.

Specification Parameter

Model	LTRG-120
Tube Diameter	Φ12mm-50mm
Tube Length(customizable)	50-240mm
Filling Volume (Adjustable)	5-250ml/piece
Filling Accuracy	≤±1%
Product Capacity	80-120/min
Air Supply	0.5-0.6Mpa
Motor Power	2.2kw
Heat Sealing Power	5kw
Overall Dimension(mm)	295013102300
Machine Weight (kg)	3000

Product Application

Suitable for Ointment, Skin Care Products, Cosmetics, Toothpaste, Food, Facial Cleanser etc.

Product Feature

1

With 12 stations and matching with manipulator, the machine is able to meet different type of tail folding, sealing requirements of Alu tube. It is a multi-purpose machine.
2

Tube feeding, eye marking, tube interior cleaning (optional), material filling, sealing (tail folding), batch number printing, finished products discharging can be performed automatically (the whole procedure).
3

Servo control makes it precise and convenient to adjust the filling amount by touch screen.
4

According to the different length of the tube, height of tube chamber can be adjusted easily by motor. With external reversal feeding system, makes tube charging more convenient and tidy.
5

The mechanical linkage photo sensor precision tolerance is less than 0.2mm. The chromatic aberration scope between tube and eye mark is reduced.
6

Photo-electronic, electric, pneumatic integrative control is applied with the machine. No tube, no filling. It gives an alarm when low pressure occurs. The machine stops automatically if tube error or open the safety door.
7

Three-layer jacket instant heater with inside air heating, it won’t damage the pattern on outer wall of tube and achieves firm and beautiful sealing effect.
8

Servo control makes it precise and convenient to adjust the filling amount by touch screen.
9

According to the different length of the tube, height of tube chamber can be adjusted easily by motor. With external reversal feeding system, makes tube charging more convenient and tidy.
