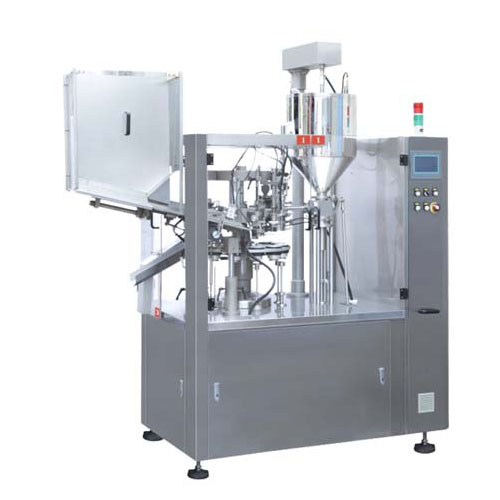

LTRG-series soft tube filling and sealing machine

LTRG-series soft tube filling and sealing machine

This Tube Filling Machine is a high-tech product which successfully developed and designed by adopting advanced technology from abroad, is ideal equipment for aluminum tube filling and sealing for cosmetic, foodstuff and bond industries, and strictly meet GMP requirement.

PLC controller and color touch screen are applied and made it possible for programmable control of the machine. It can perform the filling for ointment, cream jellies or viscosity material, sealing or tail folding, batch number embossing (include manufacture date) automatically.

Product Description
Specification Parameter
Product Application
Product Feature

Product Description

Tube feeding, eye marking, tube interior cleaning (optional), material filling, sealing (tail folding), batch number printing, finished products discharging can be performed automatically (the whole procedure).

Specification Parameter

Model	LTRG-60	LTRG-100	LTRG-120
Tube Diameter	Φ5mm-60mm	Φ12.5mm-50mm	Φ12mm-50mm
Tube Length(customizable)	50-300mm	210mm	50-240mm
Filling Volume (Adjustable)	5-250ml/piece	5-250ml/piece	5-250ml/piece
Filling Accuracy	≤±1%	≤±1%	≤±1%
Product Capacity	30-50/min	80/min	80-120/min
Air Supply	0.55-0.65Mpa	0.5-0.6Mpa	0.5-0.6Mpa
Motor Power	1.2kw	1.5kw	2.2kw
Heat Sealing Power	5kw	5kw	5kw
Overall Dimension(mm)	160016401900	250012002400	295013102300
Machine Weight (kg)	1100	1200	3000

Product Application

Suitable for Ointment, Skin Care Products, Cosmetics, Toothpaste, Food, Facial Cleanser etc.

Product Feature

1

With 12 stations and matching with manipulator, the machine is able to meet different type of tail folding, sealing requirements of Alu tube. It is a multi-purpose machine.
2

Tube feeding, eye marking, tube interior cleaning (optional), material filling, sealing (tail folding), batch number printing, finished products discharging can be performed automatically (the whole procedure).
3

Servo control makes it precise and convenient to adjust the filling amount by touch screen.
4

According to the different length of the tube, height of tube chamber can be adjusted easily by motor. With external reversal feeding system, makes tube charging more convenient and tidy.
5

The mechanical linkage photo sensor precision tolerance is less than 0.2mm. The chromatic aberration scope between tube and eye mark is reduced.
6

Photo-electronic, electric, pneumatic integrative control is applied with the machine. No tube, no filling. It gives an alarm when low pressure occurs. The machine stops automatically if tube error or open the safety door.
7

Three-layer jacket instant heater with inside air heating, it won’t damage the pattern on outer wall of tube and achieves firm and beautiful sealing effect.
