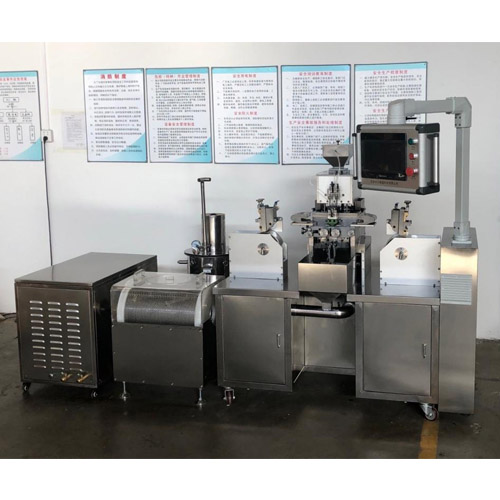

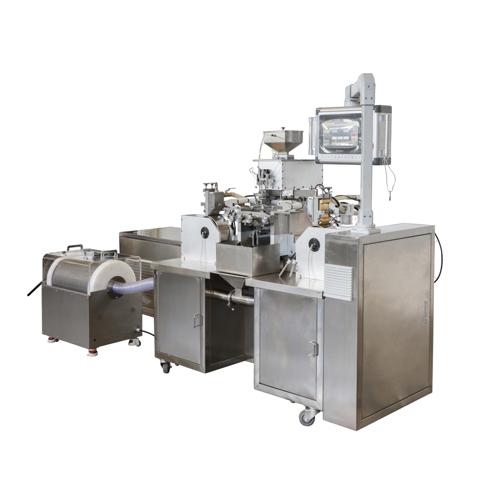

LTRJ-50 Lab Type Soft Gelatin Encapsulation Machine

LTRJ-50 Lab Type Soft Gelatin Encapsulation Machine

LTRJ Softgel encapsulation machine can quantificationally inject the oil, mixing suspension and pasty mass into the capsule to form all kinds of softgel encapsulation with different size, shape and color. Because of the merits of high speed disintegration, easy to oral, hard to oxygenation, easy to store and take, the softgel encapsulation is welcomed by more and more customers. Owing to the high productivity, charging exactly, quality stabilization, high finished product rate, it is favoured by more and more manufacturers and used in the fields of medicine, health products, cosmetic and game

Product Description
Specification Parameter
Product Application
Product Feature
More Details

Product Description

Softgel encapsulation machine can quantificationally inject the oil, mixing suspension and pasty mass into the capsule to form all kinds of softgel encapsulation with different size, shape and color. Because of the merits of high speed disintegration, easy to oral, hard to oxygenation, easy to store and take, the softgel encapsulation is welcomed by more and more customers. Owing to the high productivity, charging exactly, quality stabilization, high finished product rate, it is favoured by more and more manufacturers and used in the fields of medicine, health products, cosmetic and game-color ball and so on.
This product has passed provincial-level appraisal of new product and the certification of EU adopted two items of patent technology in manufacturing with exquisite workmanship.

Specification Parameter

Item	LTRJ-50
Rotary speed ofdie roll	0-5 rpm
Single-pillar piston feeding volume	0-1.5ml
Roller die size	⊗ 64*65mm
Power for whole machine	1.5KW
Difference among flling vohume	±1%
Main machine dimension	1500550 1700mm
Weight ofmain machine	700KG
Voltage	220v/50hz

Product Application

Owing to the high productivity, charging exactly, quality stabilization, high finished product rate, it is favoured by more and more manufacturers and used in the fields of medicine, health products, cosmetic and game-color ball and so on.

Product Feature

1

Strong product capacity, it can produce 5,000~10,000 pcs per hour.
2

Injecting medicine part adopts advanced linearity driving system, and it makes sure that the precision of charging and filling is less than 2%.
3

Capsule package rate is up to 98%.
4

The gelatin ribbon is lubricated by fine oil supply technology in order to lower the consumption of lubrication oil. The ribbon is lubricated by vegetable oil, so the capsules produced is free of wash.
5

High quality capsule deferent equipment adopts food conveyer belt authorized by American FDA, without poison and adhibition and easy to clean.
6

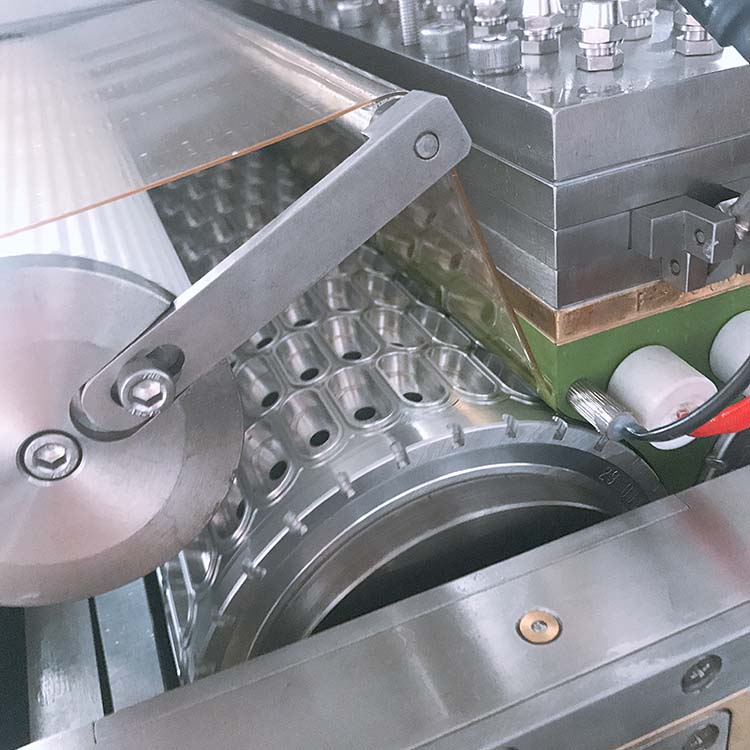

Optimized designed mould is made of high quality aviation alloy material by high precision numerical control process to insure the mould's service life.
7

Advanced process and assembly technics make the complete appliance quality stabilization , high working rate, and good shape pill.
8

Adopt automatic system project of supplying capsule and material to reduce workers' labor intensity and improve the working environment, which accords with the requirement of GMP.
9

The liquid level in the gelatin box is fixed automatically in the constant position, and the centigrade mater display the thickness of rubber, which is easy and accurate in adjustment.
10

The power of main motor is 1.5KW, which can avoid the phenomenon of insufficient driving power when the content is rather thick ( take 185 model for example).
11

Adopt the nonpoisonous materials to human body or now dropping matters into medicine liquid in this machine and medicine liquid, and the touching parts for gelatin.

More Details

Softgel encapsulation machine can quantificationally inject the oil, mixing suspension and pasty mass into the capsule to form all kinds of softgel encapsulation with different size, shape and color.

More Details

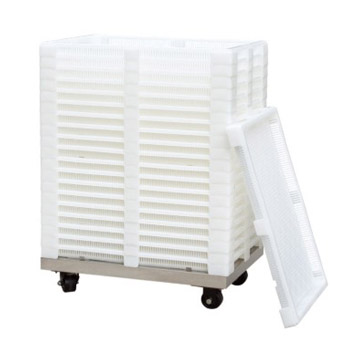

Drying Tray with Tray Trolley

More Details

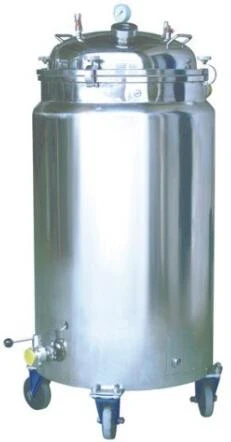

Jacket Gelatin Storage Tank
This tank is used for storage the gelatin with Warm Keeping function.

More Details

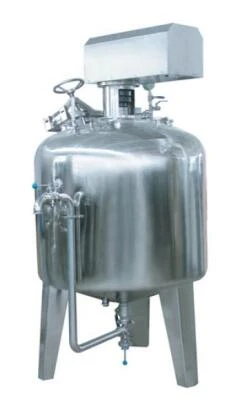

Gelatin Melting Tank
Flange connection, easy to clean, holistic heat preservation and economy in sources, three feet support, out put by pneumatic for reducing the tank height.
