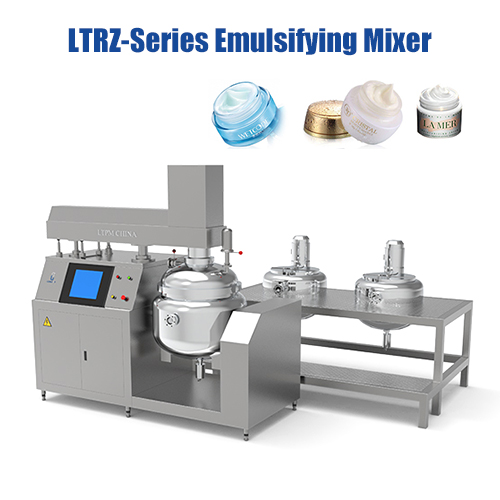

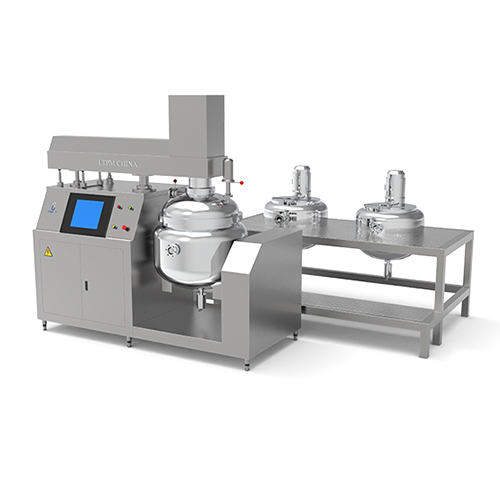

LTRZ-Series Emulsifying Mixer

Product Description

LTRZ-Series Is Mainly Applied In Such Industries As Pharmaceutical, Daily Chemical Care Products, Food Industry, Paint And Ink, Nanometer Materials, Petrochemical Industry, Printing And Dyeing Auxiliaries, Pulp & Paper, Pesticide, Fertilier, Plastic & Rubber, Electrics And Electronics, Fine Chemical Industry, Etc. The Emulsifying Effect Is More Prominent For Materials Of High Base Viscosity And High Solid Content.

The machine has emulsifying pot, emulsifying system, stirring system, temperature control system, cooling system, heating system, safety system and pipes, valves and so on.

Specification Parameter

Model Name	LTRZ-50	LTRZ-100	LTRZ-200
Working volume	50L	130L	200L
Homogenizing motor	3KW	4KW	6KW
Rotating speed	2800 r/min
Frame and scrapper motor	1KW	1.5KW	3KW
Rotating speed	20-60 r/min
Working volume of the oil pot	25L	60L	100L
Water circulation vacuum pump （KW）	1KW	1.45KW	2WK
Power for the electricity heating	30KW	39KW	50KW
Working pressure of the jacket	0.25 MPa
Working pressure of tank	≤0.09 MPa
Pressure of Compressed air	0.6-0.7 MPa
Air compression consumption	0.39 m3 /batch
Water consumption for jacket	2.0 m3 /batch
Water consumption for cleaning	1.1 m3 /batch

Product Application

Cosmetics industry: skin care cream, shaving cream, shampoo, toothpaste, cold cream, cold sunburn, facial cleanser, nutrient dense, detergent, shampoo, hair cream, conditioner, essence, moisturizing cream, hand cream, etc.

Daily chemicals:laundry detergent production, hand sanitizer, toilet cleaner, car glass water, etc.

Pharmaceutical industry: Latex, emulsion, ointment,oral syrup, oral liquid, etc.

Food industry: sauce, cheese, nutrient solution, baby food, chocolate, sugar, etc.

Chemical liquids: pesticides, lubricants, cutting fluids, adhesives, urea glass water waterproof coatings for vehicles, water-soluble fertilizers, etc.

Product Feature

1

The new emulsifying tank can be customized according to the particle size of customers' products
2

It can produce nano particles or micron particles, and the size is determined by the customer
3

Perfect for stable homogeneous emulsions and suspensions
4

Dispersion head can be freely assembled, modular, easy to maintain
5

A concentrated particle size distribution can be obtained with only one treatment
6

Stepless speed regulation (inverter)
7

All contact materials are made of SS316
8

Meet CIP/SIP cleaning standards, suitable for food and pharmaceutical production

More Details

HIGH SHEAR HOMOGENIZER

Fast agitator:
Teethed type rotor and stator assembly installedon the vessel Bottom or on the top as optional items,severalinterchangeable configurations are available.
