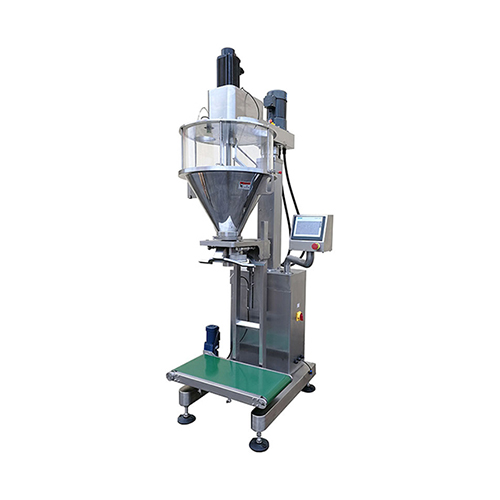

LTWGF-Series Auger Filling Machine With Online Weigher

LTWGF-Series Auger Filling Machine With Online Weigher

This Series Packing Machines Can Handle Weighing,Filling Functions Etc.

Product Description
Specification Parameter
Product Application
Product Feature
More Details

Product Description

This Series Packing Machines Can Handle Weighing,Filling Functions Etc.Featured With Real-Time Weighing And Filling Design These Machine Can Be Used To Pack High Accuracy Required,With Uneven Density,Free Flowing Or Non Free Flowing Powder Or Small Granule.I.e. Protein Powder,Food Additive,Solid Beverage,Sugar,Toner,Veterinary And Carbon Powder Etc.

Specification Parameter

Model	LTWGF-W25	LTWGF-W50	LTWGF-W75S	LTWGF-W100S
Packing Weight	1g - 900g	10g - 5000g	10g - 10kg	1kg - 50kg
Packing Accuracy	<100g,≤±1-2%; 100-900g, ≤±1-2g;	100-1000g, ≤±2g; ≥1000g, ≤±0.1-0.2%	100-1000g,≤±2g; ≥1000g, ≤±0.1-0.2%	1 – 20kg, ≤±0.1-0.2%, >20kg, ≤±0.05-0.1%
Packing Speed	8 - 15 times per min	5 - 12 times per min	5 - 12 times per min	1- 8 times per min
Power Supply	3P AC208 - 415V 50/60Hz	3P AC208 - 415V 50/60Hz	3P AC208 - 415V 50/60Hz	3P AC208 - 415V 50/60Hz
Compressed air	6kg/cm3 0.1cbm/min	6kg/cm3 0.1cbm/min	6kg/cm3 0.1cbm/min	6kg/cm3 0.1cbm/min
Total Power	0.93Kw	1.4Kw	2.25Kw	2.37Kw
Total Weight	130kg	260kg	350kg	350kg
Overall Dimension	800×790×1900mm	1200×900×2200mm	1205×1010×2174mm	1125×975×2500mm
Hopper Volume	25L	50L	75L	100L

Product Application

Food Industry:Spices Flours & Powders Dairy Powders Instant Drink Mixes

Chemical Industry:Detergents Fertilizers & Pesticides Industrial Powders

Cosmetic Industry: Powdered Cosmetics Bathing Salts & Scrubs

Nutraceutical Industry:Herbal Powders Nutritional Blends

Agriculture:Animal Feed Seed Treatments

Product Feature

1

Stainless Steel Structure;Quick Disconnecting Or Split Hopper Could Be Washed Easily Without Tools
2

Servo Motor Drive Screw
3

Pneumatic Bag Clamper And Platform Equip With Load Cell To Handle Two Speeds Filling As Per Preset Weight.Featured With High Speed And Accuracy Weighing System
4

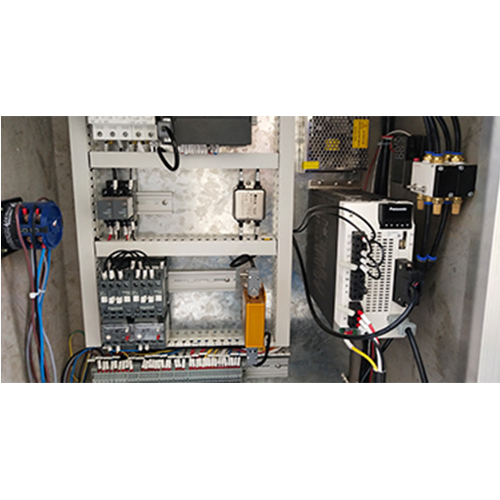

PLC Control, Touch Screen Display, Easy To Operate
5

Two Filling Modes Can Be Inter-Changeable,Fill By Volume Or Fill By Weight.Fill By Volume Featured With High Speed But Low Accuracy.Fill By Weight Featured With High Accuracy But Low Speed
6

Save The Parameter Of Different Filling Weight For Different Materials.To Save 10 Sets At Most
7

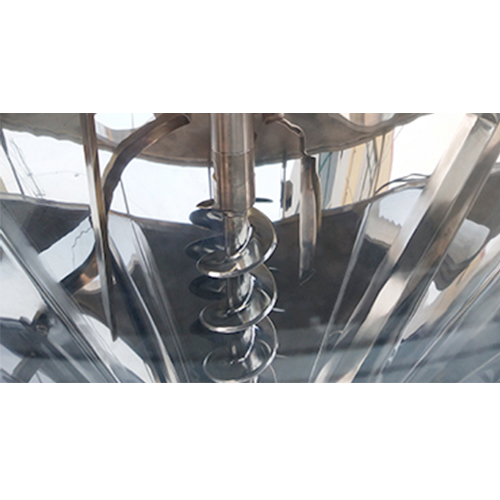

Replacing The Auger Parts,It Is Suitable For Material From Super Thin Powder To Granule

More Details

1

The touch screen controlpanel is more convenientto adjust working parametelike filling volume,workingmode.The visual workingparameter can help youwatch the machine in realtime

More Details

2

With large hopper and largemotor,the machine can workstably, and more convenientto pour filling materials,improves working efficiency

More Details

3

Equipped with large servomotor,it can ensure themachine work stably andimprove the filling accuracy

More Details

4

When choosing quantitativefilling.it will fill materialaccording to contollingpredetermined number ofrevolutions, this can controldust during working, whichhelp you improve your productquality.Please notice thatfeeding powder as much aspossible before filling
