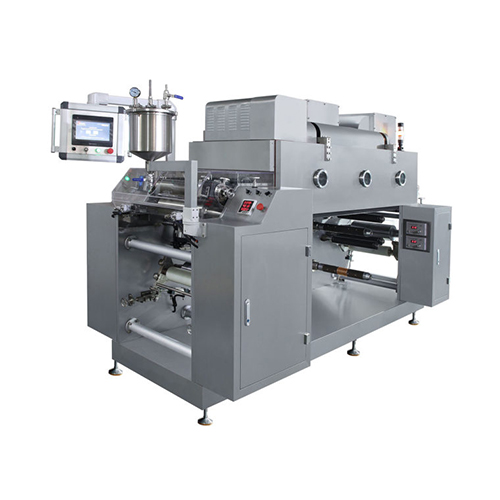

OralTop-300 Oral Thin Film Coating Machine

OralTop-300 Oral Thin Film Coating Machine

OralTop-300 Oral Thin Film Coating Machine

OralTop-300 Oral Thin Film Coating Machine

OralTop-300 Oral Thin Film Coating Machine

OralTop-300 Oral Thin Film Coating Machine

OralTop-Series Oral Thin Film making machine is specially designed and manufactured for making film on paper, plastic film, metal film,etc. The active ingredient can be either dissolved or suspended in the polymeric matrix.

Contact Us Download

Product Description
Specification Parameter
Product Application
Product Feature
More Details

Product Description

OralTop-Series Oral Thin Film making machine is specially designed and manufactured for making film on paper, plastic film, metal film,etc. The active ingredient can be either dissolved or suspended in the polymeric matrix.

OralTop-Series is used for making roll type Oral Thin Film.

Oral Thin Films with systemic activity for rapid delivery. An Oral Thin Film (OTF) is a very thin film, composed of a mono or multi-layer polymeric matrix, which is applied in the mouth. OTF are often water based soluble polymers designed to rapidly deliver systematically.

Specification Parameter

Model	OralTop-300
Max.Production Width	300mm
Max. Line Speed	10m/min (depend on medicine)
Drying/Heating Method	Stainless Steel Heat Exchanger
Temperature Range	20-150℃
Total Power	18kw
Power Supply	380v 50hz three phase or 220v 50hz three phase
Overall Dimension	270012002300mm
Product Contact Parts Material	SS316L
Control System	PLC and Touch Screen control
Machine Frame Material	SUS304
Weight	2800KG

Product Application

Product Application

OralTop-Series is used for making roll type Oral Thin Film.

Product Feature

1

Coating thickness from 40 – 1000 microns wet.
2

High coating accuracy.
3

Individual temperature adjustment zones.
4

Recording of all process related parameters.
5

Variable speed of base film.
6

Uniform air flow throughout the machine.
7

Liquid dosing system with peristaltic pump.

More Details
