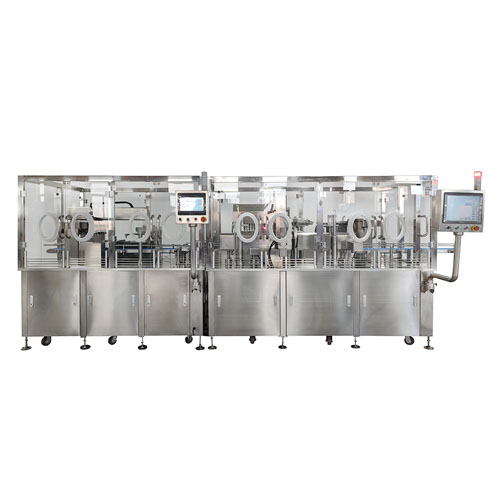

PFS-10 Glass Prefilled Syringe High Speed ​​Filling Production Line

The line takes box-type prefilled syringes as the object, and completes a series of actions such as unpacking, tearing off the film, removing the liner, filling and stoppering, etc., to realize the filling and sealing of the liquid medicine.

  • Product Description
  • Specification Parameter
  • Product Application

Product Description

The line takes box-type prefilled syringes as the object, and completes a series of actions such as unpacking, tearing off the film, removing the liner, filling and stoppering, etc., to realize the filling and sealing of the liquid medicine.

The high-speed filling production line for pre-filled syringes adopts box-type disposable syringes, which do not need to be cleaned and sterilized. Therefore, there is no need to configure washing machines, dryers and other equipment, which can reduce equipment costs and reduce pollution risks.

The stopper is added immediately after filling, the exposure time of the liquid medicine is short, and the risk of contamination is small.

Specification Parameter

ModelPFS-10

Applicable Materials

Liquid
Applicable specifications1ml long/1-3ml/5ml/10ml
Filling range0.1-10ml( The plunger pump needs to be replaced)
Injection needlequantity10 indivual
Filling Accuracy≤±1.5%
Production Capacity9000-12000branch/Hour
Total Power15KW
Voltage380V 50Hz
Compressed Air0.6-0.7Mpa
DimensionsL4469×W1438×H1878mm
Equipment Weight2000KG


Product Application

Product Application

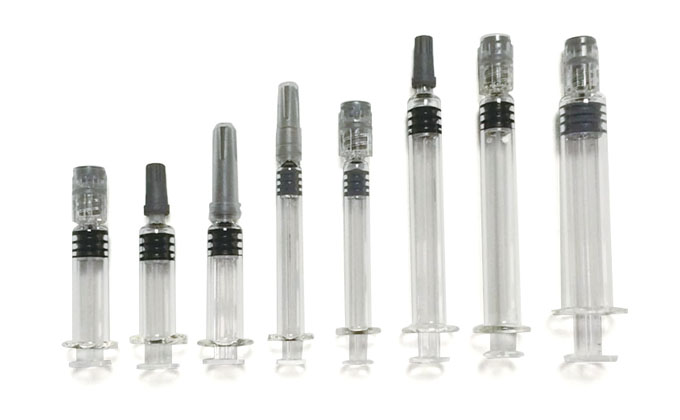

Glass Syringe

×
