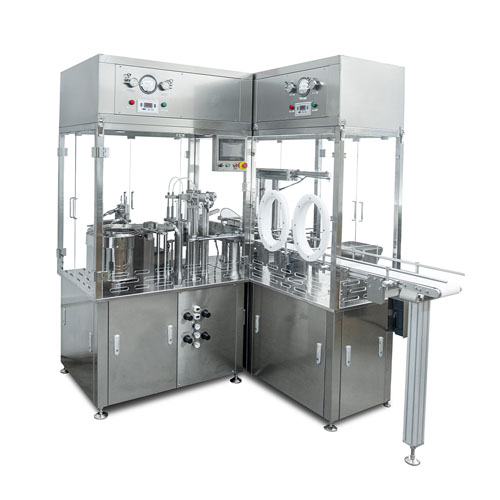

PFS-2 Glass Prefilled Syringe Filling And Stoppering Machine

PFS-2 Glass Prefilled Syringe Filling And Stoppering Machine

This product is an automatic packaging equipment for aseptic and high-efficiency filling syringes specially designed by our company for prefilled syringes.

Product Description
Specification Parameter
Product Application
More Details

Product Description

This product is an automatic packaging equipment for aseptic and high-efficiency filling syringes specially designed by our company for prefilled syringes.

The equipment runs smoothly, is easy to operate, is equipped with an intelligent detection device, has a high degree of automation, and is easy to maintain. It is an ideal equipment for filling and stoppering prefilled syringes.

Specification Parameter

Model	PFS-2
Applicable Materials	Liquid and ointment
Applicable Syringe Specifications	0.5、1、2.25、3、5、10ML
Number of Filling Heads	2
Number of Capping Heads	2
Filling Accuracy	≤±1-2%
Production Capacity	1200-1800 p/h
Total Power	3.5KW
Voltage	380V/220V 50-60Hz
Compressed Air	0.55-0.75Mpa 15L/S
Dimensions	L1088×W858×H1800mm
Equipment Weight	350KG

Product Application

Glass Syringe

More Details

Auto loading conveyor

Just place the full box of syringes in the conveyor to save labor

More Details

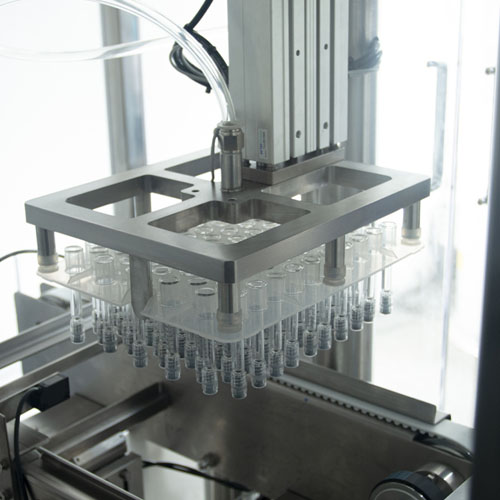

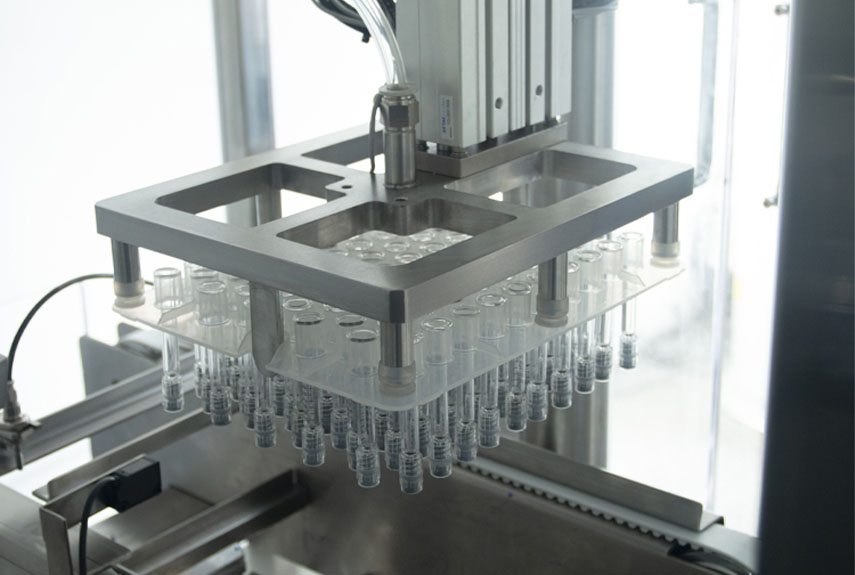

Loading syringe tube

Hang the syringe on the bottle comb plate together with the fetal membrane at one time

More Details

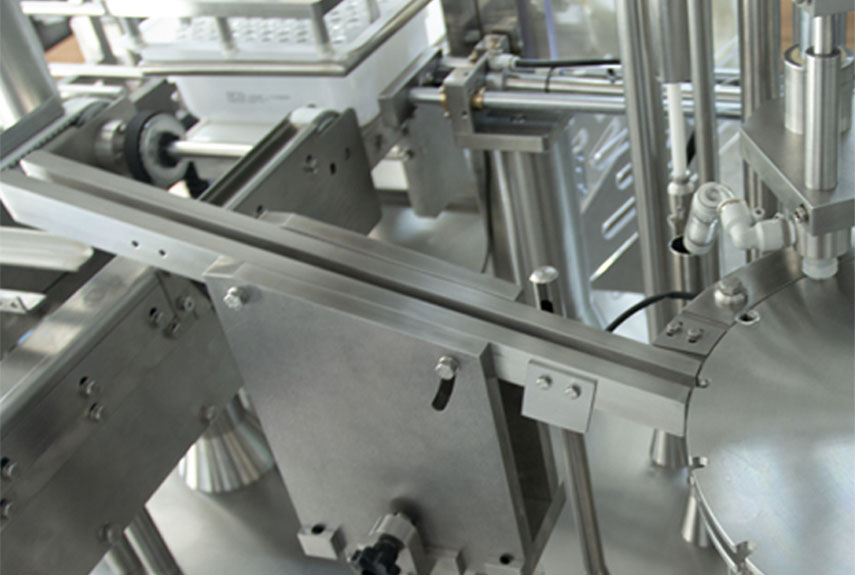

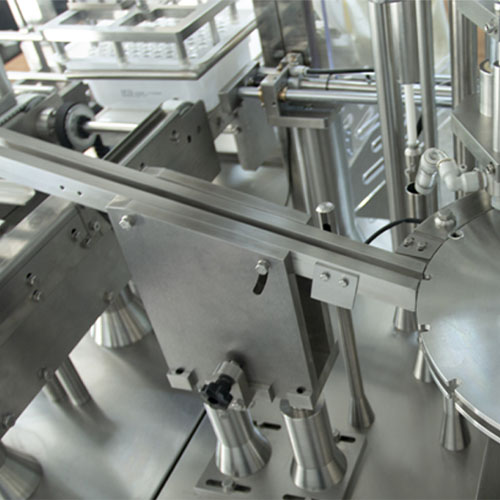

Slide enter

Automatically enter the filling dial row by row from the slide. The dial rotates intermittently and feeds at a time. Insert a syringe into the dial wheel and turn it to the corresponding work station.

More Details

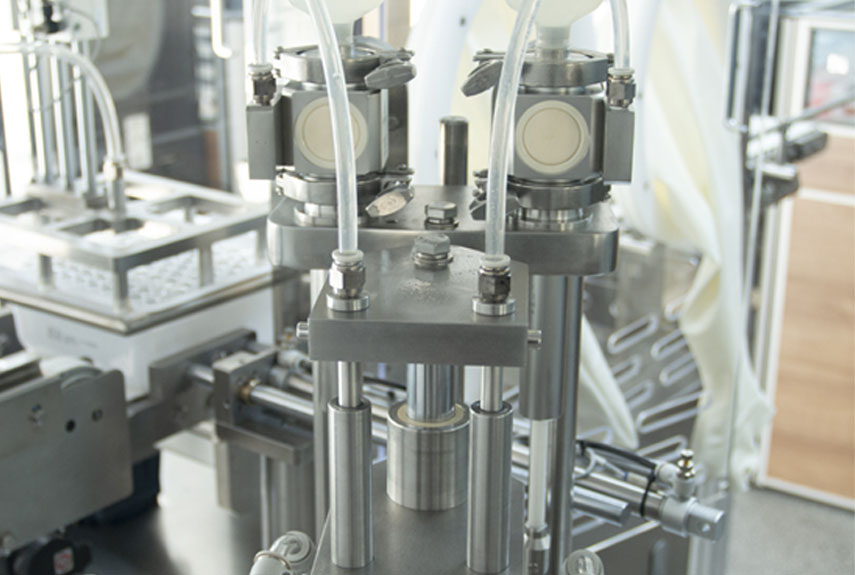

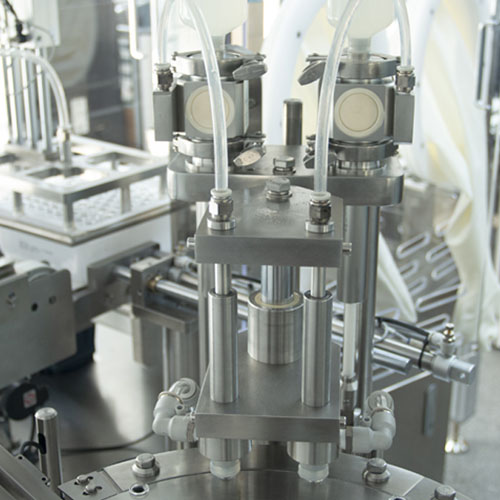

filling pump

Controlled by peristaltic pump, double needle filling, high precision and easy cleaning.

More Details

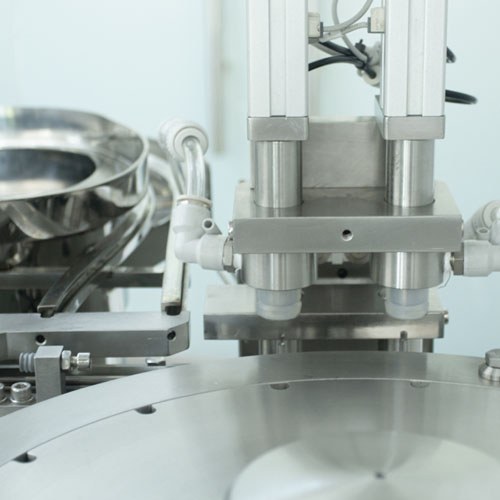

Vacuum stoppering of the syringe

The rubber stopper is arranged by the oscillator. A stopper rod first takes the rubber stopper on the stopper rod on the upper side, the stopper rod is integrated with a vacuum body, and at the same time, the syringe is pressed down to seal and vacuum, and then the stopper rod is added to the liquid level of the syringe.
