ProCap-2 Double Head Semi Automatic Capsule Filler

ProCap-2 Double Head Semi Automatic Capsule Filler

ProCap-2 Double Head Semi-Automatic Capsule Filling Machine is our newly upgraded generation special for Pharmaceutical and Natural products industry. This machine is suitable for filling both powder and pellet by changing filling device.

Product Description
Specification Parameter
Product Application
Product Feature
More Details

Product Description

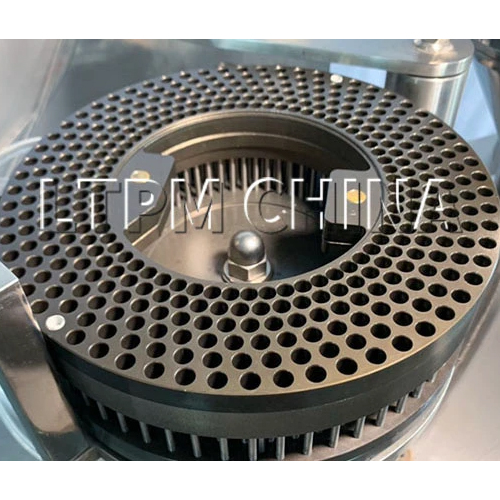

Special designed Double head capsule sowing device adopts automatic servo motor system which make capsule auto separation after sowing.

This model machine was upgraded by LTPM China in 2018, Since the machine has been upgrade, we have sold this model over 50sets per year. This is really a popular model right now. Because it save clients labor cost but triple the production capacity.

Specification Parameter

Model:	ProCap-2
Capsule Size:	#00-#5
Vacuum Pump:	XD-040(60m³/hour)
Capacity Of air compressor:	0.1m³/min
Noise:	Less than 60dB(A)
Overall Dimensions:	16008001600mm
Packing Dimensions:	200010001800mm
Net Weight:	550Kg
Gross Weight:	625Kg
Capacity:	36,000capsules/hour
Power Supply:	380V 50Hz 3.2Kw 3 phase

Product Application

Capsule Size 00 to 5#

Product Feature

1

Double Head Sowing system Triple the production capacity to 36,000capsules/hour
2

Servo motor system under capsule disk for capsule automatic separation after sowing.
3

Touch Screen system with PLC and Four inverter for speed control. This design stabilized the machine running in the production.
4

Horizontal Capsule Sealing Station: Avoiding Powder leakage as well as automatic pneumatic system makes the job easier.
5

One time forming manufactured operation platform: Less dead corner and simplified your cleaning job after production.
6

Oxidized Change Parts: Extra Stronger mould and easier for cleaning.
7

Four Inverter System: Capsule Sowing Speed, Capsule Separation Speed, Powder Filling Speed and Capsule disk rotation speed are all adjustable.

More Details

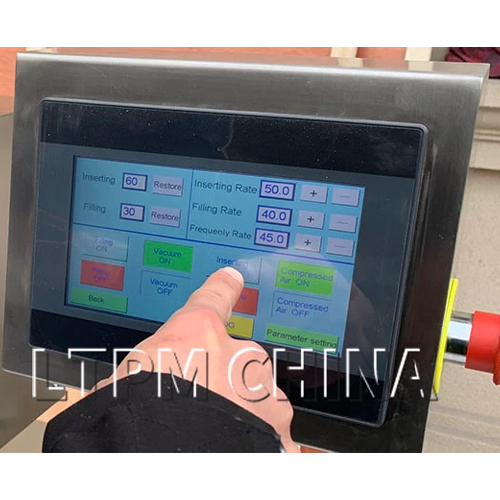

Touch Screen

Touch Screen System With PLC And Four Inverter For Speed Control.

More Details

Capsule Hopper

Double Head Sowing System Triple The Production Capacity To 36,000 Capsules/Hour

More Details

Four Inverter System

Capsule Sowing Speed, Capsule Separation Speed, Powder Filling Speed And Capsule Disk Rotation Speed Are All Adjustable.

More Details

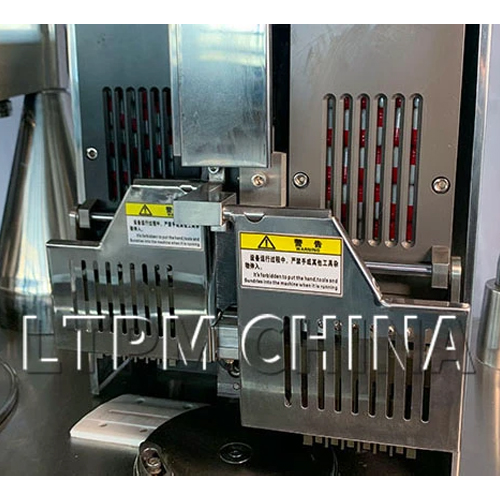

Horizontal Capsule Sealing Station

Avoiding Powder Leakage As Well As Automatic Pneumatic System Makes The Job Easier.
