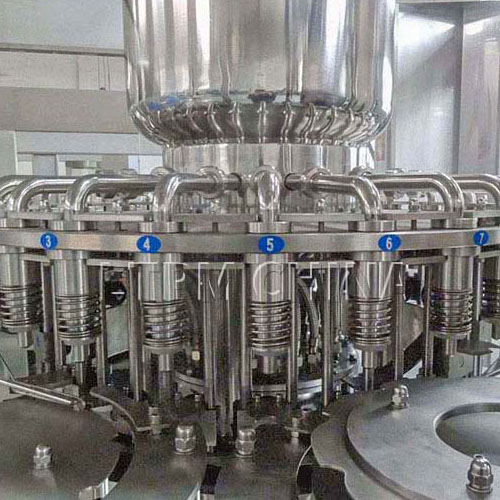

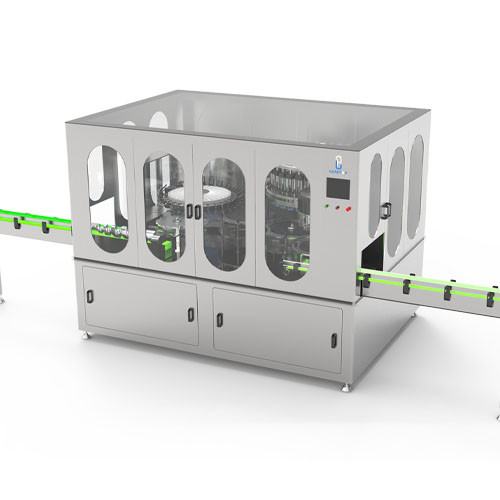

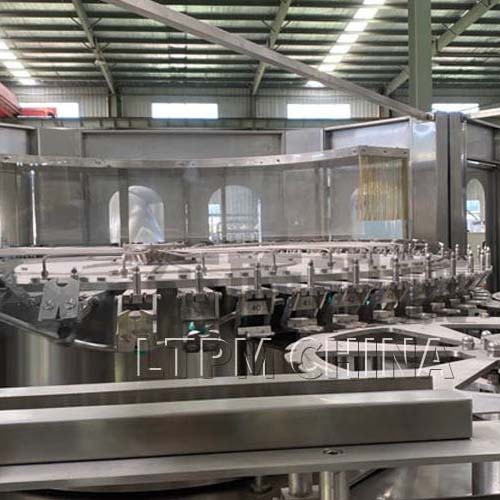

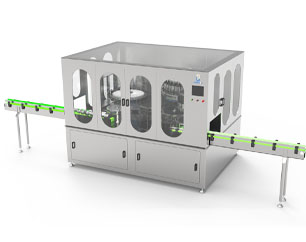

RotaFill-Series Rotary Type Liquid Filling Machine

The Machine is specially design to Juice, tea, milk based product, liquid food, energy drinks, milk tea, coffee and so on are all hot filling products.

  • Product Description
  • Specification Parameter
  • Product Application
  • Product Feature

Product Description

Our leading products include purified water production line, barreled water production line, fruit juice beverage production line, steamed beverage production line, carbonated beverage production line, bottle blowing machine equipment and other complete sets of small and medium-sized beverage production line equipment


We have different models, which can be used for the filling of water, fruit juice, tea, milk, sports drinks, beer and other

liquids. It integrates the functions of flushing, filling and sealing.

Bottle type: polyester bottle, glass bottle.

Type of bottle cap: plastic cap, sports cap, aluminum cap, crown cap (beer cap).

Capacity range: 200ml-2000ml.

Filling method: micro negative pressure filling.

It has a perfect temperature control system and adjustable return flow, filling valve and material inlet and outlet pipeline have no sanitary dead angle, and is equipped with CIP self-cleaning interface.

Specification Parameter

ModelRotaFill-8RotaFill-10RotaFill-12RotaFill-14
Capacity12000BPH17000BPH18000BPH22000BPH
Bottle Diameter(mm)ф25~ф38
Bottle capacity(L)0.2~2.5
Power(KW)269360
Overall Dimension(mm)9700*2750*325011100*4250*220011100*4250*335012200*4300*3350
Weight(kg)16000200002100024000


Product Application

Product Application

The Machine is specially design to Juice, tea, milk based product, liquid food, energy drinks, milk tea, coffee and so on are all hot filling products.

Product Feature

  • 1

    The filling machine adopts advanced control system, which can realize intelligent control of the whole filling process through human-machine interface operation. As long as the production requirements and parameters are set, the filling machine can automatically complete the filling, metering, bottle cap sealing and other processes. At the same time, the equipment is also equipped with fault self-test and alarm functions.

  • 2

    The filling machine adopts a high-precision metering system, which can accurately control the filling volume of each bottle of water, avoiding waste and shortage.
    At the same time, the equipment also has the characteristics of strong anti pollution, which can ensure the hygiene and safety of products.

  • 3

    Servo accurate positioning system: Schneider high-speed positioning system is adopted, with high precision, fast response and good stability

×
