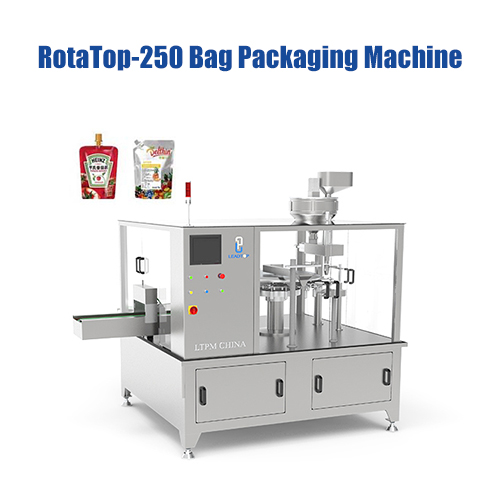

RotaTop-250 Bag Packaging Machine

It is suitable for packing powder product such as milk powder, wheat flour, coffee powder, tea powder, bean powder. Also suitable for packing chips, nuts, dried fruits, coffee beans and other granular solids.

Product Description
Specification Parameter
Product Application
Product Feature

Product Description

The machine works by automatically measuring and filling a precise amount of detergent into each container, based on the pre-set parameters. Some detergent filling machines are designed for liquid products, while others can handle powders or granules.

Detergent filling machines can be fully automated or semi-automated, and they can vary in size and capacity depending on the specific needs of the manufacturer. They are commonly used in the production and packaging of household and commercial cleaning products.

A detergent filling machine is designed to accurately and efficiently fill containers with various types of detergent products.These machines can handle liquid, powder, and granular detergents, and can fill a wide range of container sizes and shapes,including bottles, jars, pouches, and bags.

Specification Parameter

Working position	eight-working position
Pouch material	Laminated film PE、PP
Pouch pattern	stand-up&zipper pouch
Pouch size	W:100-210mm L:100-350mm
Filling Scope	10-5000g（ The screw attachment is to be changed）
Weight Accuracy	Package weight ≤ 100g, with an error≤±2% 100 — 500g,with an error≤±1% ≥500G error≤±0.5%
Speed	10-45pouches/min（The speed depends on the product status and flling weight））
Voltage	380V 3phase 50HZ/60HZ
Total power	8.5KW
Compress air	0.6m3/min(supply by user)
Size	190015701700mm

Product Application

Food Industry:Spices Flours & Powders Dairy Powders Instant Drink Mixes

Chemical Industry:Detergents Fertilizers & Pesticides Industrial Powders

Cosmetic Industry: Powdered Cosmetics Bathing Salts & Scrubs

Nutraceutical Industry:Herbal Powders Nutritional Blends

Agriculture:Animal Feed Seed Treatments

Product Feature

1

Easy to operate: Adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly
2

Frequency conversion adjusts the speed: This machine uses frequency conversion equipment, can be adjusted within the range according to the needs of reality in production
3

Automatic checking: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials
4

Horizontal conveyer style to giving bag: it can put on more bags on the bag storage and have a low requirement about the quality of bags
5

It matchs with the glass safty door. The machine will stop working when you open the door. So that it could protect the safty of operators. At the same time, it could prevent dust
6

Use the plastic bearing: don’t need put on oil, less pollution
7

Use no oil vacuum pump: avoid polluting the environment in the production
8

The opening zipper framework is special in the feature of zipper bag,it can avoid distortion or destroy when opne the zipper
9

The packing materials loss low, what this machine is used the preformed bag, the bag pattern is perfect and has a high quality of the sealing part, this improved the product specification
10

Product or packing bag contact parts adopt stainless steel or other materials which accord with the food hygienic requirements, guarantee hygiene and security of the food
11

With different feeders changed to pack solid, liquid, thick liquid ,powder and so on
12

The packing bag suits in extensive range, suit for multi-layer compound, monolayer PE , PP and so on Preformed bag made by film and paper
