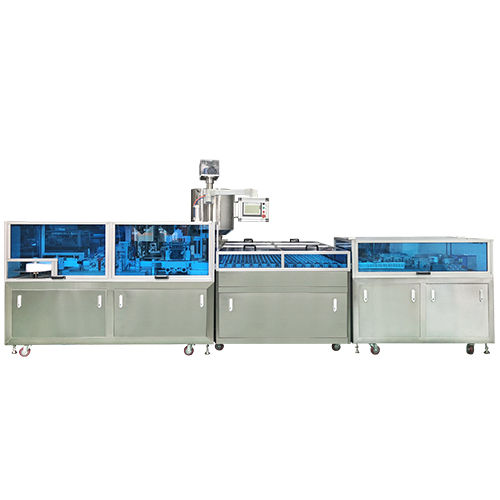

SupLab-Series Suppository Filling And Sealing Machine

SupLab-Series Suppository Filling And Sealing Machine

The automatic suppository filling production line has a stable and efficient manufacturing process, filling, freezing, sealing and other production processes to complete the whole process, and the production capacity is 10,000 grain/hour.

Product Description
Specification Parameter
Product Application
Product Feature
More Details

Product Description

Production process:

From automatic suppository shell forming, to the filling station of liquid, Recirculating cooling set (liquid to solid), Continuous sealing with batch number, Transfer finished cutting (the number of cutting grains can be set arbitrarily on the touch screen, 1-10 grains can be cut at will)

Specification Parameter

Model	SupLab-1	SupLab-3	SupLab-7	SupLab-10
Output	1000-1500 pcs/h	4500-5000 pcs/h	10000 pcs/h	15000 pcs/h
Single dosage	0.5—5g	0.5—5g	0.5—5g	0.5—5g
Dosage allowed	＜±2%	＜±2%	＜±2%	＜±2%
Packaging Film	PVC\PE	PVC\PE	PVC\PE	PVC\PE
Stirring tank capacity	20L	30L	70L	70L
Air pressure	≥0.6Mpa	≥0.7Mpa	≥0.7Mpa	≥0.7Mpa
Air consumption	1.2m³	1.5m³	1.5m³	1.5m³
Water consumption	50kg(recycling)	50kg(recycling)	50kg (recycling)	50kg (recycling)
Working voltage	3 phase 380V	3 phase 380V	3 phase 380V	3 phase 380V
Total power	4KW	5KW	7.5KW	9.5KW
Machine Weight	500KG	1000KG	2000KG	2500KG
Overall dimensions	230012001800mm	358713881828mm	530221201809mm	596521202150mm

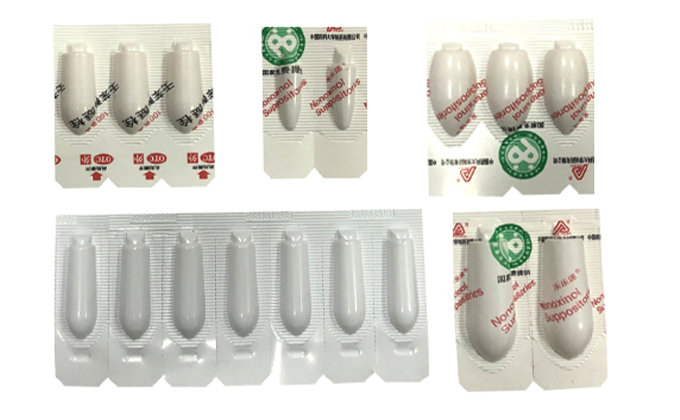

Product Application

-- Suitable for the production of special shape such as bullet head, torpedo shape and duck bill.

-- Adapt material: synthetic fatty acid glycerol, glycerin gelatin, polyethylene glycol etc.

Product Feature

1

Full-automatic Suppository Production Line is suitable for the production of special shape such as bullet head, torpedo shape and duck bill, to meet the production of your suppository. (according to the specifications of your specifications)
2

The equipment adopts PLC programmable control and man-machine interface operation, easy operation, convenient adjustment, accurate temperature control and smooth operation.
3

The temperature sensor and microcomputer control system are used to realize high precision thermostatic control.
4

The liquid storage tank is made of 316L stainless steel, with proper volume, heat preservation and heating function, and accurate temperature control; The tank is equipped with a mixing device to ensure the homogeneity of the liquid in the VAT at any time. The reservoir can be connected with the filling mechanism through the pipe, and the liquid can be kept in circulation to ensure the fluidity of the liquid and satisfy the demand of filling.
5
6

The insertion type linear perfusion mechanism can be used to locate accurate, not dropping, and not hanging wall; The single-grain measurement is 0.5-5ml and the filling error is plus or minus 2%.
7

Continuous cooling design, the post-infusion suppository shell can be fully cooled and the liquid solid transformation is realized.

More Details

Production capacity

-- The production capacity is 4500-5000 grain/hour.
-- The temperature sensor and microcomputer control system are used to realize high precision thermostatic control.

More Details

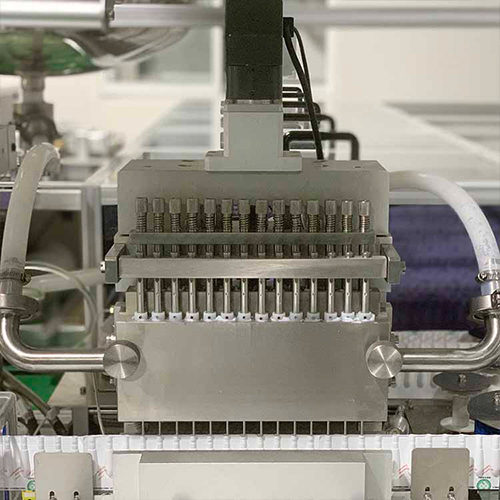

The insertion type linear perfusion mechanism

-- The insertion type linear perfusion mechanism can be used to locate accurate, not dropping, and not hanging wall; The
single-grain measurement is 0.5-5g and the filling error is plus or minus 2%.

More Details

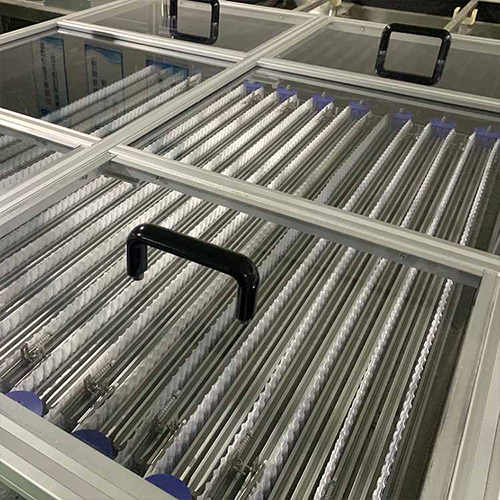

exclusive circulation of water cooling system

-- --The latest circulating water cooling technology can solve the problems of slag detachment and easy fracture during tearing.
-- exclusive circulation of water cooling system advantages of thick tail edge, tear off residue.
-- The temperature is adjustable.
