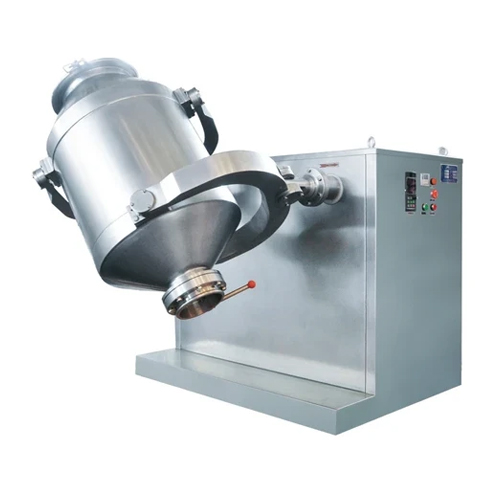

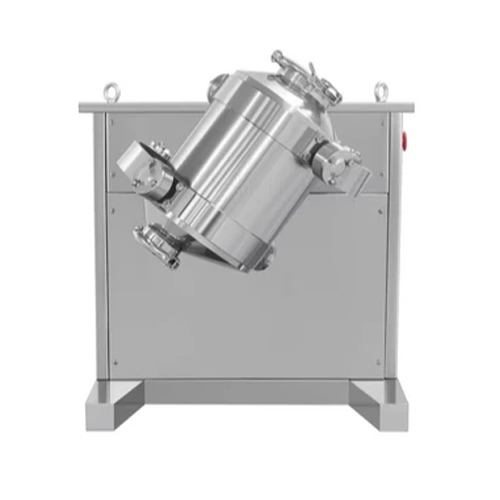

SYH Multi Direction Mixing Machine 3-D Motion Mixer

SYH Multi Direction Mixing Machine 3-D Motion Mixer

SYH Multi Direction Mixing Machine mixing barrel of the machine moves in multi-direction. For the materials, there is no centrifugal function, without the specific gravity segregation and the layer division. For each of build-up phenomenon, there is the remarkable weight rate. The mixing rate is up to 100%.The machine is the desired product in various mixers at present.

Product Description
Specification Parameter
Product Application
Product Feature

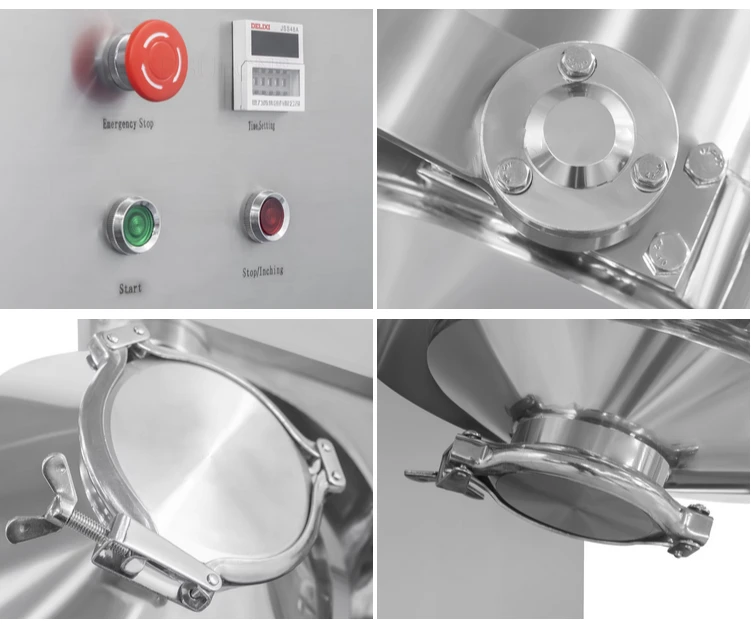

More Details

Product Description

The barrel material charge rate is big. The Maximum rate can be up to 90%(the common mixer has only 40% charge rate). It is high in efficiency and short in the mixing time.

The barrel uses the curve connection. The barrel has passed the fine polish treatment. The machine is used for mixing the powder state and grain state materials with the high uniformity in the pharmacy, chemical, food, light-industry, electronic, mechanical, metallurgical, nation defense industries and other science and technology institutes.

Specification Parameter

Model	SYH 15	SYH50	SYH 100	SYH 200	SYH 400	SYH 600	SYH 800	SYH 1000
Barrel capacity(L)	15	50	100	200	400	600	800	1000
Max loading capacity(L)	12	40	80	160	320	480	640	800
Max loading capacity(kg)	7.5	25	50	100	200	300	400	600
Speed of driving shaft(r/min)	0~8
Motor power(kw)	0.37	1.1	1.5	2.2	4	5.5	7.5	7.5
overall dimensions(mm)	700×1000×700	500×600×800	1000×1400×1200	1200×1700×1500	1400×1800×1600	1900×2100×2250	2200×2400×2300	2250×2600×2600
Total weight(kg)	200	300	500	800	1200	1500	2000	2500

Product Application

The machine is used for mixing the powder state and grain state materials with the high uniformity in the pharmacy, chemical, food, light-industry, electronic, mechanical, metallurgical, nation defense industries and other science and technology institutes.

Product Feature

1

It is used for the high uniformity mixing of powder, granular materials in the industries such as pharmacy, chemical, food, light industry, electron, machine, mining and metallurgy, national defense and research units.
2

The mixing tube is moved with multi-direction. Materials are out of centrifugal force and no gravity segregation and accumulation. Each component can be of intervallic weight ratio and the mixing ratio could be above 99.9%. So it will be the more ideal mixer.
3

The loading capacity of tube is large which could be largest 80% (ordinary mixer only be 40%). It features high efficiency, short mixing time.
4

All parts in the tube is circular arc with precision polishing.
