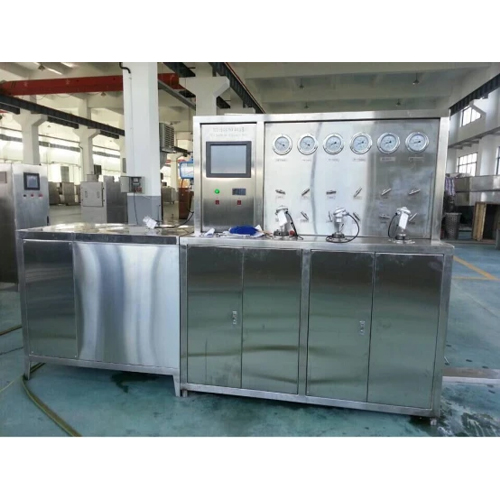

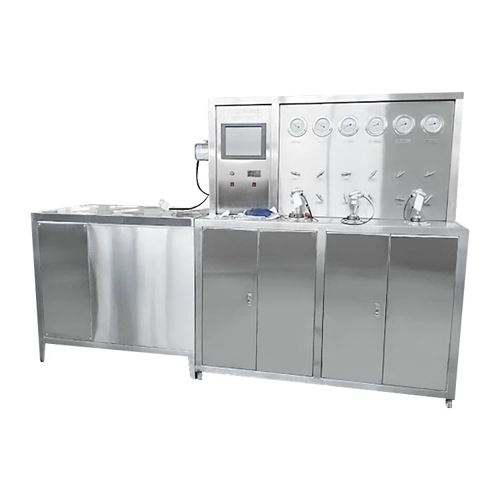

TH-12-5 Supercritical CO2 Extraction Unit

Widely used in pharmaceutical,food industry,health care products,cosmetics,perfume and other industries.

  • Product Description
  • Specification Parameter
  • Product Application
  • Product Feature
  • More Details

Product Description

Supercritical CO2 extraction adopts CO2 as the solvent. supercritical co2 under greater density and dielectric constant,the solubility of the material is large,and with the pressure and temperature changes rapidly changing. therefore,not only the solubility of certain substances selectivity,high efficiency,low energy consumption,no pollution and other characteristics,especially for flat-soluble,high boiling point,heat-sensitive material extraction,but also for different components fine separation,widely used in pharmaceutical,food industry,health care products,cosmetics,perfume and other industries.

small test,pilot to full scale production of design and manufacture for supericritical extraction equipment,in about ten years of research and production we have accumulated a great deal of experience. All kinds of supercritical extraction device models becomes stereotyped system products,reasonable structure,safe,reliable,easy loading and unloading of materials.the optimal design of the seal structure and special material for seals is more reliable and durable.design of doubel safety protection system using of CO2 circulating measurement,temperature,flow and pressure technological parameters adopt digital display control,convenient to operate,high automation. production of supercritical extraction device designed to be controlled by the computer remotely,meet GMP standards


Specification Parameter

Design pressure of extraction kettle50MPa
Volume of extraction kettle5L
Design temperature of extraction kettle20~80°C
CO2 Flow≤50L/H
Separation kettle design temperature20~80°C
Power480V/60Hz

Installed capacity

18KW
Machine footprint size3.1m*2.9m*2m

Product Application

Product Application

Pharmaceutical industry

Foodstuff industry

Cosmetics and perfumery industries

Chemical industy

Others

Product Feature

  • 1

    Low critical temperature suitable for extraction and purification of heat sensitive compound

  • 2

    Being capable to provide inert environment to avoid oxidation of products and affection of effective content extracts

  • 3

    Fast extraction speed, no toxicity, non-flammable, safe application and no pollution upon environment

  • 4

    No residue of solvent, no nitrate and ions of heavy metal

  • 5

    The press ring of the extraction kettle can be opened quickly, O-ring is imported with service period over 4 months.

  • 6

    CO2 can be used in circulation

  • 7

    It can be designed and manufactured as per(GMP) standard

  • 8

    The pressure stabilizing system of the extraction kettle is imported back-pressure valve.

More Details

×
