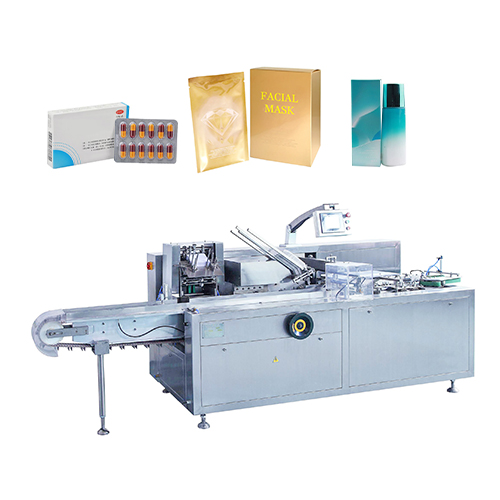

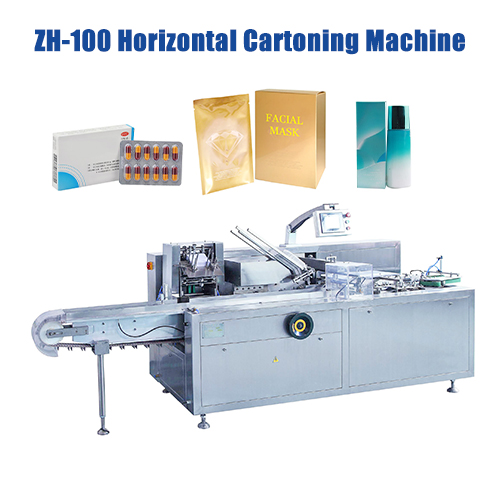

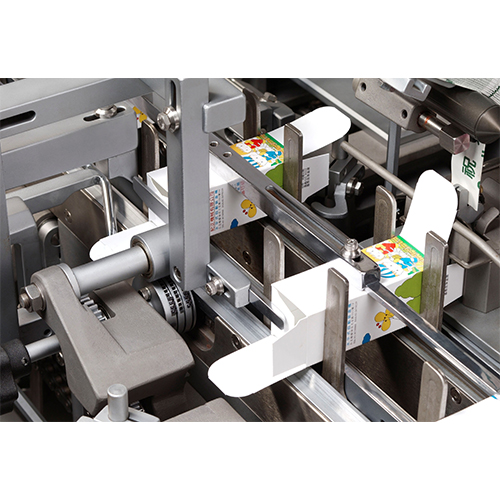

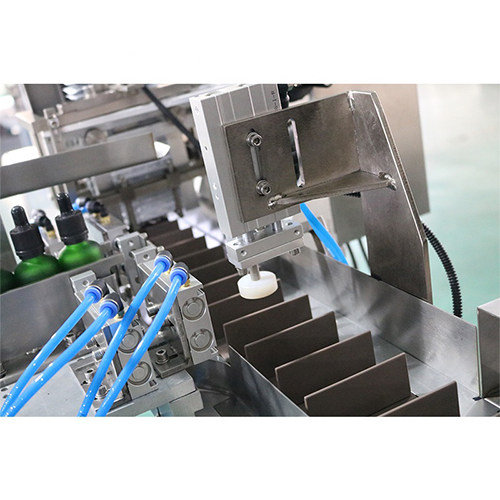

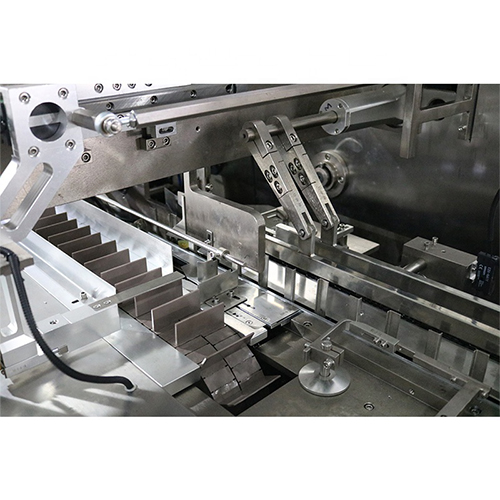

ZH-100 Horizontal Cartoning Machine

The Cartoning Machine is suitable for packing AL/PL Blister, Bottle, Pillow Type Bags and other related similar content compact automatic leaflet folding, box opening and loading, batch number embossing as well as sealing technology processes.

Product Description
Specification Parameter
Product Application
Product Feature
More Details

Product Description

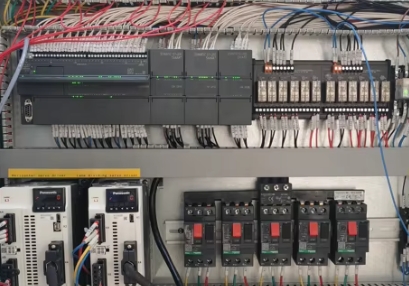

The machine adopts PLC Control. Optical detect every part of the machine. The machine will stop automatically and trouble display when machine running exceptional in order to solving trouble in time. This machine can be used separately and also connect with Blister Packaging Machine online.

Specification Parameter

Model	ZH-100
Production speed	50-100 boxes/min
Carton Size(Customizable )	(40-125)(12-85)(16-70)mm
Leaflets Size	(80-210)*(70-210)mm
Leaflets Fold range	(1-4)fold
Power	220V/380V 50Hz 1.5kw
Air consumption	120-160 L/min
Compressed Air Pressure	0.5-0.8 MPa
Noise	<70B
Size	325014501550mm
Weight	1100kg

Product Application

Pharmaceutical Industry: Medicine Plate, Oral Liquid, Bottle, Vials, Bagged Granules, Paste, Ointment, Aerosol, etc.

Food Industry: Ice Cream, Egg Rolls, Bread, Biscuits, Eggs Pie, Bagged Coffee/Tea, Seasoning Bags, Milk Powder, etc.

Daily Industry: Toothpaste, Soap, Cosmetics, Facial Mask, Face Cream, Shoe Polish, Lipstick, Mosquito Coils, Fireworks, etc.

Hardware Electrical: Bearings, Energy-Saving Bulbs, Bulb, Switches, Sockets, Relays, Chargers, etc.

Auto Parts Industry: Spark Plugs, Filters, Piston Rings, Brake Pads, Car Bulbs, Automotive Electrical Appliances, etc.

Plastic Industry: Cling Film, Fresh Bag, Disposable Film Gloves, Plastic Products, Condoms and so on.

Entertainment Industry: Pens, Stapler, Staple, Indonesian, Glue, Modified Liquid, Poker, Puzzles, Toys, Handicrafts, Gifts, etc.

Living Paper: Paper Towels, Sanitary Napkins, Pads, Make-Up Cotton and so on.

Product Feature

1

Machine according to current GMP standards workshop space site design, and manufacturing.
2

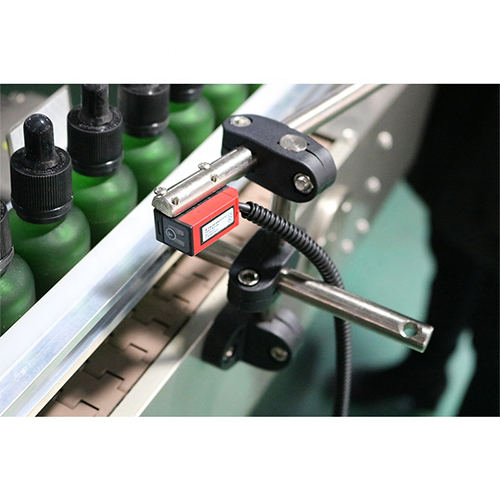

The whole functional areas separated by design, the use of imported photoelectric eye tracking, automatic detection of control mechanical operation.
3

When the product is automatically loaded plastic care, can achieve automatic cartridge seal into the box.
4

Fully mechanical operation of each station has a high electronic automatic synchronization, the mechanical operation of a more coordinated, more balanced, low noise.
5

This cartooning machine, simple operation .PLC programmable control, touch human-machine interface.
6

The machine's PLC automation control system output interface enables real-time monitoring of the posterior segment of packaging equipment.
7

The high degree of automation, wide control range, control of high precision, responsive control, good stability.
8

The small number of parts and simple structure of the machine, easy maintenance.

More Details

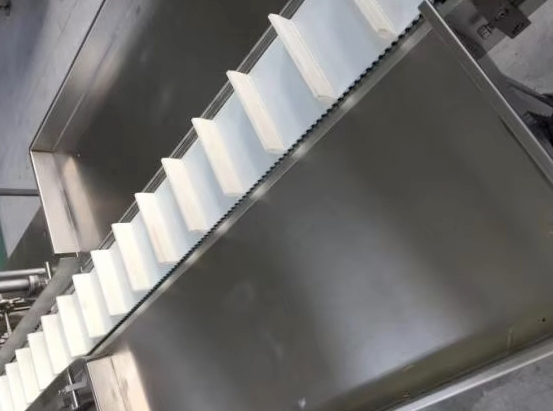

Synchronous Conveyor

Mainly used in automatic boxing equipment for cosmetics, food, daily necessities, hardware ect

More Details

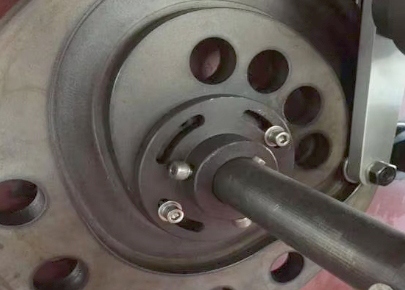

Box Sending Mechanism

The Leadworld box feeding mechanism of the cartoning machine is a planar cam intermittent reciprocating structure, which is simple and reliable, easy to install, does not need to be equipped with taper pins, repairs the delivery box stroke, and the box delivery stroke is stable and reliable.

More Details

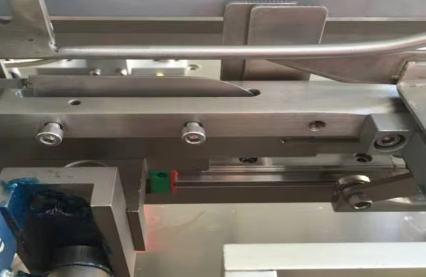

Send Box Swing Arm

The leadworld box-feeding swing arm of the cartoning machine adopts an independent middle fulcrum swing arm mechanism. This structure is very stable and does not require other auxiliary devices.

More Details

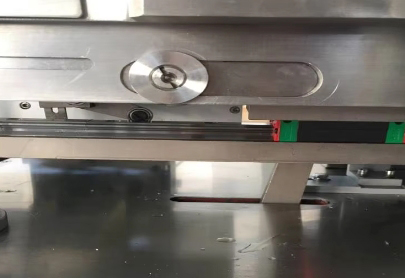

Box-Sending Reciprocating Structure

The cartoning machine produced by Leadworld adopts the form of a linear guide rail for reciprocating box feeding. This structure is accurate and reliable in positioning and does not need to add lubricating oil. And not easy to wear and tear. At the same time, rolling bearings are used at the advancing position of the box delivery. Flexible and reliable movement.

More Details

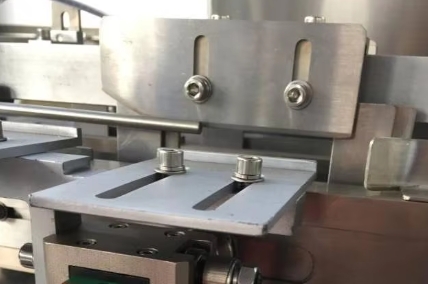

Tongue Swing Rod

The tongue swing rod of the cartoning machine produced by Leadworld adopts a linear guide rail and a rolling bearing device, cancels the copper slider, and is all rolling friction, which greatly reduces the wear caused by the contact of the parts, and the structure is stable and reliable.
