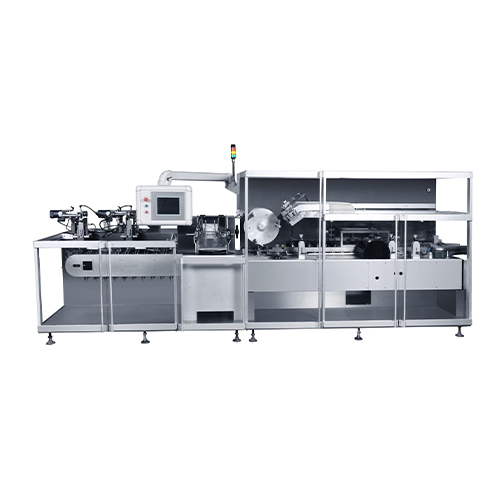

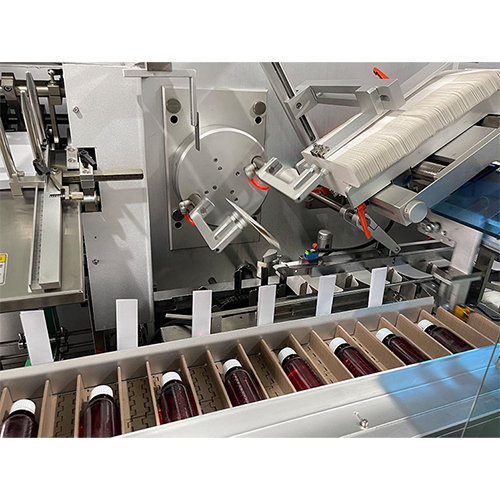

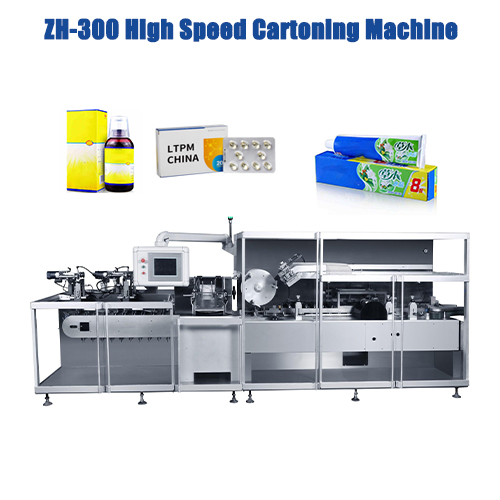

ZH-300 High Speed Cartoning Machine

This model is automatic high speed continuous cartoning machine with high performance product incorporates pneumatic-photo-electro-mechanic.

Product Description
Specification Parameter
Product Application
Product Feature
More Details

Product Description

This model is automatic high speed continuous cartoning machine with high performance product incorporates pneumatic-photo-electro-mechanic.

It suitable for automatic inserting ALU-PVC blister, bottle, soft tube, soft AL/AL strips and pouch into carton, also can link to matching machine to form production line

Specification Parameter

Model	ZH-300
Packing speed	200-300 boxes/min
Carton Size(Customizable )	(70-200)(35-120)(20-70)mm
Leaflets Size	(80-210)x(70-210)mm
Leaflets Fold range	(1-4)fold
Power supply	220V/380V 50Hz 7.5kw
Air consumption	20.2m3/min
Compressed Air Pressure	0.5-0.7Mpa
Noise	<70B
Size	495016001700mm
Weight	3500kg

Product Application

Pharmaceutical Industry: Medicine Plate, Oral Liquid, Bottle, Vials, Bagged Granules, Paste, Ointment, Aerosol, etc.

Food Industry: Ice Cream, Egg Rolls, Bread, Biscuits, Eggs Pie, Bagged Coffee/Tea, Seasoning Bags, Milk Powder, etc.

Daily Industry: Toothpaste, Soap, Cosmetics, Facial Mask, Face Cream, Shoe Polish, Lipstick, Mosquito Coils, Fireworks, etc.

Hardware Electrical: Bearings, Energy-Saving Bulbs, Bulb, Switches, Sockets, Relays, Chargers, etc.

Auto Parts Industry: Spark Plugs, Filters, Piston Rings, Brake Pads, Car Bulbs, Automotive Electrical Appliances, etc.

Plastic Industry: Cling Film, Fresh Bag, Disposable Film Gloves, Plastic Products, Condoms and so on.

Entertainment Industry: Pens, Stapler, Staple, Indonesian, Glue, Modified Liquid, Poker, Puzzles, Toys, Handicrafts, Gifts, etc.

Living Paper: Paper Towels, Sanitary Napkins, Pads, Make-Up Cotton and so on.

Product Feature

1

Easy maintenance, the outer cover is made of 304 stainless steel + plexiglass structure
2

Easy to adjust, a variety of sealing methods; replace cartons of different sizes. No need to change the mold, just adjust the mold position according to the size of the box
3

Intelligent display of cartoning speed and production quantity
4

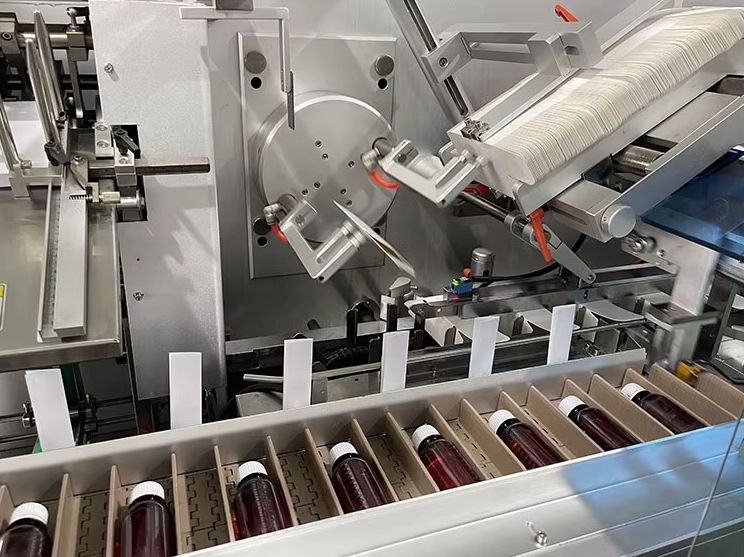

The equipment adopts photoelectric automatic detection (German SICK), automatically detects the product and controls the work of the folding machine, controls the product and the manual to be synchronously delivered to the push port, and put into the carton together
5

The equipment is equipped with a main drive motor and a clutch brake. When the torque is overloaded or the transmission parts are stuck with foreign objects and cause overload, the main motor is idling and disengaged from the transmission part to ensure that other transmission parts of the machine are not damaged
6

Support customization, can be configured with manual folding machine, steel stamp coding, inkjet coding and other multi-functional devices

More Details

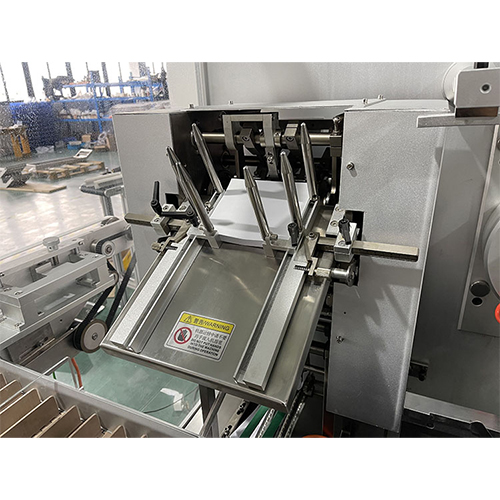

1

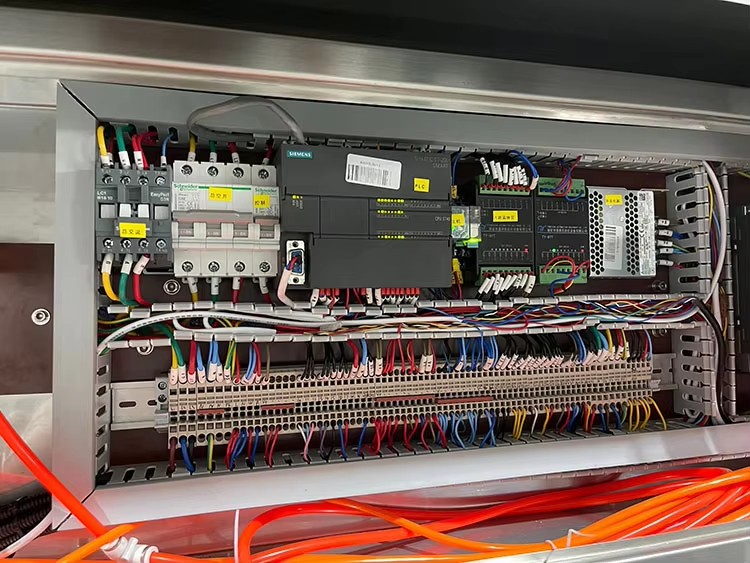

1.PLC automatic control system, frequency conversion and remonstration electrical components are all internationally renowned brands ;

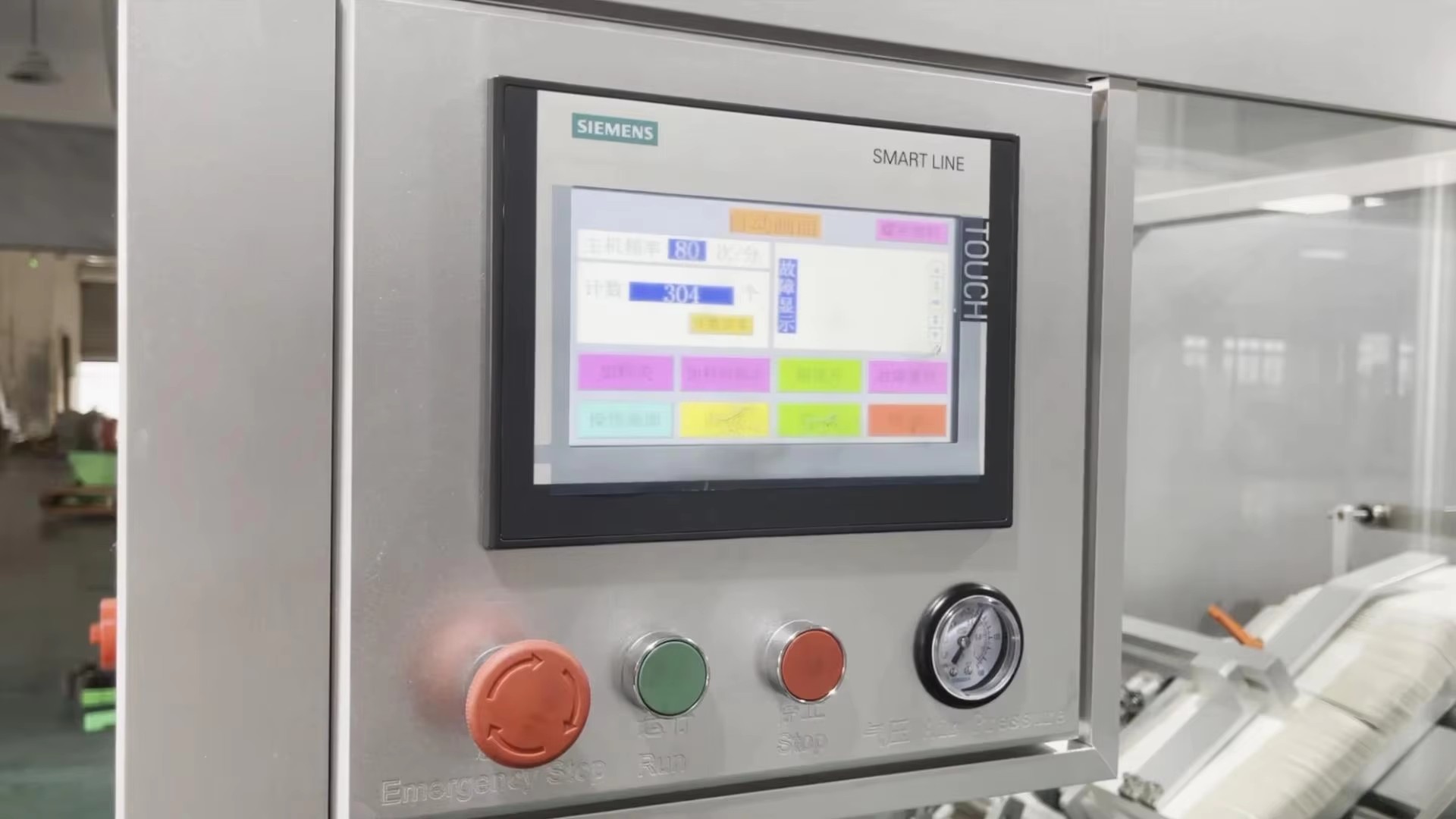

2.The touch interface makes parameter setting convenient and quick.

More Details

2

It can automatically display, alarm and automatically remove the lack of material and paper jam in the carton, so as to ensure 100% qualified output of finished products at the outlet.
