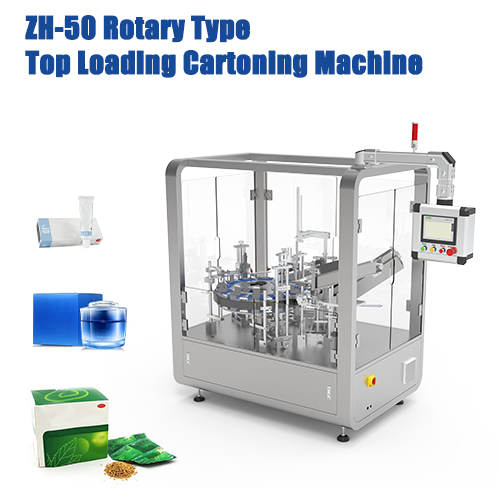

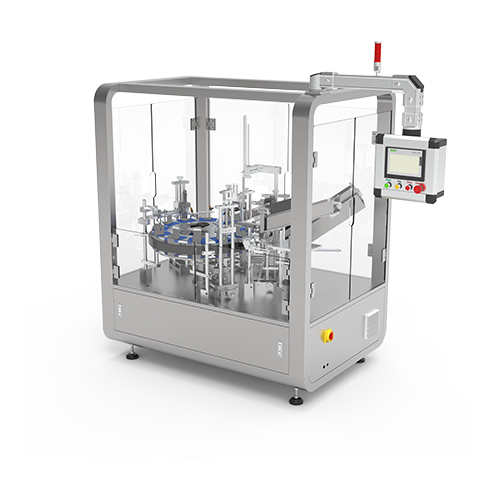

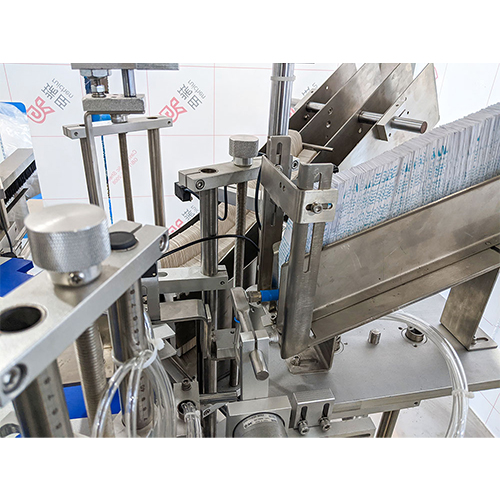

ZH-50 Rotary Type Top Loading Cartoning Machine

ZH-50 Rotary Type Top Loading Cartoning Machine

ZH-50 Series Automatic Cartoning Machine is suitable for packing AL/PL Blister, bottle, Pillow Type Bags and other related similar content compact automatic leaflet folding, box opening and loading, batch number embossing as well as sealing technology processes.

Product Description
Specification Parameter
Product Application
Product Feature
More Details

Product Description

Automatic Cartoning Machine (box folding→filling→packing) It is specially design to automatic pack small quantities’ multi size box. With low cost and only require small area. It is suitable for various sizes of box. The machine is a vertical type with multiple function and require a short time to change mould.

This equipment is used for round bottled, food-stuff, cosmetic, etc. packing into square box. This machine is applicable for cylinder-shaped, tubular products. The product will automatically drop into box via star wheel and conveyor.

The machine is made of aluminum alloy with anode treatment. Rust proof long service life and easily clean.

Specification Parameter

Model	ZH-50
Packing speed	20-50 Cartons/min
Carton Size(Customizable )	L（40-125）mm×W（12-80）mm×H（12-80）mm
Carton gram requirements	250-350g/m3
Motor power	1.5KW
Power supply	Three phase 380V 50Hz
Machine noise	≤80dB
Air pressure	0.5-0.8 Mpa
Air consumption	150L/min
Size	1100×1500×1900 mm
Weight	250Kg

Product Application

Pharmaceutical Industry: Medicine Plate, Oral Liquid, Bottle, Vials, Bagged Granules, Paste, Ointment, Aerosol, etc.

Food Industry: Ice Cream, Egg Rolls, Bread, Biscuits, Eggs Pie, Bagged Coffee/Tea, Seasoning Bags, Milk Powder, etc.

Daily Industry: Toothpaste, Soap, Cosmetics, Facial Mask, Face Cream, Shoe Polish, Lipstick, Mosquito Coils, Fireworks, etc.

Hardware Electrical: Bearings, Energy-Saving Bulbs, Bulb, Switches, Sockets, Relays, Chargers, etc.

Auto Parts Industry: Spark Plugs, Filters, Piston Rings, Brake Pads, Car Bulbs, Automotive Electrical Appliances, etc.

Plastic Industry: Cling Film, Fresh Bag, Disposable Film Gloves, Plastic Products, Condoms and so on.

Entertainment Industry: Pens, Stapler, Staple, Indonesian, Glue, Modified Liquid, Poker, Puzzles, Toys, Handicrafts, Gifts, etc.

Living Paper: Paper Towels, Sanitary Napkins, Pads, Make-Up Cotton and so on.

Product Feature

1

With low cost and only require small area
2

It is suitable for various sizes of box
3

Short time to change mould
4

304 stainless steel case
5

Advanced PLC Control System

More Details

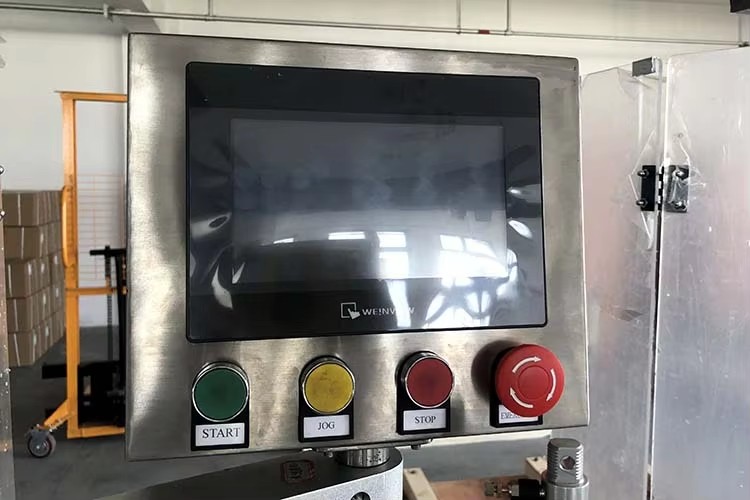

Touch screen

Advanced Siemens PLC control with touch screen operation function

More Details

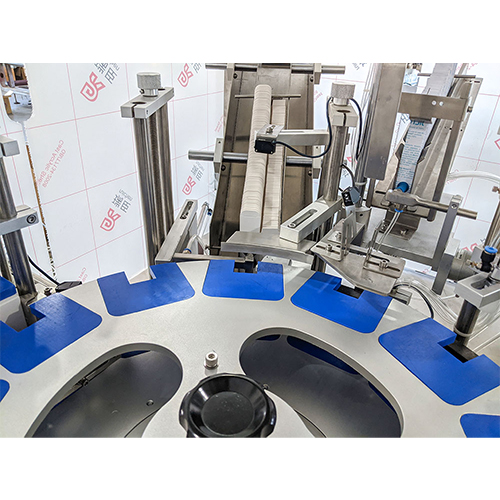

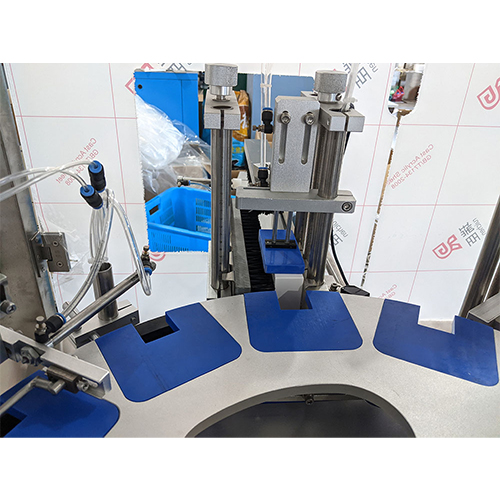

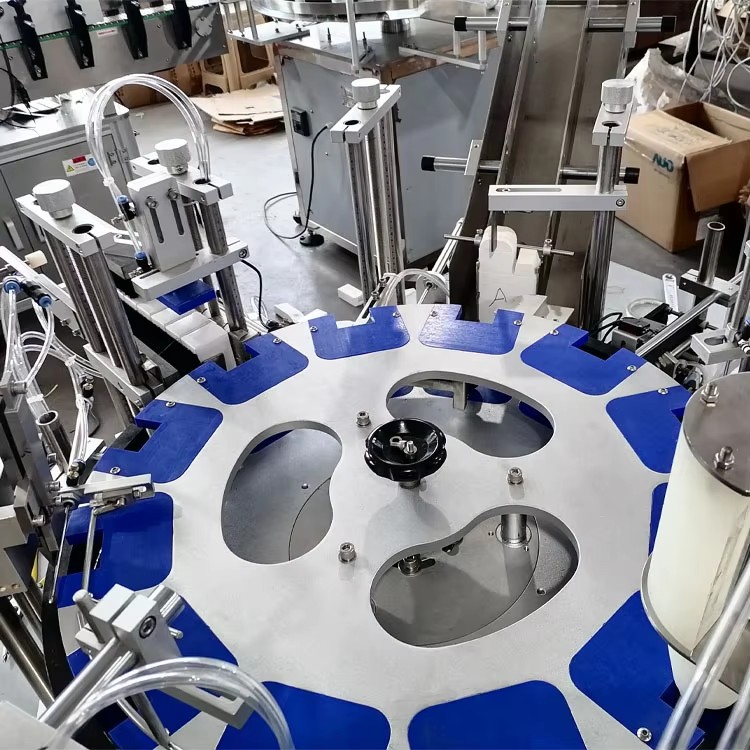

Turntable

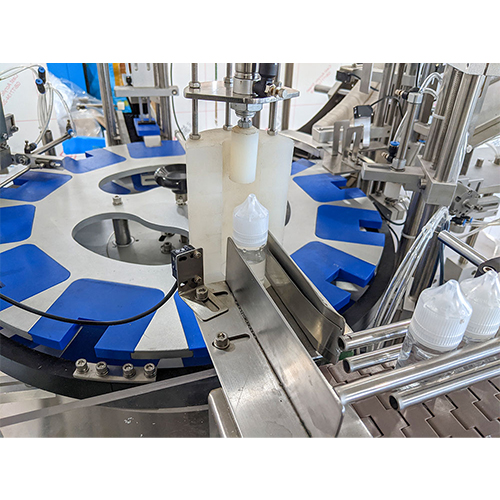

The product will automatically drop into box via star wheel and conveyor

More Details

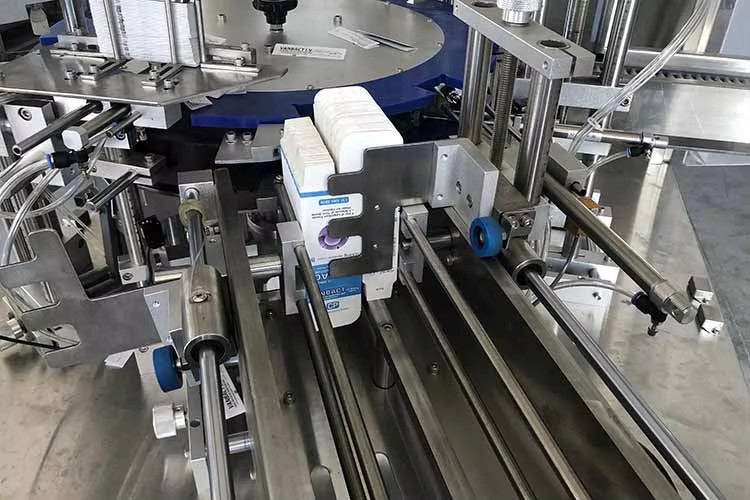

Access to the box

Carton feeding system, which realizes the function of adding new carton without stopping the machine.

More Details

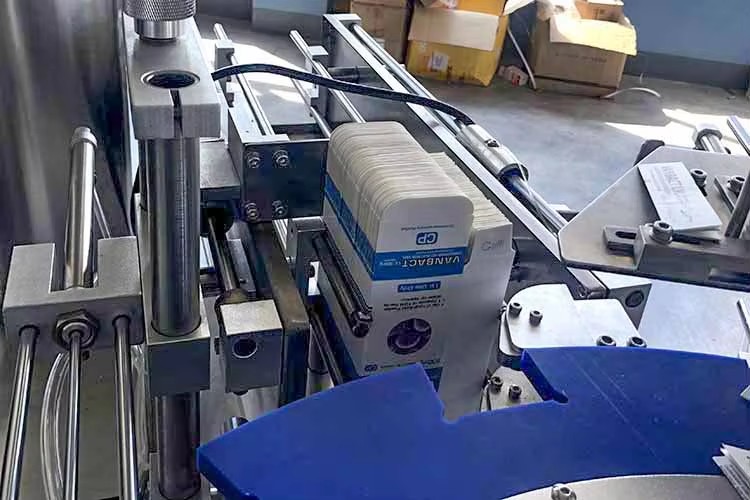

Open box

Carton feeding system, which realizes the function of adding new carton without stopping the machine.

More Details

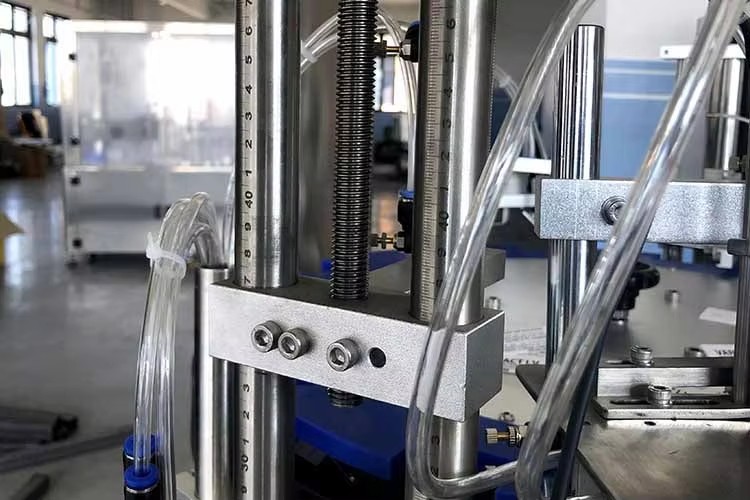

Station adjusting screw

Available optional functions: print production date, automatically add instructions, hot melt adhesive sealing device, automatic feeding device, etc.

More Details

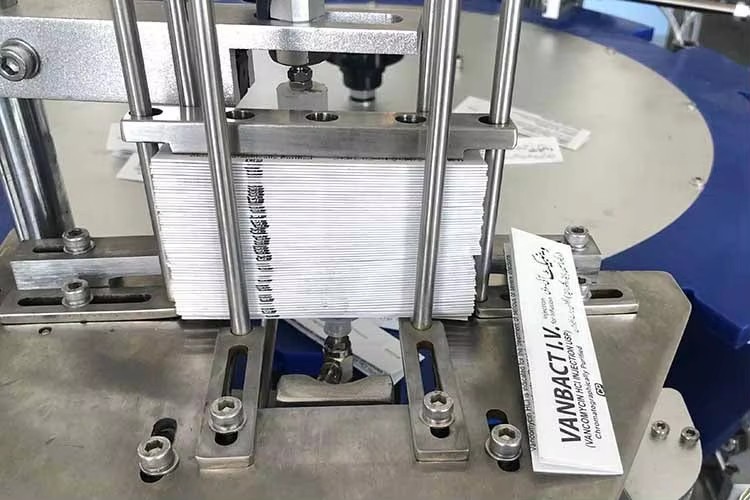

Instruction feeding station

Available optional functions: print production date, automatically add instructions, hot melt adhesive sealing device, automatic feeding device, etc.

ZH-50 Rotary Type Top Loading Cartoning Machine

Product Description

Specification Parameter

Product Application

Product Feature

More Details

Touch screen

More Details

Turntable

More Details

Access to the box

More Details

Open box

More Details

Station adjusting screw

More Details

Instruction feeding station
